Summary of Contents for Demountable Concepts Warehouse On Wheels

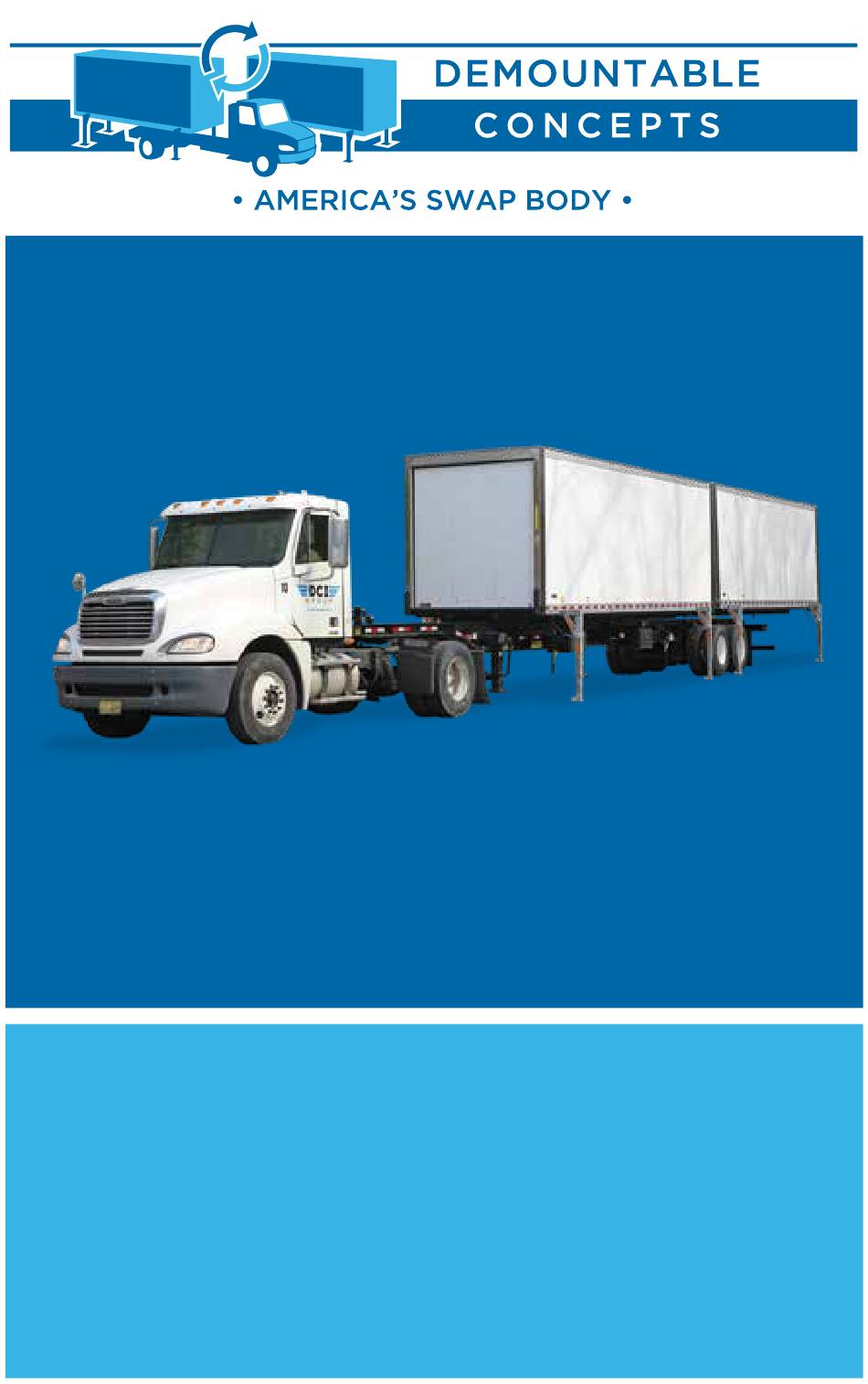

- Page 1 Warehouse On Wheels Quick Reference Guide Demountable Concepts, Inc. (856) 863-0900 LOCAL 200 Acorn Road (856) 863-6704 Glassboro, NJ 08028 demount.com 1-800-254-3643...
- Page 2 WARNING An improperly secured body that falls off a trailer can result in injury or death It is the driver’s responsibility to make sure all bodies are properly locked onto the trailer before each trip Be sure all people are clear of bodies when mounting and demounting Never drive on road with trailer in the fully raised or lowered position...
- Page 3 Demounting Bodies Demounting Bodies Set tractor brakes, put truck in neutral, release trailer brakes, increase idle Raise tractor air suspension SUSPENSION DOWN Check that tractor suspension is fully raised...
- Page 4 Demounting Bodies Unplug front light plug and insert into holder on trailer Unlock front body A. Remove key B. Push handle in C. Lower locking bar handle Lower road-side (R/S) center stop...
- Page 5 Questions? Call 1-800-254-3643 Raise trailer suspension SUSPENSION DOWN Unlock rear body A. Remove key B. Push handle in C. Lower locking bar handle Unplug front light plug and insert into holder on trailer...
- Page 6 Demounting Bodies Check trailer suspension fully raised Lower curb-side (C/S) center stop Set all legs from C/S front to R/S front - Unlock and remove chained pin from pin retainer...
- Page 7 Questions? Call 1-800-254-3643 Grab footpad ring and pull partially out Adjust lower leg height - Remove pin, slide leg out, insert pin into correct hole Pull leg the rest of the way out and lower to vertical position...
- Page 8 Demounting Bodies Push leg assembly into housing until the brace touches the body side rail Put chained pin through upper brace and leg Check to be sure all leg pins are secure and in the locked position...
- Page 9 Questions? Call 1-800-254-3643 Lower trailer suspension SUSPENSION DOWN DOWN Lower tractor suspension SUSPENSION DOWN DOWN Check clearance - Pull straight...
- Page 10 Mounting Bodies Mounting Bodies Be sure locking hooks are down and center stops are lowered Be sure tractor and trailer suspension is lowered SUSPENSION DOWN DOWN SUSPENSION DOWN Turn on flood lights - Switch located near glad-hand connections...
- Page 11 Questions? Call 1-800-254-3643 Back straight under bodies ● Get out and check alignment 2-3 times before backing all the way underneath ● Reposition trailer as needed ● Do not over steer ● Front stops must contact body Set tractor and trailer brakes - Do not raise suspension at...
- Page 12 Mounting Bodies Check that trailer is centered under bodies Raise both C/S and R/S center stops Raise trailer suspension fully - Confirm visually SUSPENSION DOWN SUSPENSION DOWN...
- Page 13 Questions? Call 1-800-254-3643 Apply trailer brake, release tractor brake Raise tractor suspension fully SUSPENSION DOWN Lock rear body A. Raise locking bar B. Insert safety key...
- Page 14 Mounting Bodies Lock front body A. Raise locking bar B. Insert safety key Store all legs from C/S front to R/S front - Remove chained pin from stabilizer brace Lift entire leg to horizontal position and slide partially into the leg housing...
- Page 15 Mounting Bodies Remove lower leg pin, slide in inner leg and insert pin through inner and outer leg at last hole Push leg completely into housing – Keep fingers clear Insert pin through leg retainers on body and loop on foot pad...
- Page 16 Mounting Bodies Flip lock on pin into place Check to be sure all legs are locked into place Plug in front AND rear light plug Set trailer to ride height SUSPENSION DOWN SUSPENSION DOWN...
- Page 17 Questions? Call 1-800-254-3643 Visually confirm all bodies are properly locked on Turn off flood lights Set tractor to ride height SUSPENSION DOWN SUSPENSION DOWN...
- Page 18 Daily Trailer and Body Inspection In Addition to the Federal Pre-Trip Inspection Report BE SURE that all center stops are fully raised and pinned securely at the upper setting Pin in upper setting secured with snap lock and chain Visually inspect each set of hooks BE SURE that all legs to confirm that bodies are properly are properly stowed...
- Page 19 Questions? Call 1-800-254-3643 BE SURE that all light plugs are plugged into each body’s receptacle Detach light plug from holder and connect to rear body receptacle Detach light plug from holder and connect to front body receptacle BE SURE locking pin is fully inserted and locking handle and alarm switch are intact and secure Locking pin fully engaged to alarm switch - Ensures locking...
- Page 20 Training videos available online at demount.com/videos Contact Info: US, Canada & Mexico Demountable Concepts, Inc. 200 Acorn Road Glassboro, NJ 08028 USA demount.com Toll Free: (800) 254-3643 Local: (856) 863-0900 Fax: (856) 863-6704 E-mail: sales@demount.com Rev. 1/19/18...
