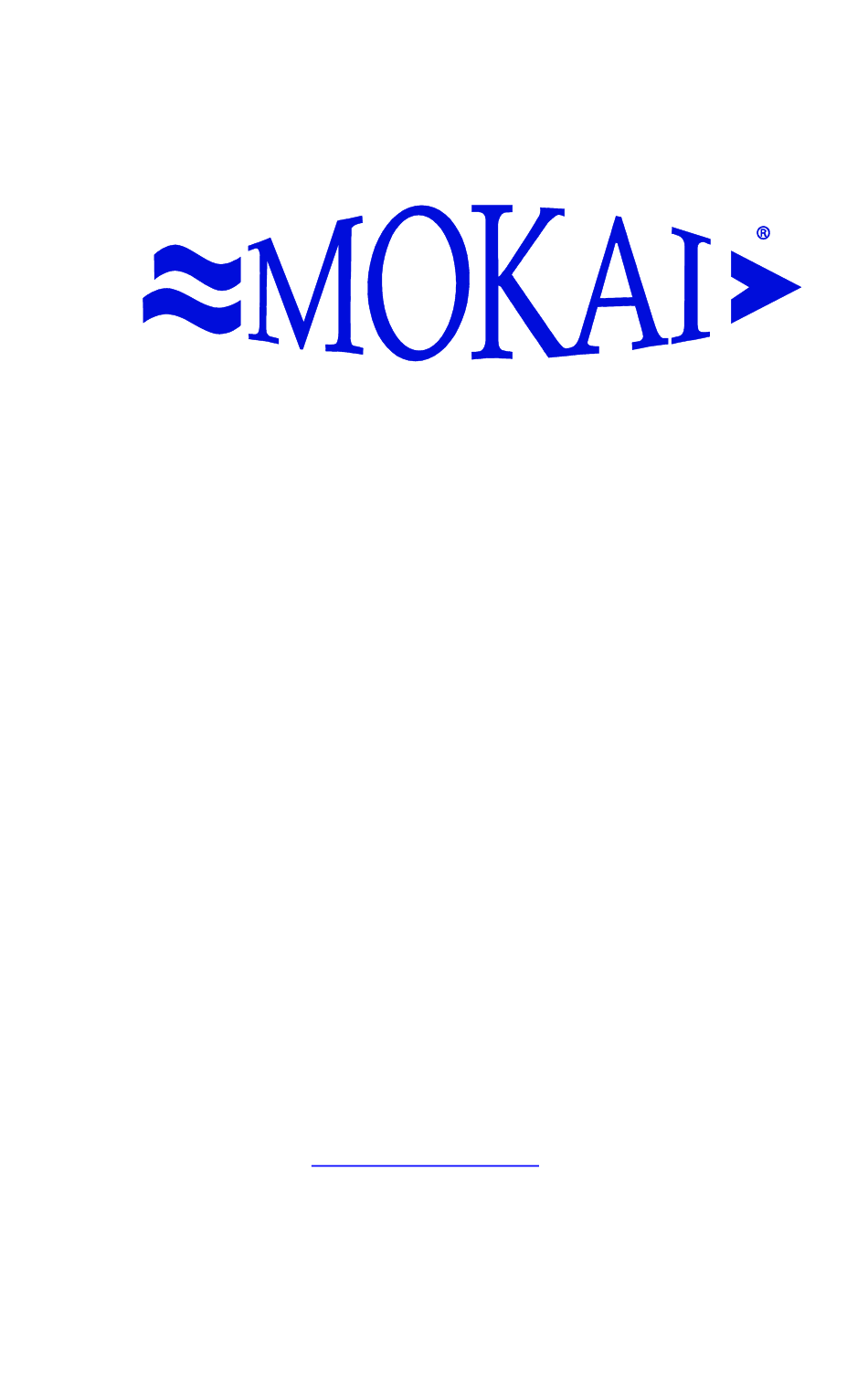

- Page 1 OWNER'S MANUAL ES-KAPE Mokai Manufacturing, Inc. 13 Jeanne Drive Newburgh, NY 12550 (845) 566-8287 (888) 50-MOKAI fax: (845) 566-8297 www.MOKAI.com Rev: 052019...
- Page 2 This pages is intentionally left blank...
-
Page 3: Table Of Contents
Introduction Owners Satisfaction Owner/Operator Responsibilities State and Federal Regulations Safety Equipment Factory Warranty Statement MOKAI watercraft – Material and Mechanical Components General Information Assembling the MOKAI ES-Kape Bow Section Engine Bay to Cockpit Section Electrical Connections: 12v Battery Seat and Foot Brace:... -
Page 4: Introduction
MOKAI to the highest standards available. We are certain you will be pleased with your decision. We want to help you get the best results from your new MOKAI. This manual is provided to aid you in the safe and reliable operation of your watercraft. -
Page 5: Factory Warranty Statement
No person is authorized to offer any other warranty on behalf of MOKAI unless made in writing and signed by an officer of MOKAI Manufacturing Inc. -
Page 6: General Information
General Information The Hull and Engine of your MOKAI watercraft are identified by serial numbers. These numbers are unique to your boat and may be required for warranty, registration or to track in the event of theft. -
Page 7: Assembling The Mokai Es-Kape
Assembling the MOKAI ES-Kape Bow Section • Identify the (3) Bow Spools located on the Bow Bulkhead. • Align the Bow Spools with the Front Cockpit Bulkhead receiving keyholes. Allow Bow to drop into position. (note it will not be fully secured at this step) •... -
Page 8: Engine Bay To Cockpit Section
NEVER PULL FROM WIRES. 12v Battery The Battery is located in the Engine Bay. To remove battery, disconnect battery cable and release elastic strap. Do not operate MOKAI without battery. Damage will occur to Electronics. Disconnect when not in use for prolonged periods. -
Page 9: Seat And Foot Brace
Seat and Foot Brace: • Install Seat: Place seat into cockpit. Slide seat back so seat pins slide into bushings. Secure cotter pin to each seat pin. • Retain cotter pins in storage holes located above bushings when seat is removed. •... -
Page 10: Joy Stick Control Box
Joy Stick Control Box: To Start Engine: Turn Ignition Key to START position and release. (Safety lanyard key must be in to start). To Stop Engine: While the Engine can be stopped various ways we recommend switching the Ignition Key to OFF. You can stop the boat in an emergency by pressing down on the RED Safety kill switch located on starboard side under deck hull. - Page 11 MOKAI is controlled using a 2 axis joystick located on the starboard side. Throttle is actuated by pushing forward. The joystick will return to idle at the zero position when released. This same joystick is pushed left or right to direct the steering nozzle left or right (respectively).
-
Page 12: Pump Installation And Removal
4. Use alignment pin for proper orientation when reinstalling. Fuel Tank and Carbon Canister The capacity of the MOKAI fuel tank is 3.6 gallons. This tank is equipped with a carbon canister to prevent hydrocarbon vapors into the atmosphere. The Fuel Tank on the MOKAI ES-Kape is not portable. -
Page 13: Operating Information And Pre-Ride Check
MOKAI. Shallow Water Operation We recommend starting the MOKAI in 12 inches of clear water. The draft is 4-6 inches. Every MOKAI is equipped with an intake grate to protect debris from entering the jet pump and causing damage when operating. Owner assumes all liability for damage when operating with removed or altered grate. -
Page 14: Mokai Maintenance
Cleaning and Care It is best to store your MOKAI out of direct sunlight on a flat surface. Clean with soapy water or spot clean with a Windex™ type product. There is a drain plug located starboard side of cockpit section as well as the one in the engine bay. -
Page 15: Engine Storage/Transport
Engine Storage/Transport It is important for the engine to remain upright during storage or transport. Tipping the engine more than 30 degrees (carburetor moving towards the floor) for a prolong period of time will result in oil seeping past the reed valve in the value cover. -
Page 16: Engine Maintenance
* Note: As to the procedures for these items, please refer to the Service manual or consult your nearest Kohler authorized service dealer. **Note: Spark plug wrench supplied. *** Note: DO NOT Oil air filter for use in MOKAI watercraft. -
Page 17: Specifications
Specifications: KOHLER, CH395: 9.5 hp Engine: (See Manual for additional information) Electric Start, 10 amp charging system MOKAI Manufacturing Pump Propulsion System: Axial Flow Jet Drive Drive System: Gear box, clutch Coupling Two Axis Joy Stick, Linear Actuated Steering ... -
Page 18: Troubleshooting
Weeds tangled around Remove jet drive (on land) drive shaft remove tangled debris, reinstall pump & restart. Damage to drive shaft or Inspect. Call MOKAI coupler Manufacturing Pump inefficiency Inspect (green) wear ring. located at the stern where the jet Replace. -
Page 19: Helpful Tips
See page 10 for additional information. Muffler Muffler will be after operation. Do not touch injury/ burns can result! Please phone MOKAI Manufacturing for help with any other issues: 888-50-MOKAI (888-506-6524)
