Summary of Contents for ECONOLITE ZincBlue2 UPS 1000W

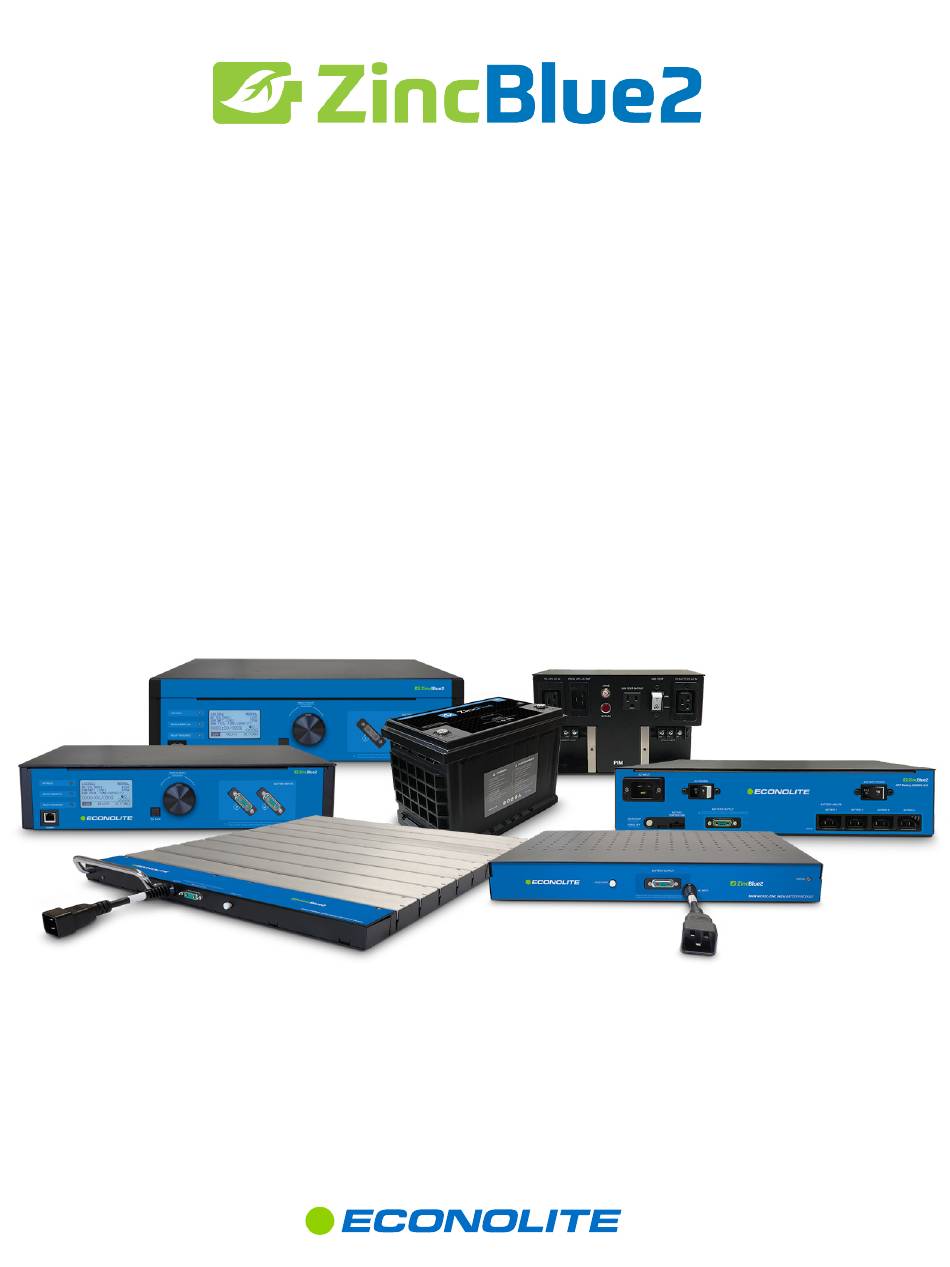

- Page 1 ZincBlue2 Manual...
- Page 2 This user manual provides the essential information you need in order to get the most from your ZincBlue2 Uninterruptible Power Supply & ZincBlue2 Software. Copyright © 2021 Econolite All rights reserved.
-
Page 3: Table Of Contents
Installation Features Installation Safety Browsers Tools Needed Network Configuration Installing the UPS Windows Configuration Installing ZincBlue2 UPS 1000W/1500W Mac Configuration Installing the Batteries Login Installing ZincBlue2 Battery Panel 500W Home Screen Installing ZincBlue2 Battery Module 500W System Log Tab Installing the ZincBlue2 XRT Battery 3600Wh IMS... - Page 4 Câble d'interconnexion numérique et d'alimentation en courant Settings Tab: Messaging Settings continu Settings Tab: SMTP Notification Verrouillage du câble d'interconnexion d'alimentation en courant ZincBlue2 UPS 1000W Block Diagram alternatif ZincBlue2 Battery Panel and Module Block Diagram Câble d'alimentation XRT CA ZincBlue2 PIM Block Diagram Câble du capteur de température de la batterie...
-
Page 5: Introduction
Proprietary Information This document contains information that is confidential and proprietary to Econolite, it may not be reproduced, distributed, or translated in any other language, in whole or in part, without written approval from Econolite and/or its associated partners. Copyright... -
Page 6: Warranty
Warranty Econolite's ZincBlue2 is covered by Econolite's Limited Warranty. Please refer to the Limited Warranty in the back of the manual. About this Manual This manual contains information to help owners and operators understand how to safely and properly prepare, install and operate the Econolite ZincBlue2. -
Page 7: Safety Symbols
Econolite ZincBlue2 Uninterruptible Power Supplies (ZincBlue2) are carefully designed and tested to ensure that they are safe and reliable products when used properly. To ensure the safe and proper use of Econolite's ZincBlue2, the following symbols are used on the product and throughout this manual. Operators, buyers, and technicians must observe each occurrence of these symbols as they appear throughout the document. -
Page 8: Warnings And Cautions
Output Waveform Pure Sinewave UPS Efficiency 0.97 Environmental ZincBlue2 UPS 1000W operating temperature range -37°C to 74°C (-34°F to 165°F) Regulatory Compliance ZincBlue2 UPS 1000W UL 1778 and CSA C22.2 No. 107.3 compliant in a maximum ambient environment of 40°C... -
Page 9: French
Pour garantir une utilisation sûre et correcte de l'ZincBlue2 de Econolite, les symboles suivants sont utilisés sur le produit et tout au long de ce manuel. Les opérateurs, les acheteurs et les techniciens doivent observer chaque occurrence de ces symboles tels qu'ils apparaissent dans le document. -
Page 10: Avertissements Et Mises En Garde
Output Waveform Pure Sinewave UPS Efficiency 0.97 Environmental ZincBlue2 UPS 1000W operating temperature range -37°C to 74°C (-34°F to 165°F) Regulatory Compliance ZincBlue2 UPS 1000W UL 1778 and CSA C22.2 No. 107.3 compliant in a maximum ambient environment of 40°C Panneau / module de batteries L'installation et l'entretien des batteries doivent être effectués ou supervisés par un personnel connaissant les... -
Page 11: Ups
UPS Introduction The ZincBlue2 UPS 1000W and ZincBlue2 UPS 1500W (ZincBlue2 UPS 1000W/1500W) are 1000 Watt and 1500 Watt UPS systems that utilizes an Intelligent Two Stage Operation with an oscilloscope function and is developed to operate with nickel-zinc batteries. It is designed for installation in all signalized and ITS cabinets and can be rack mounted in 2U - 19'' EIA racks or shelf mounted. -
Page 12: Physical Characteristics
Connection between UPS AC Input from PIM via the provided Locking AC Power Interconnect Cable. Physical Characteristics ……………3.7”H x 17”W (19” w/ mounting) x 11.6”D Weight 12 lbs. ZincBlue2 UPS 1000W ……………4.6”H x 17”W (19” w/ mounting) x 11.6”D Weight 14 lbs. ZincBlue2 UPS 1500W... -
Page 13: Batteries
The ZincBlue2 Batteries are available in two form factors, the ZincBlue2 Battery Panel and ZincBlue2 Battery Module. Both are 500W form factors operating with nickel-zinc batteries and an intelligent battery management system. The batteries can be charged with either the ZincBlue2 UPS 1000W/1500W or the Wall Charging Adapter. ZincBlue2 Battery Panel 500W ZincBlue2 Battery Module 500W ZincBlue2 Battery Panel &... -
Page 14: Physical Characteristics
ZincBlue2 Battery Module 500W....2.3"H x 17"W (19” w/ mounting) x 12.1"D 21.1lbs. ZIncBlue2 XRT Battery Introduction The Econolite ZincBlue2 XRT Battery 3600Wh (ZincBlue2 XRT) is available in one form factor and comes with the ZincBlue2 XRT Battery 3600Wh IMS and four monobloc nickel-zinc batteries. -
Page 15: Physical Characteristics
BATTERY INPUTS Four individual connection points between the monobloc nickel-zinc batteries and ZincBlue2 XRT via the provided DC Power Interconnect Cable. BATTERY STATUS Four multi-color LED indicators that provide individual monobloc nickel-zinc battery status: • Green (Solid) - Backup Mode •... -
Page 16: French
FRENCH Batteries Présentation du panneau et du module de la batterie du l'ZincBlue2 Les batteries de l'ZincBlue2 sont disponibles sous deux formes, le panneau de batteries de l'ZincBlue2 et le module de batteries de l'ZincBlue2. Tous deux sont des facteurs de forme de 500W fonctionnant avec des batteries nickel-zinc et un système intelligent de gestion de batteries. -
Page 17: Caractéristiques Physiques
Pour l'échange à chaud en mode de décharge, vous devez faire/voir ce qui suit: 1. Connecter la nouvelle batterie au contrôleur via le câble d'interconnexion CC. Le voyant de la nouvelle batterie devrait s'allumer (vert) et être reconnu par le contrôleur. 2. -
Page 18: Power Interface Module (Pim)
• In the OFF position the AC from utility input is removed from the ZincBlue2 UPS 1000W/1500W and backup mode will be active. Note: The UPS TEST switch is NOT used to check runtime as it does not disconnect AC POWER from the Battery Panel/Module. -
Page 19: Installation
Save the packaging material in the event a return is needed. Econolite does not warrant against product damage from return shipping unless it is shipped in the original packaging. -
Page 20: Installing The Ups
NEMA traffic cabinets. The ZincBlue2 UPS 1000W/1500W has a TILT SWITCH function which comes disabled and is a feature that can be enabled in the field via the UPS or ZincBlue2 Software web application. The ZincBlue2 UPS 1000W/1500W must be mounted horizontally for proper TILT SWITCH functionality. -
Page 21: Installing The Batteries
Installing the Batteries The ZincBlue2 Battery Panel 500W and ZincBlue2 Battery Module 500W are designed to be installed inside primary traffic cabinets. The ZincBlue2 Battery Panel 500W is compatible with 170/2070 33X series traffic cabinets. ZincBlue2 Battery Module is compatible with 170/2070 33X series and NEMA traffic cabinets. Installing ZincBlue2 Battery Panel 500W The ZincBlue2 Battery Panel 500W is not designed to be rack or shelf mounted. -
Page 22: Installing Zincblue2 Battery Module 500W
Installing ZincBlue2 Battery Module 500W The ZincBlue2 Battery Module is installed by shelf mounting or rack mounting. For shelf installation, no other hard- ware is needed. For rack installation use the provided brackets (2) and screws (12) as shown in the figure below. Battery Module Rack Mount Installation Battery Module Rack Mount Bracket Installation (4QTY) Screw 10-32 x 3/8"... -
Page 23: French
échelles correctement mises en place et sans vous aider à soulever et à placer l'équipement. Conserver le matériel d'emballage au cas où un retour serait nécessaire. Econolite n'offre aucune garantie contre les dommages causés par le retour du produit, sauf s'il est expédié dans son emballage d'origine. -
Page 24: Installer Les Batteries
Installer les batteries Le panneau de batterie ZincBlue2 500W et le module de batterie ZincBlue2 500W sont conçus pour être installés dans des armoires de circulation primaires. Le panneau de batterie UPStealth 2 500W est compatible avec les armoires de circulation de la série 170/2070 33X. -
Page 25: Wiring The System
QTY: 1 | Length: 6ft Cable used to charge ZincBlue2 XRT via wall outlet (20Amp). Allows charging without PIM and ZincBlue2 UPS 1000W/1500W. Also required when more than one ZincBlue2 XRT is being used. Battery Temperature Sensor Cable QTY: 1 | Length: 6ft Battery Temperature Sensor for measuring temperature of the monobloc nickel-zinc batteries. -
Page 26: Wiring The Ups With Pim
Ensure the CABINET LOAD, UTILITY INPUT, line and neutral are completely isolated from each other. • Ensure that the maximum peak load does not exceed the rating of the ZincBlue2 UPS 1000W/1500W. To prevent accidental shocks to personnel or damage to equipment, verify that the line, neutral, and ground wires to and from the PIM are going to the correct locations. - Page 27 Communications and I/O 1. Connect to the ethernet port of the UPS (If being used. Ethernet cable is not provided by Econolite). 2. Connect to the desired RELAY CONTACT TERMINAL(S) on the UPS (If being used. Wiring is not provided by Econolite).
-
Page 28: Connecting Battery Panel Or Battery Module To Ups And Pim
Connecting Battery Panel or Battery Module to UPS and PIM ONLY ZincFive batteries may be used with the UPS. Please refer to the UPS Overview for certified batteries. To connect the battery to the UPS, follow these steps: 1. Connect the UPStealth 2 Battery Panel or Battery Module BATTERY OUTPUT to the BATTERY INPUT of the UPStealth 2 UPS 1000W/1500W via the provided Digital and DC Power Interconnect Cable. -
Page 29: Zincblue2 Wiring Diagram
ZincBlue2 Wiring Diagram ZincBlue2 Wiring Diagram ZincBlue2 User Manual | 26... -
Page 30: French
QTÉ : 1 | Longueur : 6 pi. Câble utilisé pour charger ZincBlue2 XRT via une prise murale (20Amp). Permet de charger sans MIA et ZincBlue2 UPS 1000W/1500W. Également requis lorsque plus d'un ZincBlue2 XRT est utilisé. Câble du capteur de température de la batterie QTÉ... -
Page 31: 28 Câblage De L'asc Avec Le Mia
Câblage de l'ASC avec le MIA Pour brancher électriquement l'ASC et l'unité MIA, suivre ces étapes en coupant l'alimentation électrique au moment de l'installation : 1. Le MIA incorpore les points de connexion des conduits ½ po pour faciliter les connexions des conduits de CHARGE DE CABINET et d'ENTRÉE UTILITAIRE. -
Page 32: Communications Et I/O
Communications et I/O 1. Se connecter au port ethernet de l'ASC (si c'est utilisé. Le câble Ethernet n'est pas fourni par Econolite). 2. Se connecter aux TERMINAUX de CONTACT RELAIS souhaité(s) sur l'ASC (si utilisé. Le câblage n'est pas fourni par Econolite). -
Page 33: Connexion D'un Panneau De Batterie Ou D'un Module De Batterie À Une Asc Et À Un Mia
Connexion d'un panneau de batterie ou d'un module de batterie à une ASC et à un MIA SEULEMENT les batteries Econolite peuvent être utilisées avec l'ASC. Se référer à l'aperçu de l'ASC pour les batteries certifiées. Pour connecter la batterie à l'onduleur, suivre les étapes suivantes : 1. -
Page 34: Schéma De Câblage D'zincblue2
Schéma de câblage d'ZincBlue2 ZincBlue2 Wiring Diagram 31 | ZincBlue2 User Manual... -
Page 35: Wiring The Zincblue2 Xrt
XRT AC Power Cable. Additional ZincBlue2 XRT Battery 3600Wh units cannot be daisy-chain connected to the PIM. The ZincBlue2 UPS 1000W/1500W can support the connection of up to 6 ZincBlue2 XRT Battery 3600Wh units via the Digital and DC power Interconnect Cable. Only the AC power input to the ZincBlue2 XRT Battery 3600Wh requires separate protected 20A circuits. -
Page 36: Zincblue2 Xrt Wiring Diagram
ZincBlue2 XRT Wiring Diagram ZincBlue2 XRT Wiring Diagram 33 | ZincBlue2 User Manual... -
Page 37: Zincblue2 Maintenance
Front Panel Overview Description: The front panel of the ZincBlue2 UPS 1000W/1500W includes a 128x64 pixel monochrome LCD screen, a Navigation Dial, and a single push button. (The numbering system below correlates with the UPS Front Panel Overview on the next page) 1. -
Page 38: Status: Normal
Notes: The ZincBlue2 UPS 1000W/1500W will issue a single beep each time you press the BACK button, rotate the Naviga- tion Dial, and or press the Navigation Dial. UPS Front Panel Overview STATUS: NORMAL Description: This is the ZincBlue2 UPS 1000W/1500W main status display, and the home screen for the UPS. -
Page 39: Status: Backup
STATUS: BACKUP Description: If the ZincBlue2 UPS 1000W/1500W switches from Utility power to Battery power, the top line of the main status display will be STATUS: BACKUP. This indicates that the ZincBlue2 is using battery power. Power Failure: Backup Mode Notes: STATUS: BACKUP UNAVAILABLE The UPS can be in a BACKUP UNAVAILABLE status. -
Page 40: Status System Log
STATUS SYSTEM LOG Description: View the system logs, from newest to oldest. These are diagnostic logs that are automatically recorded by the ZincBlue2 UPS 1000W/1500W. On The Display: • LOG #: This displays the log number. Logs are numbered sequentially. •... -
Page 41: Status Relay Status
STATUS RELAY STATUS Description: View the setting of all eight relays. An empty circle indicates that the relay is OFF. A filled-in circle to the right of a relay indicates that the relay is ON. The relay status will continually be updated as long as the screen is visible. Press Back to return to the Status Screen. -
Page 42: Status Settings
Description: This is the main Settings Menu. All ZincBlue2 UPS 1000W/1500W configuration options can be reached from this display, except for access to system logs and the relay status. Those two items are accessible through the main status display. -
Page 43: Status Settings Set Time/Date
STATUS SETTINGS SET TIME/DATE Description: Use this screen to set or view the system time and date, as well as control daylight-saving time adjustment. All events and time-based relay triggers are time-stamped with the system time and date. On The Display: •... -
Page 44: Status Settings Set Time/Date Set Time Format
STATUS SETTINGS SET TIME/DATE SET TIME FORMAT Description: Use this screen to choose if the system time is displayed in 12-hour or 24-hour format. On The Display: • 24 HOUR FORMAT: Allows you to choose 24-hour time display. Select this option with the Navigation Dial and then press the dial. -
Page 45: Status Settings Set Time/Date Set The Time
STATUS SETTINGS SET TIME/DATE SET THE TIME Description: Use this screen to enter the time. To Set the Time: • Press the Navigation Dial to select hours, rotate the dial to increment or decrement the hours, and then press the dial to set the hours value and select the minutes. -
Page 46: Status Settings Set Time/Date Daylight Saving Time
STATUS SETTINGS SET TIME/DATE DAYLIGHT SAVING TIME Description: Use this screen to choose if system time automatically adjusts for daylight saving time. On The Display: • TURN ON DST: The system clock will automatically adjust for daylight saving time. Select this option with the Navigation Dial and then press the dial. -
Page 47: Status Settings Set Time/Date Set Date Format
STATUS SETTINGS SET TIME/DATE SET DATE FORMAT Description: Use this screen to select the system date display format. On The Display: • MM-DD-YY FORMAT: Allows you to display the date using the month-day-year format. Select this option with the Navigation Dial and then press the dial. -
Page 48: Set The Date
STATUS SETTINGS SET TIME/DATE SET DATE Description: Use this screen to enter the date. The order that you enter the values depends upon your selected date format. To Set the Date in MM-DD-YY Format: • Press the Navigation Dial to select the month number, rotate the dial to increment or decrement the month (01-12), and then press the dial to set the month value and select the day. -
Page 49: Status Settings Events List
Description: Use this screen to create new events or display or edit existing events. The ZincBlue2 UPS 1000W/1500W relay setup and trigger- ing includes the ability to program Boolean AND as well as OR functions using a single relay. -
Page 50: Define Event
STATUS SETTINGS EVENTS LIST DEFINE EVENT Description: Use this screen to modify or delete existing events. On The Display: • POWER FAILURE: Allows you to turn on or off the Power Fail trigger or set a Power Resume trigger for when AC is restored. -
Page 51: Define Event
STATUS SETTINGS EVENTS LIST DEFINE EVENT POWER FAILURE Description: Use this screen to enable or disable the utility power fail trigger. You can also specify a delay time after the power failure event occurs before this event outcome is triggered. On The Display: •... -
Page 52: Status Settings Events List Define Event System Fault
STATUS SETTINGS EVENTS LIST DEFINE EVENT SYSTEM FAULT Description: Enable the trigger which is armed whenever a System Fault is detect. System Faults turns on the Red LED on the UPS. Refer to the ZincBlue2 Software section of this manual for all possible events recorded by the ZincBlue2 Software. On The Display: •... -
Page 53: Status Settings Events List Define Event Time
STATUS SETTINGS EVENTS LIST DEFINE EVENT TIME Description: Use this screen to set a time-of-day range for which this event will be triggered. On The Display: • START: Allows you to specify the starting time, in 5-minute increments. Use the Navigation Dial to highlight START, rotate the dial to select the start time, and then press the dial to set the value. -
Page 54: Status Settings Events List Define Event Battery Capactiy
STATUS SETTINGS EVENTS LIST DEFINE EVENT BATTERY CAPACTIY Description: Use this screen to set a battery capacity lower limit for which this event will be triggered. On The Display: • BATTERY CAPACITY: Allows you to specify the minimum battery capacity, from 0% to 100% in 10-percent (10%) increments, for which this trigger will be TRUE. -
Page 55: Status Settings Events Define Event Relay
STATUS SETTINGS EVENTS DEFINE EVENT RELAY Description: Use this screen to select a relay to activate if all configured triggers are TRUE. This is the only available outcome for an event created through the LCD interface on the ZincBlue2. You must use the ZincBlue2 Software to configure SMTP or SNMP notifications. -
Page 56: Event Save Confirmation
EVENT SAVE CONFIRMATION Description: Use this screen to save a newly defined or changed event. After pressing the BACK button from the DEFINE EVENT screen, the EVENT SAVE CONFIRMATION screen will prompt you to save your event. On This Display: •... -
Page 57: Status Settings Power Fail Thresholds
Use this screen to configure various power fail criteria, including minimum utility voltage, maximum utility voltage, sensitivity level to utility power fluctuations from ideal power, and the minimum length of time that utility power quality must be within acceptable power quality parameters before the ZincBlue2 UPS 1000W/1500W unit comes out of backup mode. On The Display: •... -
Page 58: Status Settings Power Fail Thresholds Set Low Threshold
Description: Use this screen to configure the minimum utility voltage before the ZincBlue2 UPS 1000W/1500W will switch to battery power. On The Display: • LOW THRESHOLD: Allows you to specify the minimum utility AC voltage before the ZincBlue2 will switch to battery power. -
Page 59: Status Settings Power Fail Thresholds Set High Threshold
Description: Use this screen to configure the maximum utility voltage before the ZincBlue2 UPS 1000W/1500W will switch to battery power. On The Display: • HIGH THRESHOLD: Allows you to specify the maximum utility AC voltage before the ZincBlue2 will switch to battery power. -
Page 60: Status Settings Power Fail Thresholds Set Enhanced Sensitivity
Description: Use this screen to configure the sensitivity to utility power quality before the ZincBlue2 UPS 1000W/1500W will switch to battery power. On The Display: • ENHANCED SENSITIVITY: Allows you to increase the sensitivity to variance of the utility waveform before the ZincBlue2 will switch to battery power. -
Page 61: Status Settings Power Fail Thresholds Line
STATUS SETTINGS POWER FAIL THRESHOLDS LINE QUALIFY TIME Description: Use this screen to configure the amount of time that utility power must be within power quality parameters before the unit switches from battery power back to utility power. This time may protect your equipment from rapid power cycling, noisy power, or power frequency mismatches after a utility power failure. -
Page 62: Status Settings Network
• Press the BACK button when you are finished. Notes: • For your security, Econolite strongly recommends that you change the default IP address to a value that is unique to your network. Network Status 59 | ZincBlue2 User Manual... -
Page 63: Status Settings Additional Settings System Resets
Description: Use this screen to reset the ZincBlue2 UPS 1000W/1500W, its configuration data, and/or its firmware. On The Display: • CONFIG DATA ONLY: Resets the ZincBlue2 configuration data to factory default values and reboots the system. You will be presented with a confirmation screen after selecting this option. -
Page 64: Status Settings Additional Settings Tilt Enable/Disable
Description: Use this screen to enable or disable the Tilt Switch function of the ZincBlue2 UPS 1000W/1500W. On The Display: TILT OFF: The system is factory programmed to have the Tilt Switch disabled(off ), which is displayed on the screen. -
Page 65: Status Settings Additional Settings About
STATUS SETTINGS ADDITIONAL SETTINGS ABOUT Description: Use this screen to display the firmware version and whether the Tilt Switch function if avilable. On The Display: • FW REVISION: Displays the current firmware version. • TILT SWITCH AVAILABLE: Displays on screen if enabled. •... -
Page 66: Zincblue2 Software
The ZincBlue2 Software is used to remotely manage and monitor the status of an individual ZincBlue2 inside your network of traffic cabinets. You can access any ZincBlue2 UPS 1000W/1500W by entering its IP Address (see "Network Settings ") into the address field of an internet browser window. You must be on the same network as the ZincBlue2. -
Page 67: Browsers
To connect to the ZincBlue2 Software, you will need to configure your computers Network settings. Below are instruc- tions on how to connect to the web server in the ZincBlue2 UPS 1000W/1500W with your Windows or Mac computer. Windows Configuration •... -
Page 68: Login
IMPORTANT: Each ZincBlue2 comes with the preset username admin and the preset password user. System will force a password change on 1st login. When you are configuring your ZincBlue2 Software, Econolite recommends going into the User Settings page under the System tab to create a new password. -
Page 69: Home Screen
Home Screen Once you are logged in and connected to a ZincBlue2, the software will bring up the Home screen. This is your navigation center for monitoring and managing the status of your ZincBlue2. At the top right corner of the Home page is a status display with a real-time view of the system voltage, load, and battery status. -
Page 70: System Log Tab
System Log Tab The System Log tab presents a list of power events that have taken place in the traffic cabinet. For each event, the main view lists the event's log number, the event source, a time stamp showing when the event occurred, an error message, the system ID, and a link to a waveform view, if one exists. -
Page 71: List Of Event Types
• To download a copy of the system log, click on the Export button. • To view the waveform at the time an event occurred, if available, select that event row and click on the View Waveform button that appears to the right of the system id column. Below is a table outlining all possible events recorded by the ZincBlue2: Category Log Message... -
Page 72: Relay Status Tab
Relay Status Tab The Relay Status tab shows the status of the eight user programmable relays on the UPS, indicating whether each is on or off. Relay Status Tab 69 | ZincBlue2 User Manual... -
Page 73: Events Tab
Events Tab The Events tab allows you to create, edit, or delete events that control operation of the ZincBlue2. Event Tab The tab displays a list of Events and clickable actions like Add Event and Delete Event buttons, and No Event Configured. -
Page 74: Event Tab: Create New Event
To create a new event, click on the Add Event button, which will open an event setup wizard: Event Tab: Create New Event First, you will be asked to enter a name for the event. Event names are limited to 25 characters, and there are no restrictions on which characters you can use. -
Page 75: Settings Tab
• Enable Tilt Switch - If enabled and the ZincBlue2 UPS 1000W/1500W exceeds 15 degrees from level, the devices Tilt Switch will become active and will disable the battery bus. The ZincBlue2 UPS 1000W/1500W status screen will read TILT ERROR and the red UPS FAULT status light will be on. -
Page 76: Network Settings Page
Settings Tab Network Settings Page The Network Settings page is used to view and specify the ZincBlue2 network address and other settings. Settings Tab: Network Settings • Static IP Address: Sets the IP address for this ZincBlue2. The default IP address is 192.168.1.51. Typically, the system manager will set up a spreadsheet with live links to the unique IP Addresses for each ZincBlue2, making it easy for users to log in to a specific ZincBlue2. -
Page 77: Firmware Settings Page
To update the Firmware and Software for ZincBlue2 visit the Econolite Support Page (One Stop Shop) at www.econolite.com/support. The update and other ZincBlue related documents are found under Cabinets in the Product Resource Library section. -
Page 78: Time Settings Page
Settings Tab Time Settings Page The Time page is used to set the system time and date for a ZincBlue2. Time must be set to accurately record events. Settings Tab: Time Settings The UPS is set with a 24-hour clock. •... -
Page 79: User Settings Page
Settings Tab User Settings Page The User Settings pages is used to set the system password. Settings Tab: User Settings All ZincBlue2 units come with the preset password user. To reset the password, you will be asked to enter the old pass- word and the new password, then re-enter the new password to confirm. -
Page 80: Messaging Settings Page
Settings Tab Messaging Settings Page The Messaging page is used to set up delivery of messages triggered by system events. Message settings can only be set up via the ZincBlue2 web application. Required message settings are: • SMTP Server Address: IP address of the SMTP server to which messages will be sent. •... -
Page 81: Theory Of Operations
When the pre-defined, or user defined AC thresholds are exceeded the ZincBlue2 UPS 1000W/1500W will transfer from AC Utility power to battery backup. The ZincBlue2 UPS 1000W/1500W will remain in battery backup and continue to supply power to the traffic signals/intersection until AC power is returned with a 3, 10, or 30 second delay (user defined) or the batteries are depleted. -
Page 82: Zincblue2 Battery Panel & Battery Module
1000W/1500W will signal the Battery Panel/Battery Module to enable its battery DC bus to supply 57-43Vdc to the ZincBlue2 UPS 1000W/1500W which will convert the battery DC bus to 120Vac Pure Sine wave to support up to a 1000W load. When not charging or discharging the batteries will be in “monitor mode” with a self-discharge of ap- proximately 3% per month (depending on temperature and state of charge). -
Page 83: Zincblue2 Pim
The UPS TEST switch on the PIM can be utilized to test the ZincBlue2 UPS 1000W/1500W which will go into backup mode by turning the switch from ON (UPS Mode) to OFF (TEST Mode). Because Utility power goes directly to the Bat- teries (TO BATTERY AC IN) the UPS TEST switch should not be used for run-time testing. -
Page 84: Zincblue2 Xrt Battery 3600Wh
ZincBlue2 XRT Battery 3600Wh The ZincBlue2 XRT Battery 3600Wh is a battery controller that continuously monitor four monobloc nickel-zinc batter- ies to make sure they are properly charged and balanced. The device has an AC (90-135Vac, 18Amp) input and 20Amp Breaker to turn ON/OFF the AC power. -
Page 85: Troubleshooting
3) If a RUN TIME test is desired it is best to leave the UPS TEST switch in the ON position and turn off the utility power off at the breaker going to the PIM. This will force the ZincBlue2 UPS 1000W/1500W into backup mode and keep the batteries from being charged. -
Page 86: Zincblue2 Troubleshooting Chart
Problem Solution ZincBlue2 UPS 1000W/1500W not powering ON 1) Check AC TO UPS cable from PIM is attached and supplying 120Vac. The ZincBlue2 UPS 1000W/1500W not getting AC Power 2) Confirm UPS TEST switch on PIM is in the ON position. With no AC power the system can be started from the battery cold start button. The ZincBlue2 UPS 1500W will enforce the minimum battery configuration: two 500W panels or modules orUPStealth 2 XRT Battery 3600W must be attached. If only one 500W panel/module is attached to the ZincBlue2 UPS 1500W a cold The ZIncBlue2 UPS 1500W cold start is not working start will not work. ZincBlue2 UPS 1000W/1500W RED LED Flashing Utility AC is applied with a cabinet miswire of swapped Hot and Neutral. Check the cabinet wiring to the PIM (Hot, Neutral, Ground) terminal block and rewire as necessary. ZIncBlue2 UPS 1000W/1500W is too sensitive in going into battery backup mode Turn off Enhanced Sensitivity. This mode increase the ZincBlue2 UPS 1000W/1500W sensitivity to power failures and glitches and when it will switch from AC line Enhanced Sensitivity is Enabled power to backup mode. Change the LOW and HIGH Threshold to specify when the ZincBlue2 UPS 1000W/1500W should go into battery backup mode. A wider range will reduce Power Fail Thresholds range is too restricted sensitivity. Poor cabinet neutral Verify cabinet wiring. Intermittent power connections from utility Verify cabinet wiring--check for loose wires. ZincBlue2 UPS 1000W/1500W stays in backup mode too long after power is restored By default the line qualify time is set to 30s. After power is restored the system will remain in backup for the Line Qualify time. This can be adjusted from 30s to Adjust the Line Qualify Time 10s or 3s. ZincBlue2 UPS 1000W/1500W cannot provide battery backup (UPS FAULT: Red LED ON) 1) Check battery interconnect cable is connected between ZincBlue2 UPS 1000W/1500W and each battery. Confirm that when plugged in the UPStealth 2 UPS 1000W/1500W recognizes the batteries (a dot on the LCD will light up for each battery detected). 2) Confirm the batteries are also connected to the PIM via AC cable. 3) The 1500W requires a minimum of one ZincBlue2 XRT Battery 3600W or two 500W ZincBlue2 Battery modules/panels. Confirm the system meets this Batteries not attached or available requirement. If the minimum configuration is not met, then the LCD will display: STATUS: BACKUP UNAVAILABLE Batteries will blink the LED White when fully charged. If system has recently been through a discharge cycle the batteries may not be charged up sufficiently to Batteries voltage is too low (not charged) provide backup power (voltage will be too low). The UPS input voltage is out of spec Check incoming AC voltage is present and within spec: 85-140Vac. The UPS inverter is not operational Contact technical support. - Page 87 Econolite sole discretion. Econolite is not liable for damages, which may include; uninterrupted or error free operation, loss of profits, loss of use, costs of installation or removal of defective equipment. Econolite is not responsible for any damage or injury directly or indirectly incurred due to design, operation or defect of its products. There are no warranties for loss of data.
- Page 88 All communications with the end customer will be handled via Purchaser’s representative. In the event that Product is returned and repairs are required or requested that are not covered as a warranty, Econolite will provide such repairs only after receiving written authorization from Purchaser. Econolite will then invoice Purchaser for such repair and Purchaser will make payment upon receipt of invoice.
- Page 89 Glossary Utility power typically 120 VAC 60 Hz Normally Closed Contact (circuit completed) NEMA AC Power grounded return National Electrical Manufacturers Association Nickel-Zinc American Wire Gauge Rechargeable battery chemistry that uses Nickel and Zinc (NiZn) ETHERNET Normally Open Contact (circuit not complete) A system for connecting a number of computer systems to form a local area network to control the passing of information between them...
- Page 90 Notes 87 | ZincBlue2 User Manual...
- Page 91 This user manual provides the essential information you need in order to get the most from your ZincBlue2 Uninterruptible Power Supply & ZincBlue2 Software. Copyright © 2021 Econolite All rights reserved.
- Page 92 Econolite 1250 N. Tustin Ave. Anaheim, CA 92807 www.econolite.com/support 01100-00200-00030, rev H07 Copyright © 2021 Econolite All rights reserved.
