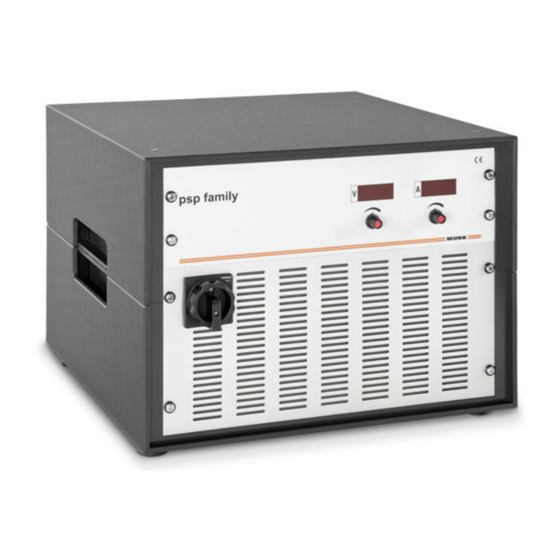

Summary of Contents for Munk psp family Gamma Series

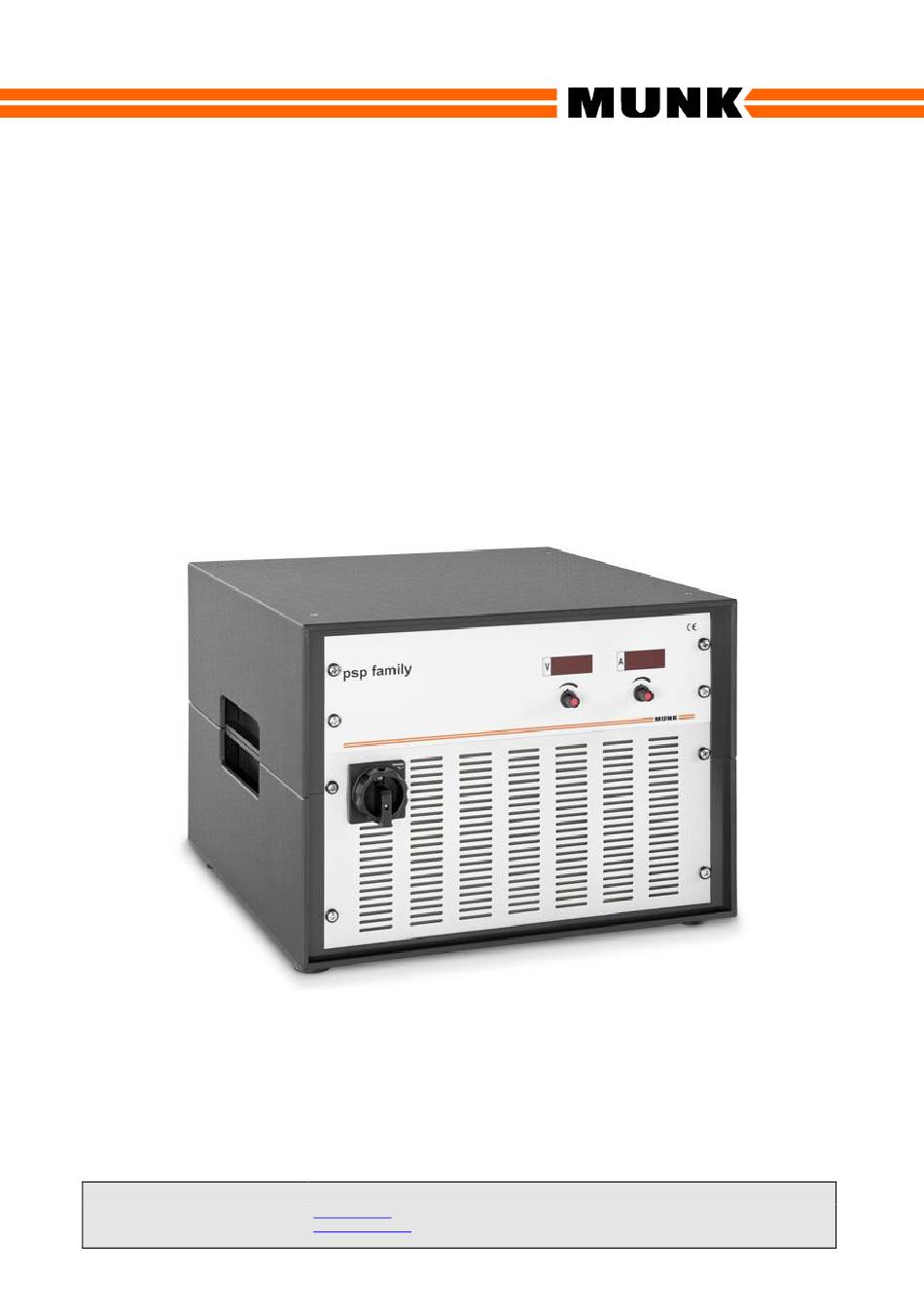

- Page 1 Instruction Manual psp family / series gamma Bench Case Version D400 G150/50 WRG-TFKX Device-No.:246569 Design may vary Munk GmbH page 1 Gewerbepark 10 www.munk.de D-59069 Hamm www.rectifier.com Tel.: 02385 / 74-0 Fax: 74-55...
-
Page 2: Table Of Contents
Cleaning of the Rectifier ....................12 Storage ........................... 12 General Safety Instructions ..................13 Troubleshooting ......................14 Troubleshooting on the Phone ..................14 Periodic Interruptions in Operation .................. 14 The Device does not Reach the Set Current ..............14 Munk GmbH page 2... - Page 3 Electrical Data ......................16 11.2 Dimensions ......................... 17 11.3 Terminal Strip“X02” ..................... 18 Connection Examples for “X02“: .................. 18 11.4 11.4.1 Standardized Measuring Values ................18 Current Carrying Capacities ................. 19 12.1 Overview of VDE Standards ..................20 Munk GmbH page 3...
-
Page 4: Basic Information
Industry (Grüne Lieferbedingungen), unless the terms of delivery have been specified otherwise in the contract agreement in writing. Munk GmbH is not liable for defects caused by improper handling and incorrect operation of the power supply. This includes the disregard for protection and safety features and the non-observance of preset device parameters. -
Page 5: Important Safety Notes
The transport units must be screwed together and electrically connected by experts on site. If necessary, the power supply must be stored free from frost in a dry, well-ventilated room and covered during storage. Large temperature deviation has to be avoided. Munk GmbH page 5... -
Page 6: Danger Notice
Terminals must be protected and designed according to the regulations of the local power utility. Protective conductor connections (safety ground connections) must be checked for proper functioning after they have been mounted! Munk GmbH page 6... -
Page 7: Block Diagram
6: Smoothing 7: High Frequency Chopper 8: High Frequency Transformer 9: Fast Rectifier 10: Filter 11: Set Values 12: Controls 13: Actual Current 14: Actual Voltage 15: Shunt / Current Converter 16: Temperature Monitoring 17: DC-Load Munk GmbH page 7... -
Page 8: Description Of Psp Family Rectifiers
Psp family rectifiers are DC power supplies designed on the basis of switching-mode power supply technology. The internal control rectifier operates according electronics facilitate very short adjustment controlled voltage/current characteristic to times in case of sudden load variations. DIN 41773. Munk GmbH page 8... -
Page 9: Direct Current Output
If several interconnecting cables are used, the nominal current carrying capacity of the individual conductor must be multiplied by 0.7, unless the regulations applicable in your Munk GmbH page 9... -
Page 10: Installation
Leave a minimum clearance of 20 cm (8”) behind the rectifier to let the exhaust air escape unimpeded and take measures to prevent Munk GmbH page 10... -
Page 11: Commissioning
As these rectifiers are equipped with only a few operating elements, handling psp family devices is very easy and does not require any special technical knowledge. After the rectifier has been expertly installed, the Munk GmbH page 11... -
Page 12: Service And Maintenance
30 minutes The rectifier should be switched off and allowed to cool down before maintenance begins. Please check the interconnecting cables to the load and all contact or connecting points at regular intervals (overheating risk). Munk GmbH page 12... -
Page 13: General Safety Instructions
Always carry out installation work in off- load conditions, for example, when connecting the output terminals of the device. Ensure sufficient protection against electrostatic discharge. If the mains feeder and/or the mains plug obviously damaged, Munk GmbH page 13... -
Page 14: Troubleshooting
9.4 The Device does not Reach the Set Voltage The device is being operated in current- limiting mode; the resistance of the load is too high. Munk GmbH page 14... -
Page 15: Type Code
10 Type Code Munk GmbH page 15... -
Page 16: Technical Data
: 0 … 100 % of Nominal Voltage / Current Adjustment ranges Control Accuracy : +/- 1% referred to nominal values : 0 ... 35 °C (30 … 100°F) Ambient Temperature Device Type : D400 G150/50 WRG-TFKX Device No. : 246569 Munk GmbH page 16... -
Page 17: Dimensions
11.2 Dimensions Dimensions: (W x D x H): 537 mm x 550 mm x 397 mm Copper output bars: Munk GmbH page 17... -
Page 18: Terminal Strip"X02
= Output active 0 …10 V DC 15 Actual Voltage 16 standardized 11.4 Connection Examples for “X02“: 11.4.1 Standardized Measuring Values Level: 0...10V DC Note: Terminals 13, 14 are for external pulse enabling (bridged, when delivered) Munk GmbH page 18... -
Page 19: Current Carrying Capacities
450/750 V”. Group 2 Multi-strand cables, for example, non-metallic sheathed cables, flexible cords, metal-clad cables in open or ventilated ducts. Munk GmbH page 19... -
Page 20: Overview Of Vde Standards
(draft standard): “Use of cables and insulated wires for DIN VDE 0891-10 telecommunication and information processing systems; special direction for ribbon cables with round conductors; with a pitch of 1.27 mm according to DIN VDE 0811” Munk GmbH page 20...
