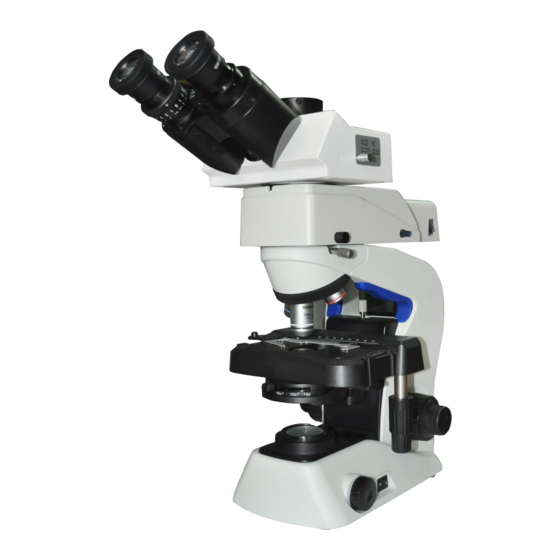

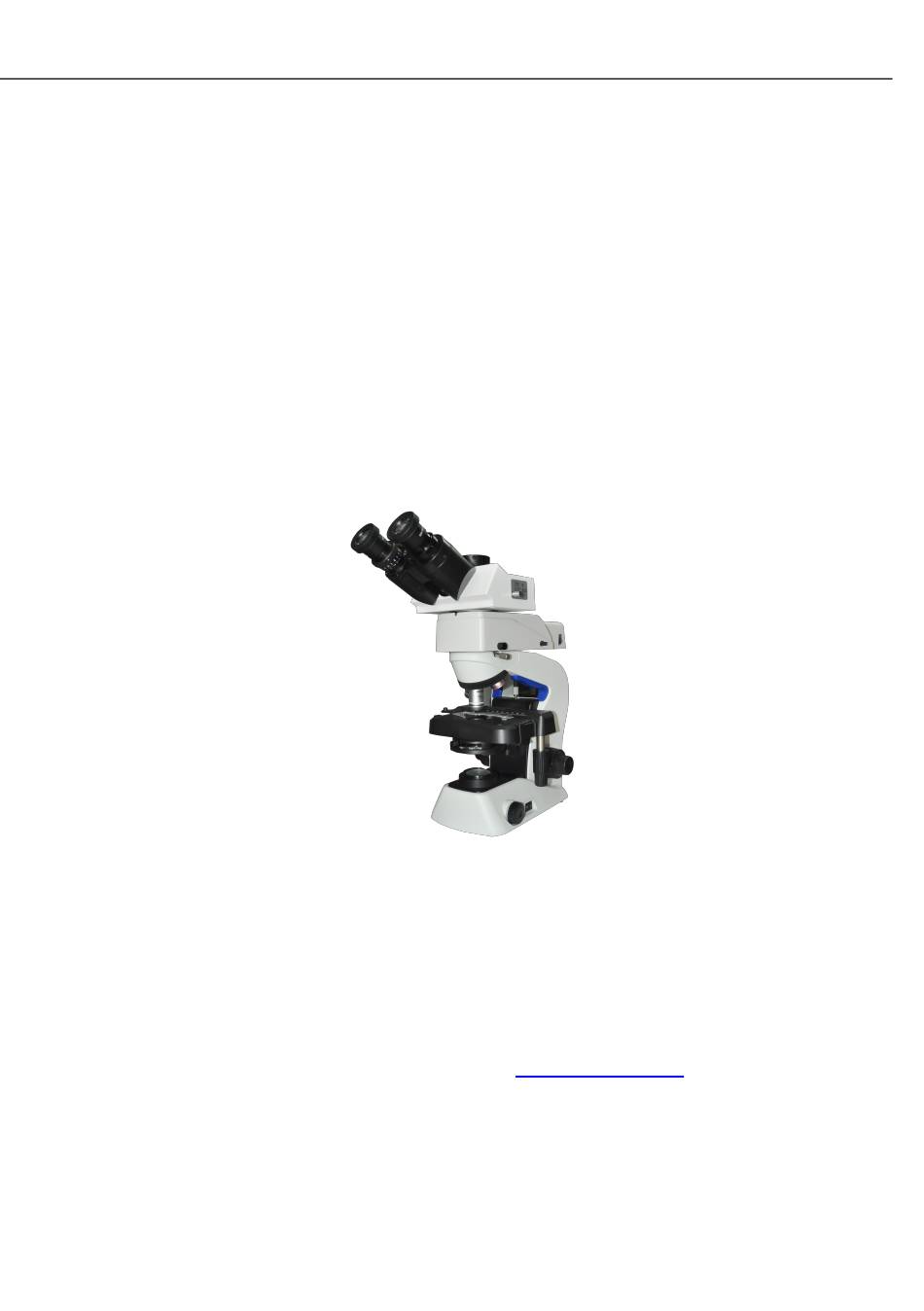

- Page 1 User Manual MF-(BG)-LED CX23-3T Guangzhou Micro-shot Technology Co., Ltd www.m-shot.com sales@m-shot.com...
- Page 2 Thank you for buying our product! This unit is a precision optical instrument. Our product has been design to provide the highest level of safety, however, improper operation or negligence in following the instructions in this manual may cause personal injuries and property losses. In order to ensure your safety, prolong the life of this unit and maintain it properly, please read this manual carefully before operating this unit.
-
Page 3: Table Of Contents
CONTENT 1. Content ..........................1 2. General note..........................2 3. Properties of product......................2 4. Configuration.........................2 5. Constructure..........................4 6. Installation..........................5 7. Operation..........................6... -
Page 4: General Note
General note The products is produced according to medical equipment technology requirement (serial no. MJ-08-1), according to Chinese standard 《GBT 2985-2008》 and industry standard《JB/T 5479-1999》 requirement. Properties of product The upgrade LED fluorescent microscope adpots infinity optical system, take use of LED light source as fluorescent illumination to bring user a full field of view, high contrast fluorescence imaging performance. - Page 5 Plan 4x NA: 0.10 WD: 27.8 mm Plan 10x NA: 0.25 WD: 8 mm Objective Plan 40x NA: 0.65 WD: 0.6 mm Plan 100xOil NA: 1.25 WD: 0.13 mm Working Indoor,temperature：5°C~40°C（41°F~104°F）,Maximum relative surrounding humidity relative 80％，temperature 31°。 198（W）X 238(D)X 384(H)mm/8 kg Size and weight 2）Objectives W.D.
-
Page 6: Constructure
4. Constructure 1.C-mount adapter port 2.Observation transfer lever 4.M6 fix screw 3.DC power base 5.Lever 7.Power Bright field: Draw out button Fluorescent:Push in 8.Brightness adjustment knob 6.Manual fix screw 9.Transmitted light power button 10.Transmitted light brightness adjust knob 11.Fluorescent illumination power... -
Page 7: Installation
5.Installation 1. Manual fix screw M6 to fix fluorescence illumination with microscope host body. 2. M6 screw to fix trinoclar head with fluorescence illumination. 3. Set eyepieces... -
Page 8: Operation
6.Operation 1) fluorescence observation: 1. Fluorescent light source adapter 11 connect the DC power socket 3, the switch button 7 according to "I", which is connected to power. Close the transmission light switch 9. 2 .The switch lever 5 into the fluorescent light field. 3.Specimen on the stage, will be transferred to the objective position, focusing on specimen. - Page 9 Warning: Please turn off power when do not use the instrument! 3) adjust the pupil distance Interpupillary distance adjustment is based on the distance between the eyes of the distance between the two lens adjustment. This method helps to observe a single microscope image, reduce eye fatigue in the observation process.
- Page 10 8 instrument maintenance and maintenance (1) the host power switch for power supply control, observation is completed or suspended, the switch "O" press, cut off the power supply, so as to avoid the electrical components of the instrument is still in the working state. When not in use, the power plug should be pulled out from the power socket and properly keep all kinds of connection lines.
- Page 11 Thank You!
