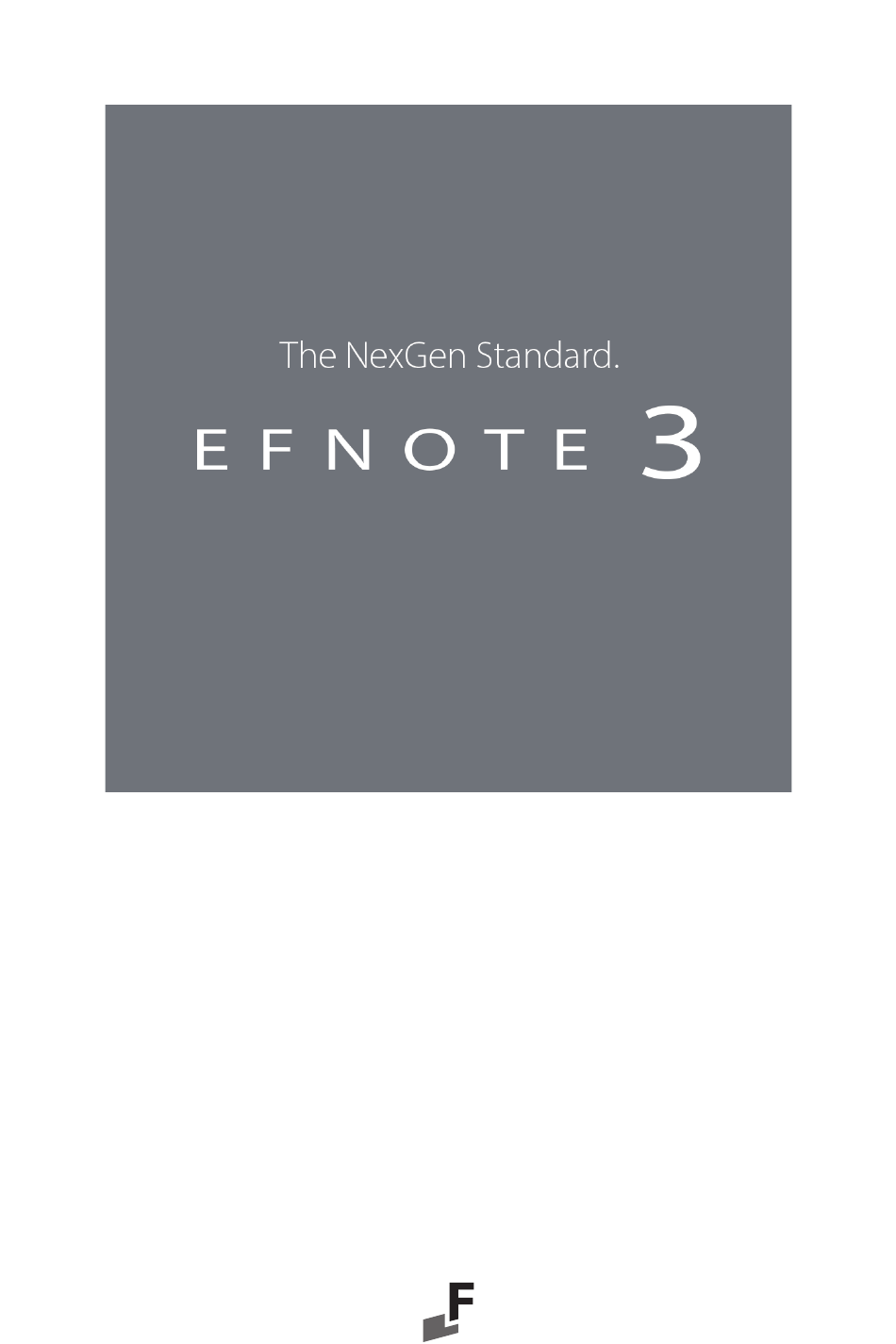

  • Page 1 Quickstart Guide...

  • Page 2: Table Of Contents

    Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 For the latest information, please refer to the EFNOTE 3 website .

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS FAILURE TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS MAY RESULT IN FIRE, ELECTRIC SHOCK, INJURY TO PERSONS, OR DAMAGE TO OTHER ITEMS OR PROPERTY . You must read and follow these instructions, heed all warnings, before using this product . Please keep this guide for future reference .

  • Page 4: Important Information

    * Ef-Note Inc . cannot be held responsible for damage caused by improper use or modifications to the product, or loss of data . For EU countries Ef-Note Inc . hereby declares that the type of radio equipment EFNOTE 3 (EFD3-STDSET) complies with Directive 2014/53/EU . The full text of the EU Declaration of Conformity is available at : ef-note . c om/compliance This symbol on the product means that used electrical and electronic equipment should not be mixed with general household waste .

  • Page 5: Assembling

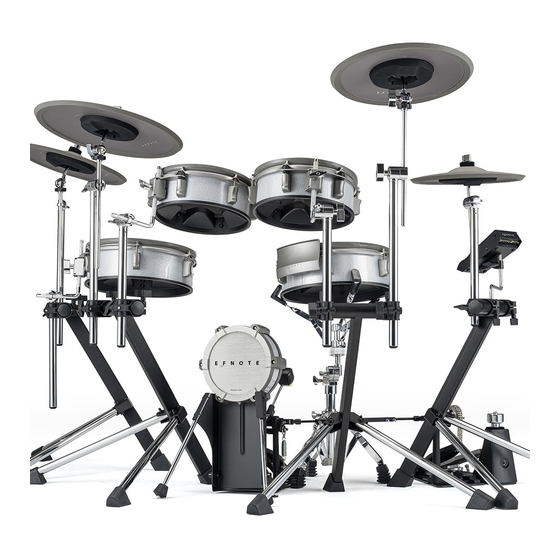

    Assembling Assembling Packing List 16” Standard Cymbal Sound Module Multi-B Cable for Ride 8” Kick Pad Trigger Cable Hi-Hat Control Pedal 12” Snare Pad with AC Adapter Smartphone Tray Side-Rim Tuning Key 10” Tom Pad Tripod Set Cable Tie 12” Tom Pad Snare Stand Quickstart Guide 12”...

  • Page 6: Assembly

    Assembling Assembly Please take your time with assembly and contact us with any questions (p . 19) . CAUTION...
  • Page 7 Assembling...
  • Page 8 Assembling * Kick pedal is not included . * Make sure that the three points firmly make contact with the floor . * Do not loosen * Be careful with * Adjust the length if the legs the bolts . the spikes are unstable .

  • Page 9: Tuning The Head Tension

    Assembling * Be sure to tighten all knobs and bolts firmly . * Make sure that all stands are stable . Tuning the Head Tension Make sure the mesh drum heads are not to loose . Tighten up the tuning bolts evenly with tuning key, if needed . Hi-Hat Pedal Adjustment * Be careful not to pinch your fingers .

  • Page 10: Connection

    Firmly attach the included plug which is suitable for the outlet in your region . * Use only the included AC adapter and plug . Stereo Mini * Not included OUT 2/R OUT 1/L 1/4” Phone EFNOTE Active Instrument Monitors * Sold separately MIDI OUT...
  • Page 11 * The EFNOTE 3 does not include Tom 4 and Crash 3 pads CRASH2 CUP* in the package . * You can use the TOM 4 and CRASH 3 cables for the Cup of the Crash 1 and Crash 2 cymbals . SNARE...

  • Page 12: Basic Operation

    Basic Operation Basic Operation Panel Description Touch display Micro USB (To PC/Mac) Ring illumination Power (Push) Value knob (Rotate) Linear Indicator Speaker for click (Inside) Power On/Off Power On 1 sec . Power Off * Without this procedure may result in loss of changes . * The power save function will turn power off automatically after specified period .

  • Page 13: Home Screen

    Basic Operation Home Screen Switching drum kits Shows kit list Next Previous drum kit drum kit Volume Recorder Records your drum performances by MIDI . * Any other audio sources are not recorded . Analog AUDIO IN level USB audio in level Bluetooth audio in level Phones output level Clears target track...

  • Page 14: Menu

    Basic Operation Menu Organizes drum kits for gigs Manages your user custom instruments Shows the pad level faders (p . 15) Changes instrument on each pad (p . 15) Edits drum kit Provides basic drum beats Estimates your strike accuracy Displays your strike points on timeline Configures click setup Closes menu...

  • Page 15: Changing The Instrument

    Basic Operation Changing the Instrument > Hit the pad you want to change its instrument . Changes are saved automatically . Adjusting the Pad Levels > Choose a pad . Adjust the level . * Clipping may occur when exceeding 85% . * You can also choose the pad by hitting it .

  • Page 16: Connecting Your Smart Device With Bluetooth

    Basic Operation Connecting Your Smart Device with Bluetooth You can connect your smart device to the EFNOTE 3 to listen to audio with Bluetooth . Connecting > Make sure the status is “Ready to pair“ . If the status is “OFF”, tap it to turn on .

  • Page 17: Adjusting The Display (Lcd) Settings

    Basic Operation Adjusting the Display (LCD) Settings > Changing the Power Save Setting > When “Off”, the module will not turn off automatically . Adjusting the Hi-Hat > • When the hi-hat sound is not closed enough despite you press the pedal firmly, increase the “Closed HH Tightness”...

  • Page 18: Specifications

    • Zone: Head / Rim / Side-Rim Snare (EFD-S12P) • Sensor: Multi • Connector: Head/Rim, Side-Rim (2x TRS Phones) • Size: 10 x 3 . 5 ” (Tom 1/2), 12 x 4” (Tom 3) Tom 1/2 (EFD-T10P) • Zone: Head / Rim • Sensor: Multi Tom3 (EFD-T12P) •...

  • Page 19: Support

    Support Support Please contact us with questions and comments, we love to hear from you . Artesia Pro Inc. info@artesia-pro.com artesia-pro.com...
  • Page 20 © 2020 Ef-Note Inc . EFNOTE3 QSG EN Rev.02-2020...
