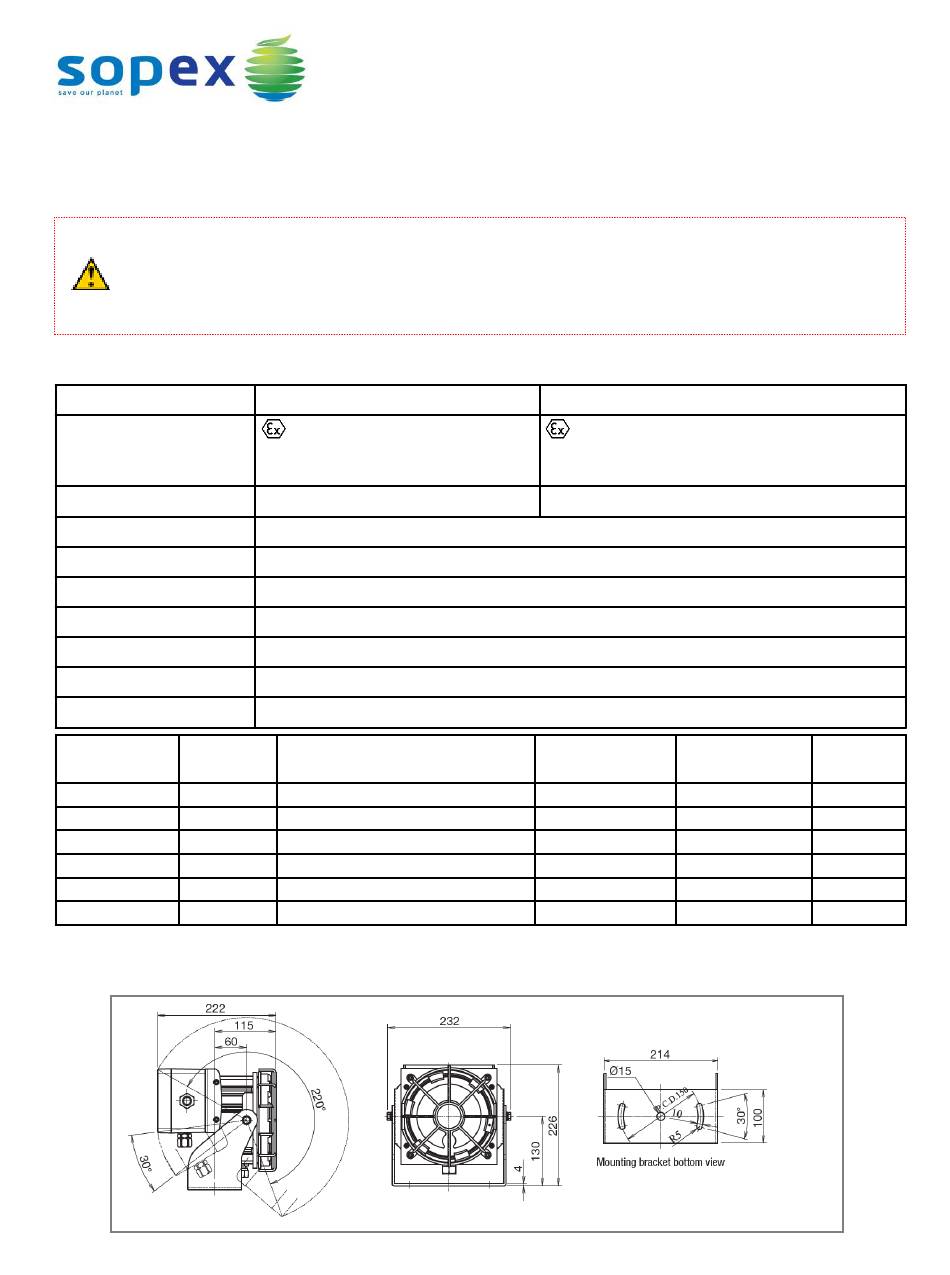

Sopex SXF8011W Instruction Manual

SOPEX Explosion Proof LED Floodlights
Models: SXF8011W/8011N/8012W/8012N/8013W/8013N
• Do not open the floodlight when energised
• Read the instruction manual before installation
• The floodlight must be installed and maintained by an authorised trained person
• All modifications on this floodlight are forbidden

TECHNICAL SPECIFICATIONS

Certification code
Ambient Temperature -40°C ≤ Ta ≤ +40°C / +50°C
Hazardous Locations
Ingress Protection
Protection Class
Voltage
Power Factor
CCT
Service Life
Model Power
Rating
SXF8011W 78W
SXF8011N 78W
SXF8012W 156W
SXF8012N 156W
SXF8013W 234W
SXF8013N 234W

OVERALL DIMENSIONS AND WEIGHT

INSTRUCTION MANUAL
SXF8011W/8011N
II 2 G D
Ex db eb op is IIC T6/T5 Gb
Ex tb op is IIIC T80°C / T100°C Db
Gas: Zones 1 & 2
AC 100-120V/220-240V
100,000h at ambient temperature of 40°C
Current
0.78A@100V / 0.34A@220V
0.78A@100V / 0.34A@220V
1.56A@100V / 0.69A@220V
1.56A@100V / 0.69A@220V
2.34A@100V / 1.03A@220V
2.34A@100V / 1.03A@220V
SXF8011W / SXF8011N
SOPEX Innovations Pte Ltd
SXF8012W/8012N/8013W/8013N
II 2 G D
Ex db eb op is IIC T6/T5/T4 Gb
Ex tb op is IIIC T80°C / T100°C / T135°C Db
-40°C ≤ Ta ≤ +30°C / +40°C / +50°C
Dust: Zones 21 & 22
IP66/67
Class 1
0.995 at 100V, 0.996 at 220V
5000K
Lumens
Output
6000 lumens
5680 lumens
12000 lumens
11800 lumens
17100 lumens
16900 lumens
Weight:
50/60Hz
Peak
Candlepower
2000 cd
7500 cd
4000 cd
16000 cd
6400 cd
22000 cd
SXF8011W: 5.8 kg
SXF8011N: 6.0 kg
Page 1 of 4
Beam
Angle
108°
36°
108°
36°
108°
36°
