Assembly directions for Magnus DPV

Updated Sept 2012

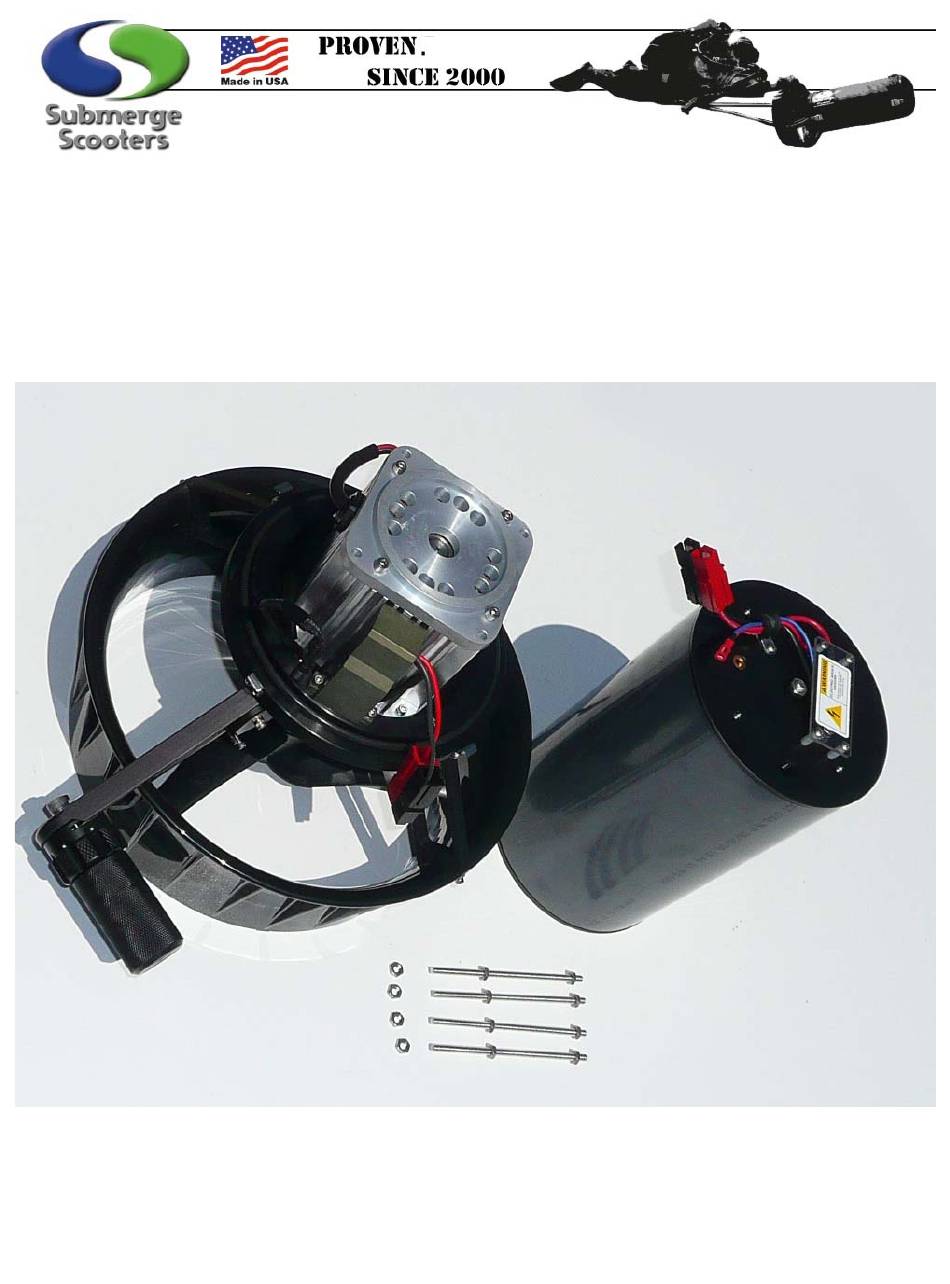

For this assembly, be sure you have the Motor section, the battery pack, 4 threaded rods and

12 or 16 nuts. Nuts may be pre-set position. You will also require 2x 7/16" tools to enable the

tightening of 2 x 7/16" nuts at the same time.

Table of Contents

Need help?

Do you have a question about the Magnus DPV and is the answer not in the manual?

Questions and answers

Summary of Contents for SUBMERGE Scooters Magnus DPV

Page 1 Assembly directions for Magnus DPV Updated Sept 2012 For this assembly, be sure you have the Motor section, the battery pack, 4 threaded rods and 12 or 16 nuts. Nuts may be pre-set position. You will also require 2x 7/16” tools to enable the...
Page 2 Step 1: Install the 4 threaded rods into the battery pack, the loctited nut end first. Finger tighten only.
Page 3 Step 2: With the motor section sitting propellers down and flat on the ground, carefully install the battery pack onto the motor, through the 4 available holes. Follow the alignment directions marked on the battery pack. The battery pack has a preferred orientation which will provide optimal trim.
Page 4 Step 3: Install the last 4 nuts onto the 4 threaded rods. Finger tighten, until all 4 are secure. Re- measure if necessary. Then, tighten using 2 tools, either side of the motor component. A 7/16” ring type wrench is useful. MAKE SURE YOU ARE NOT TIGHTENING THE ROD INTO THE BATTERY PACK.
Page 5 If you need to adjust the trim of the scooter so than the nose is higher, move the battery pack closer to the motor in small (5mm/1/4') increments, until the scooter is to your desired trim. Do not place any loose trim weights or other loose object in the tail end of the scooter. Doing so may cause an electrical failure, or mechanical motor failure if any object makes it's way into the motor (which is not sealed).
Page 6 INSTRUCTION MANUAL MAGNUS DPV UPDATE 12/12 WARNING: MAGNUS SCOOTER LITHIUM BATTERY PACK NOT APPROVED FOR AIRLINE TRANSPORT IN A PASSENGER AIRCRAFT. ADVISORY: prepare a dedicated charging area that is cleared of any flammable materials or other equipment; do not charge the scooter in or attached to a dwelling with sleeping occupants, and ensure you have a functioning smoke alarm where the scooter is stored.
Page 7 obstructions in the propellers). If the scooter does not start, try disconnecting and then re- connecting the battery pack. There is a warning beep which sounds every 60 seconds, this alerts you to the fact that the controller is powered up. It is also a good reminder to disconnect the controller whilst the scooter is in storage, or else the controller will completely drain the battery pack if left connected for a long period (depending on the state of charge, as little as 1 week).
Page 8 speed 1. On your 1 dive, get used to this speed for a few minutes, and adjust the tow rope, and tighten the sliding knots, before attempting the use of speed 2 or 3. Once speed 1 is engaged, turning the trigger off and back on quickly (<0.5 seconds) shifts the scooter up 1 speed to speed 2, and another quick twist off/on will kick the scooter into high gear/speed 3.
