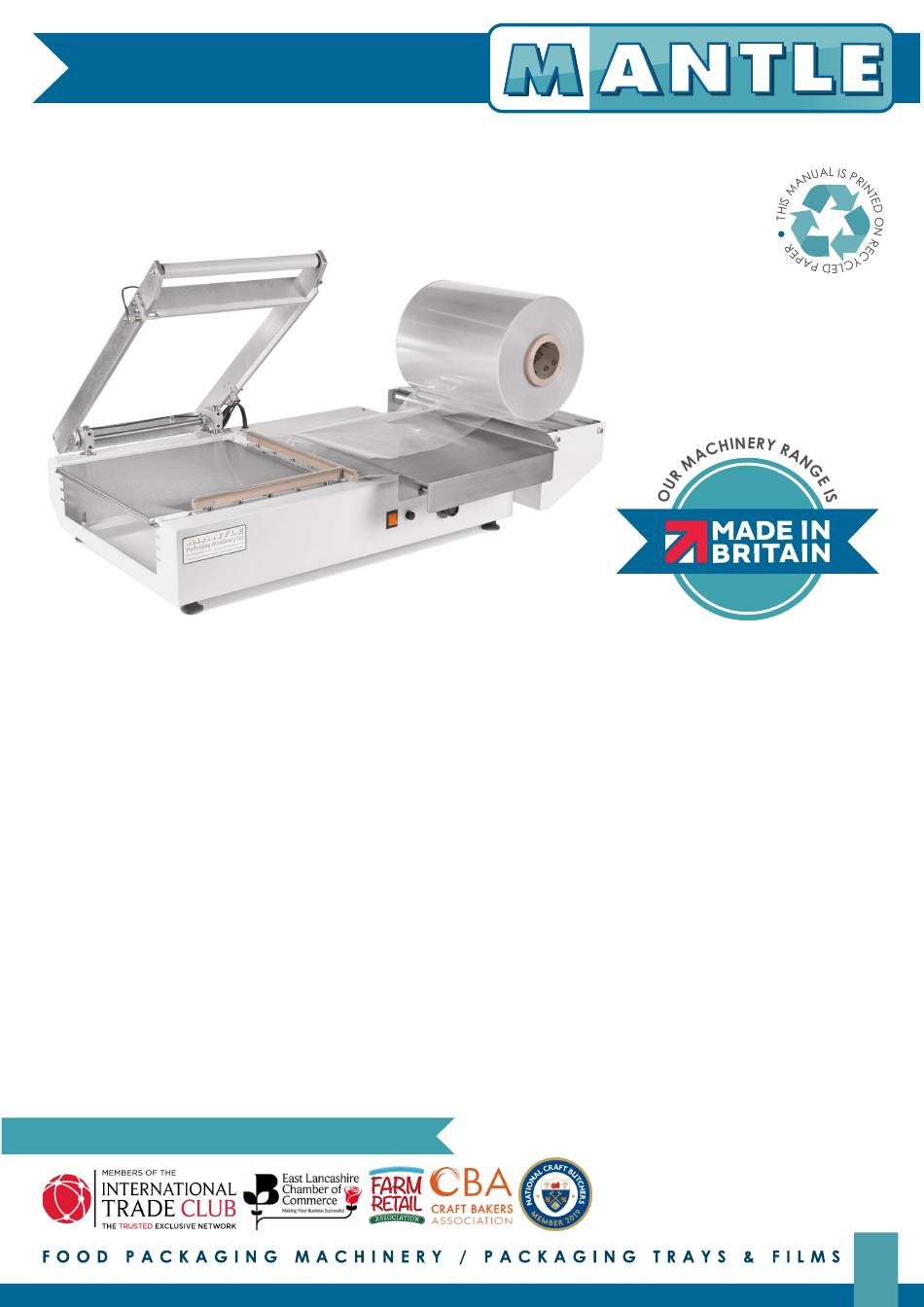

Mantle LS30 Instruction Manual

F A M I L Y R U N B U S I N E S S
E S T A B L I S H E D I N 1 9 9 7
LS30 instruction manual
l sealer for use with polypropylene film
This manual is produced by Mantle Packaging Machinery Ltd for the benefit of machine users and should be carefully studied prior to
installation or operation of the machine, and then kept safely for the training purposes of future operators. Although every effort is made to
ensure that the information in this manual is accurate, due to continuing improvement and development, some of the content may differ in
some way from the machine that you have. On receipt the machine should be thoroughly inspected and any damage should be notified
to the carrier and Mantle Packaging Machinery Ltd immediately.
DESCRIPTION & SPECIFICATION
The machine is robustly constructed from the finest materials available and each unit is guaranteed for 6 months against faulty workmanship.
Following years of experience in Food Packaging Machinery, this machine has been manufactured to meet the need for a simple yet
workmanlike machine.
The centre-folded film is supported on free running rollers at the right hand side of the machine; it then passes over and under the dividing
plate. The dividing plate incorporates a film lift to enable the operator to insert the product with minimum effort.
The sealing area of the machine has been fitted with an adjustable height platform to give the best possible sealing position for the product.
Sealing is achieved by electrical impulse, which is initiated by manually closing the sealing head.
Bench Model: -
Sealing Area - 300mm x 300mm
Overall Length - 930mm :
Electrical Supply: -
Single Phase, Neutral and Earth : 240 volt : 10 amps
Dividing Plate and Pack Plate.
1. HEALTH & SAFETY AT WORK
It is essential that operators are correctly trained and follow the
It is essential that only competent and qualified personnel perform any maintenance or repair work.
All warning labels must be complied with.
The following points should be observed for safe usage: -
Do not operate the machine with any panels open or guards removed. Always replace the covers before switching on mains power
following maintenance or repair work. Hair, bracelets, necklaces, neckties or other personal objects may become tangled with moving parts.
Do not override any safety switches, devices, locks, guards etc., and always allow moving parts to stop before making any adjustments.
Do not allow objects to fall into a machine. Never attempt to retrieve objects from inside the machine until a qualified person confirms that
it is safe to do so.
WE ARE PROUD MEMBERS OF
: Sealing Platform Descent - 80mm
Overall Width - 690mm : Overall Height - 235mm
Finish: -
White Epoxy Body and Brackets : Brushed Aluminium Sealing Head : Stainless Steel
