Summary of Contents for DONGRUN FDO-99E

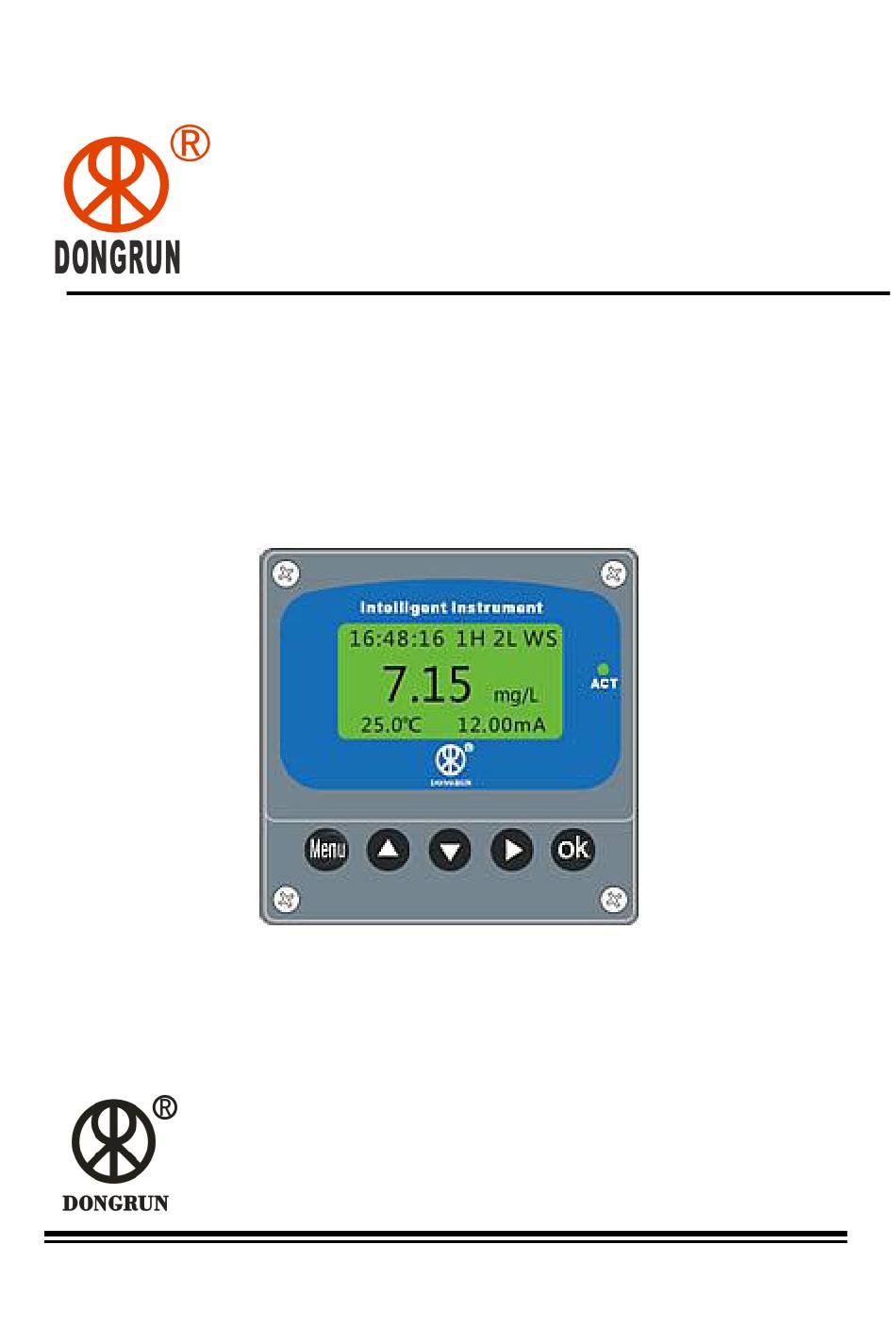

- Page 1 FDO-99E Fluorescence Method Dissolved Oxygen Analyzer PRODUCT MANUAL SHANDONG DONGRUN INSTRUMENT SCIENCE & TECHNOLOGY CO., LTD.
-
Page 2: Table Of Contents
CATALOG 1. SECURITY NOTICE ..........................1 2. PRODUCT OUTLINE ..........................2 3. PRODUCT FEATURES ..........................3 4. TECHNICAL PARAMETERS ........................3 4.1 SENSOR PERFORMANCE ........................3 4.2 TRANSMITTER PERFORMANCE ......................4 5. PCKING LIST ............................5 6. INSTALLATION & WIRING........................6 6.1 SENSOR INSTALLATION ........................ - Page 3 ..................23 8.2.2.3 COMMUNICATION SETUP 8.2.3 SYSTEM SETUP ..........................24 ....................24 8.2.4 SYSTEM MAINTENANCE ......................25 8.2.4.1CALIBRATION ....................25 8.2.4.2CLEANING SETUP ......................26 8.2.4.3RESET SETUP ....................26 8.2.4.4CONDITION SETUP ....................26 8.2.4.5PARAMENT RESTORE ........................27 QUERY 8.2.5 9. INSTRUMENT MAINTENANCE ......................27 9.1 DAILY MAINTENANCE ........................
-
Page 4: Security Notice
FDO-99E Fluorescence Method Dissolved Oxygen Analyzer Product Manual 1、Security Notice Welcome to use FDO-99E Fluorescence Method Dissolved Oxygen Analyzer, manufactured by Shandong Dongrun Instrument Science and Technology Co., Ltd! Before instrument installation, please make sure to read this manual carefully, which not only guides you to the correct use of instrument, more important is to avoid unsafe issues caused by improper use of instrument. -
Page 5: Product Outline
FDO-99E Fluorescence Method Dissolved Oxygen Analyzer Product Manual 2、Product Outline Fluorescence Method Dissolved Oxygen Analyzer is based on the “quenching” principle of certain substances to reactive fluorescent in the physics, which detects the concentration of dissolved oxygen or partial pressure of oxygen in the water. Figure on... -
Page 6: Product Features
FDO-99E Fluorescence Method Dissolved Oxygen Analyzer Product Manual 3、Product Features No need to replace solid electrode or film / electrolyte No flow speed/ agitation requirement Higher resolution and measurement accuracy Stable measurement, no drift It will not be poisoning by sulfide. -
Page 7: Transmitter Performance
FDO-99E Fluorescence Method Dissolved Oxygen Analyzer Product Manual Resolution: 0.1℃, Accuracy: ±0.5℃, Response time:<10s 6. Operating temperature: 0 - 50℃ 7. Storage temperature: -40 - 80℃ 8. Installation depth: 0 - 10 m 9. Calibration: no need to calibrate, as factory has made three-point calibration. -
Page 8: Pcking List
FDO-99E Fluorescence Method Dissolved Oxygen Analyzer Product Manual 7) Event record capacity: 4800 8) Output relay: 2, clean relay: 1, contact capacity: 5A/30VDC or 5A/250VAC 9) Mechanical size: Dimension: 98 * 98 * 130 mm Panel installation: insert part width * height is 92 * 92 mm, length: 115 mm Panel opening: 93 * 93 mm 5、Packing List... -
Page 9: Installation & Wiring
FDO-99E Fluorescence Method Dissolved Oxygen Analyzer Product Manual 6、Installation & Wiring 6.1 Sensor Installation The distance between fluorescence dissolved oxygen sensors installed and the surface of water, is 0.2-1m according to the actual situation. The fluorescent cap cannot contact with the sludge or hard objects. There should be no light shining on the lower part of the fluorescent cap directly. - Page 10 FDO-99E Fluorescence Method Dissolved Oxygen Analyzer Product Manual Instrument box and bracket Guide rod and bracket Traction rope nsor Floater Sensor Sidewall mounting bracket M10 nut The elastic gasket FIG. 1 Sensor Installation Diagram - ７ - Shandong Dongrun Instrument Science and Technology Co., Ltd.
-
Page 11: Transmitter Installation
FDO-99E Fluorescence Method Dissolved Oxygen Analyzer Product Manual 6.2 Transmitter Installation 6.2.1 Panel-mounted Type Need to open a 93 mm x 93 mm square hole on the installation panel, then fix the transmitter on the panel by install card buckle. -
Page 12: Piping Mounted Type
FDO-99E Fluorescence Method Dissolved Oxygen Analyzer Product Manual 6.2.2 Piping Mounted Type Transmitter is installed by location A on the back of the transmitter. FIG.3 Back Diagram of Transmitter - ９ - Shandong Dongrun Instrument Science and Technology Co., Ltd. - Page 13 FDO-99E Fluorescence Method Dissolved Oxygen Analyzer Product Manual FIG. 4 Piping Mounted Diagram - １０ - Shandong Dongrun Instrument Science and Technology Co., Ltd. http:// www.cndongrun.com...
-
Page 14: Plate Mounted Type
FDO-99E Fluorescence Method Dissolved Oxygen Analyzer Product Manual 6.2.3 Plate Mounted Type Turn the four M4 screws through the mounting plate into Hole location B, and then install the mounting plate. FIG.5 Backplate Mounting Diagram - １１ - Shandong Dongrun Instrument Science and Technology Co., Ltd. -
Page 15: Wiring
FDO-99E Fluorescence Method Dissolved Oxygen Analyzer Product Manual 6.3 Wiring There is a PG9 thread hole below the instrument, you can access electrode lead(outer diameter φ4～φ6) to the meter; two M20X1.5 thread holes, you can access signal line(outer diameter φ6～φ10) and power cord to the meter. - Page 16 FDO-99E Fluorescence Method Dissolved Oxygen Analyzer Product Manual FIG.6 Transmitter Back Panel Wire Map Diagram (Power supply DC24V) - １３ - http:// www.cndongrun.com Shandong Dongrun Instrument Science and Technology Co., Ltd.
- Page 17 FDO-99E Fluorescence Method Dissolved Oxygen Analyzer Product Manual Table 2 Intelligent Transmitter Terminal Definition (Power Supply DC24V) Name Instruction DC24V Power supply + Not connected DC24V Power supply- Not connected WASH Wash relay normally open contact RELAY2 Relay 2 normally open contact...
- Page 18 FDO-99E Fluorescence Method Dissolved Oxygen Analyzer Product Manual FIG.7 Transmitter Back Panel Wire Map Diagram (Power supply AC220V) - １５ - http:// www.cndongrun.com Shandong Dongrun Instrument Science and Technology Co., Ltd.
- Page 19 FDO-99E Fluorescence Method Dissolved Oxygen Analyzer Product Manual Table 3 Intelligent Transmitter Terminal Definition (Power Supply AC85-265V) Name Instruction AC85-265V Power supply null line Not connected AC85-265V Power supply fire wire Not connected WASH Wash relay normally open contact RELAY2...
-
Page 20: Panel Instroduction
FDO-99E Fluorescence Method Dissolved Oxygen Analyzer Product Manual 7、Panel Introduction Instrument front panel is shown in Figure 8,the upper half is the display area, including 128*64 lattice LCD display interface and one LED light; and the lower part is the key area, including five keys. Specific functions are shown in Table 4. -
Page 21: Menu Operation Instruction
FDO-99E Fluorescence Method Dissolved Oxygen Analyzer Product Manual Press this key under setting state to confirm operation content, then OK Key enter the next step of the operating procedures. 8、Menu Operation Introductions 8.1 Display Interface Instructions Time Relay Action Status... -
Page 22: Parameter Setting Operation
FDO-99E Fluorescence Method Dissolved Oxygen Analyzer Product Manual 8.2 Parameter Setting Operation 12:12:12 Main Menu Measure Setup 按上下键 Para Measure Setup DO、SAT 8.88 Output Setup Correct K 1.00 mg/L System Setup Correct B 0.00 33.0℃ 9.73mA Measure Setup Temp Offset 0.00℃... - Page 23 FDO-99E Fluorescence Method Dissolved Oxygen Analyzer Product Manual Main Menu Maintain Cali 28.04 Cali Zero Free Maintain Calibrate Query Clean Cali Span Clear Sat Zero 0.01 Calibrate Sat Span 1.19 Temp Zero 27.10 Temp Span 24.80 按上下键 Auto、Manual Maintain Mode...
-
Page 24: Measurement Setup
FDO-99E Fluorescence Method Dissolved Oxygen Analyzer Product Manual Main Menu Query Query Event Event Maintain Date 17-07-17 Date 17-07-17 Query Event Query Record Time 08:08:08 Time 08:08:08 Query Version Set Language Query Now Query Query Record 0 Record Query Event... -
Page 25: Output Setup
FDO-99E Fluorescence Method Dissolved Oxygen Analyzer Product Manual Tempreture offset: To adjust tempreture indicating value, and the default value is 0.00. 8.2.2 Output setup In the main menu interface, move the cursor to "Output setup" option, press the "OK key” and then enter... -
Page 26: Electirc Current Setup
FDO-99E Fluorescence Method Dissolved Oxygen Analyzer Product Manual 8.2.2.2 Current Setup Output Setup Current Setup 按上下键 Alarm Setup Channel 按上下键 Current Setup Mode RealTime Realtime、Simulate 按上下键 Comm Setup PaRa DO、Temp Current Setup 0.0mg/L 20mA 20.0mg/L Setup high and low limit of 4-20 mA corresponding measurement range. -
Page 27: System Setup
FDO-99E Fluorescence Method Dissolved Oxygen Analyzer Product Manual 8.2.3 System Setup Main Menu System Setup 按上下键 English、Chinese Measure Setup Language English Output Setup BL Delay 0min Record 10min System Setup System Setup Date 17-07-17 Time 08:08:08 In order to save energy and prolong the life of LCD backlight, you can set the delay time. When the delay time is 0 min, backlight keeps on. -
Page 28: 1Calibration
FDO-99E Fluorescence Method Dissolved Oxygen Analyzer Product Manual 8.2.4.1 Calibration Maintain Cali 28.04 Cali Zero Free Calibrate Clean Cali Span Clear Sat Zero 0.01 Calibrate Sat Span 1.19 Temp Zero 27.10 Temp Span 24.80 Our product is calibrated strictly before leaving the factory. Please contact with manufacturer for advice before setting calibration on your own. -
Page 29: 3Reset Setup
FDO-99E Fluorescence Method Dissolved Oxygen Analyzer Product Manual 8.2.4.3 Clear Setup Maintain Clear Setup Clear Setup Clear Setup Calibrate Clear Event Clear Event Clear Event Clean Clear Record Clear Record Clear Record Clearing Finished Clear Clear Setup Clear Setup Clear Setup... -
Page 30: Query
FDO-99E Fluorescence Method Dissolved Oxygen Analyzer Product Manual 8.2.5 Query Main Menu Query Query Event Event Maintain Date 17-07-17 Date 17-07-17 Query Event Query Record Time 08:08:08 Time 08:08:08 Query Version Set Language Query Now Query Query Record 0 Record... -
Page 31: Sensor Cleaning
FDO-99E Fluorescence Method Dissolved Oxygen Analyzer Product Manual 9.2 Sensor Cleaning Clean the surface of sensor with water flow. If there is residual debris left, please wipe it with a wet soft cloth or scrub gently with soft brush (soft toothbrush is optional).Don’t put the sensor in the sun or in places where is reflected by sunlight. -
Page 32: Common Troubleshooting
FDO-99E Fluorescence Method Dissolved Oxygen Analyzer Product Manual 10、Common Troubleshooting Phenomenon Possible Causes Handling Method Power supply Check the power supply, or No display in the connected or fuse is blown. replacing fuse, fuse transmitter specification is 0.2 A. 1.The connecting line of... -
Page 33: Relation Table Of Oxygen Dissovled Value And Water Temperature
FDO-99E Fluorescence Method Dissolved Oxygen Analyzer Product Manual 11、Relational Table of Oxygen Dissolved Value and Water Temperature Oxygen Dissolved Value under Oxygen Dissolved Value under Temperature Temperature normal atmospheric pressure normal atmospheric pressure of ℃ ℃ of 101.325 kpa mg/L 101.325 kpa mg/L... -
Page 34: Quality Insurance
FDO-99E Fluorescence Method Dissolved Oxygen Analyzer Product Manual 12、Quality Insurance Shandong Dongrun Instrument Science and Technology Co., Ltd, guarantees the important components and technology of instrument body one-year warranty period from purchase date. During the warranty period if the product has problem, please package instrument properly and freight prepaid shipped back to us. Our customer service department will check the damage cause of the instrument. - Page 35 Shandong Dongrun Instrument Science and Technology Co., Ltd ADD: NO.1 Xiulin Road, Laishan District, Yantai City, Shandong, China TEL: 0086-535-3971626 FAX: 0086-535-6919362 WEB: www.cndongrun.com E-MAIL: bobby@cndongrun.com...
