Summary of Contents for Rover Robotics Open Rover

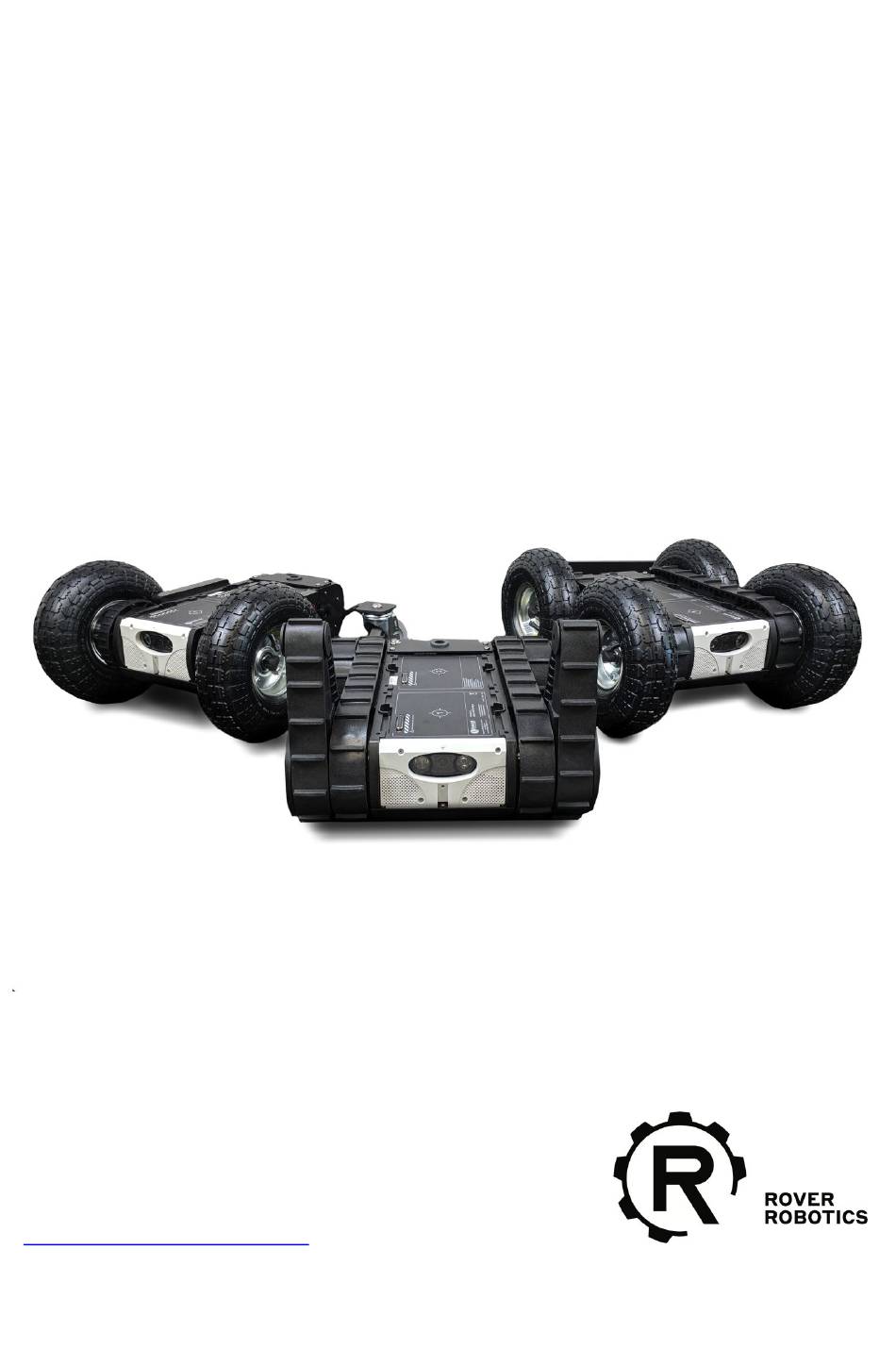

- Page 1 2018 Edition O pen Rover Quick Start Guide w ww.roverrobotics.com ...
- Page 2 Table of Contents Safety Information Basic Setup Pre-use Setup Installing the Battery Powering On the Robot Installing the Wheels or Flippers B attery Charging the Battery Outside of the Robot O pen Rover User Manual Rev A 06/2018 ...
- Page 3 Keep fingers and other body parts away from moving parts at all times. ● Care should be taken when running the Open Rover near pedestrians, small children, or objects that can be harmed. Be aware of your and the robot’s surroundings at all times.
- Page 4 Basic Setup 1) Pre-Use Setup A) Installing the Battery 1) The battery bay is located on the side of the robot. To open the battery bay, grip the “Closing Knob” and push in, turning the knob in counter-clockwise direction. You should feel a slight “pop”...
- Page 5 B) Powering On the Robot Robot There is a red power button on the fan side of the robot’s main chassis, opposite of the battery door. Power On: Insert the battery into the robot, or if the robot is in sleep mode, hold down the power button for 2-3 seconds and release.
- Page 6 Next install the wheel washer plus M5 locknut for the opposite side of the battery door,and wheel washer plus M5 thumb nut for the battery door side of the robot. O pen Rover User Manual Rev A 06/2018 ...
- Page 7 Caster Wheel Assembly: Install the caster wheel bracket assembly using included M4 by 12mm screws and a flat screwdriver. Apply mild-medium thread locking compound if needed. Flippers: Flippers install the same way as wheels, but they also have a secondary engagement on the inner shaft.
- Page 8 2) Battery A) Charging the Battery Outside of the Robot ● After removing the battery from the Open Rover, align the charger and battery connectors and plug the adapter into an AC wall outlet. ● Battery is fully charged when the indicator on the top of the battery shows 5 full black bars, or when the indicator light on the top of the charger turns green (if you choose to, it is alright to leave the battery on the charger).
