INSTRUCTION
MANUAL
Models: ROMA48HSXX, ROMA48HSB22XX, ROMA56HSXX, ROMA56HSB22XX,
ROMA48JHXX, ROMA48JHB22XX, ROMA56JHXX, ROMA56JHB22XX
CAUTION
Read Instructions carefully
for safe installation and
fan operation

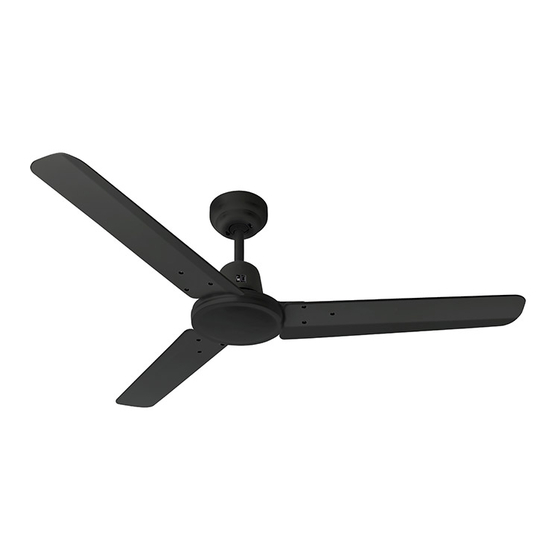

(Fan pictured is for illustration purposes only.
Styles may vary according to the specific models.)
Ceiling Fan Installation Manual, Rev 1.1
ROMA series
• INSTALLATION
• OPERATION
• MAINTENANCE
• WARRANTY
INFORMATION
DIY
MUST BE INSTALLED
BY A LICENSED ELECTRICIAN
Advertisement
Table of Contents
Related Manuals for Revel AIR ROMA Series
Summary of Contents for Revel AIR ROMA Series
- Page 1 INSTRUCTION MANUAL (Fan pictured is for illustration purposes only. Styles may vary according to the specific models.) Ceiling Fan Installation Manual, Rev 1.1 ROMA series Models: ROMA48HSXX, ROMA48HSB22XX, ROMA56HSXX, ROMA56HSB22XX, ROMA48JHXX, ROMA48JHB22XX, ROMA56JHXX, ROMA56JHB22XX • INSTALLATION CAUTION • OPERATION Read Instructions carefully MUST BE INSTALLED...
-
Page 2: Safety Precautions
THANK YOU FOR YOUR PURCHASE Thank you for purchasing this quality RevelAIR ceiling fan. To ensure correct function and safety, please read all instructions before using the product and keep all instructions for future reference. SAFETY PRECAUTIONS 1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety. -
Page 3: Before Installation
BEFORE INSTALLATION Unpack the fan and carefully identify the parts. Please refer below. HANGSURE FAN: ROMA FAN WITH LIGHT ROMA FAN WITHOUT LIGHT 1. Blades with mounting screws x 3 sets 1. Blades with mounting screws x 3 sets 2. Pre-assembled fan motor, down rod, 2. - Page 4 BEFORE INSTALLATION Unpack the fan and carefully identify the parts. Please refer below. J-HOOK FAN: ROMA FAN WITH LIGHT ROMA FAN WITHOUT LIGHT 1. Blades with mounting screws x 3 sets 1. Blades with mounting screws x 3 sets 2. Pre-assembled fan motor, down rod 2.
-
Page 5: Installing The Mounting Bracket
INSTALLING THE MOUNTING BRACKET • The ceiling fan must be installed in a location so that the blades are a minimum 300mm spacing from the tip of the blade to the nearest objects or walls, including bulkheads and beams. • Secure the hanging bracket to the ceiling joist or structure that is capable of carrying a load of at least 30kg, with the two long screws provided (timber use only). -
Page 6: Blade Installation
BLADE INSTALLATION BLADE ATTACHMENT 1. Align the two mounting blade screws on the blade to the two mounting holes on the fan motor assembly and secure the blade to the fan motor assembly, ensuring they are tightened equally and evenly. Take care not to over tighten as this can damage the blades. 2. -
Page 7: Hanging The Fan
HANGING THE FAN Hangsure Fan: Lift the fan assembly onto the mounting bracket. Ensure the registration slot (A) of the hanger ball is positioned on the stopper (B) of the mounting bracket (C) to prevent the fan from rotating when in operation. - Page 8 ELECTRICAL WIRING DIAGRAM WIRING DIAGRAM: For installations using wall control only WIRING DIAGRAM: WHEN USING REMOTE CONTROL (Remote sold separately and suitable for HANGSURE model only) A single-pole switch must be placed in the same room as the fan as per local wiring regulations AS/NZS 3000. Please follow the above wiring instructions before installation of remote kit. A remote kit does not substitute for a terminal switch and doing so will void warranty.
-
Page 9: Finishing The Installation
FINISHING THE INSTALLATION Hangsure Fan: Connect the connector plugs together. Cover the mounting bracket with the canopy. Ensure all electrical wiring is tucked inside the canopy and that the wires are not damaged during this step. Secure the canopy to the hanger bracket using the screws provided. Do not overtighten the screws as this will misalign canopy potentially causing sounds. -
Page 10: Using Your Ceiling Fan
USING YOUR CEILING FAN FAN WALL CONTROL (typical installation, plate and light switch not supplied) Turn on the power and check the operation of the fan. • OFF Position – Fan off • 3rd Position – Low fan speed • 2nd Position – Medium fan speed •... -
Page 11: After Installation
AFTER INSTALLATION WOBBLE: Note: Ceiling fans tend to move during operation due to the fact that they are mounted on a rubber grommet. If the fan was mounted rigidly to the ceiling it will cause excessive vibration. Movement of a few centimetres is quite acceptable and does not suggest any problem. -
Page 12: Important Facts
IMPORTANT FACTS All electric motors, including fan motors make some noise and may feel hot if touched – this is NOT A FAULT. Ceiling fans tend to move during operation as they are not generally rigid-mounted.Rigid mounted ceiling fans generate excessive vibration (which leads to noise) and stress on their mountings. Movement in a ceiling fan is not uncommon and does not suggest the fan will fall down. -
Page 13: Warranty Information
WARRANTY INFORMATION Important ceiling fan warranty information for owners and installers. Our goods come with guarantees that cannot be excluded under Australian Consumer Law. You are entitled to a replacement or refund for a major fault and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. - Page 14 www.dekafans.com.au...
