Instruction Manual

mass flow meter for compressed air

_______________________________________________

Druckluftbilanzierungssystem

VARIOMASS

MAX

EXIT

MAX

ENTER

Version: English V10/02

VARIOMASS

DIELEN

ENTER

DIELEN

EXIT

Fault

Table of Contents

Need help?

Do you have a question about the VARIOMASS and is the answer not in the manual?

Questions and answers

Summary of Contents for DIELEN VARIOMASS

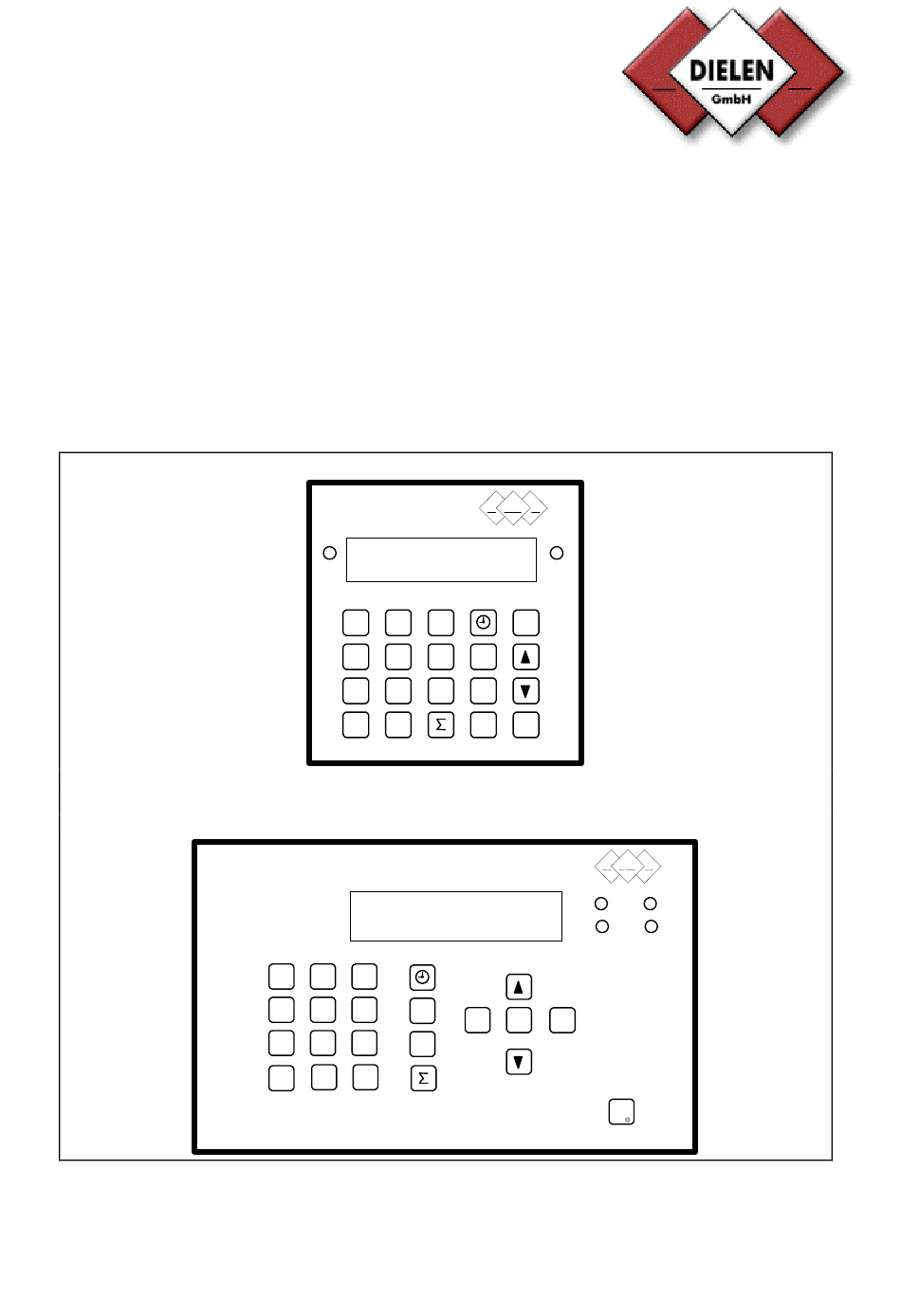

Page 1 Instruction Manual mass flow meter for compressed air _______________________________________________ Druckluftbilanzierungssystem VARIOMASS DIELEN VARIOMASS MENU ENTER EXIT VARIOMASS DIELEN ENTER MENU EXIT Fault Version: English V10/02...
Page 2: Table Of Contents
6.4 Check preset value of Data logger ................33 6.5 Read out Data logger ....................34 6.6 Technical Data ......................37 6.7 Data Communication problem ................... 37 7. VARIOMASS model numbering system ............... 38 8. VARIOMASS meter with multiple sensor selection............. 39...
Page 3: Introduction
0. Introduction This manual is for all VARIOMASS insertion thermal mass flow meter for standard pipe sizes from 62 mm (2 ½ ") up to 500 mm (20") and the In-Line thermal mass flow meter from ½“ up to 2“ pipe sizes.
Page 4: Technical Data's
1. Technical Data's: 1.1 Transmitter (Remote Electronic): power supply: 230 VAC with 50 Hz./ 60 Hz.(optional 110 VAC or 24 VDC) ambient temperature range: 0° to + 45°C protection class: IP 54 for panel mounting (Option: NEMA 4 (IP 65) with watertight field enclosure) Display modus: - actual flow rate in Nm³/h, m³/min or L/min or SCFM optional with standard (Norm) conditions of 20°C, 1 bar absolute and 0% relative humidity...
Page 5 process temperature: normal : 0°C up to 70°C max.: 150°C for ceramic or 200°C for SS sensor ambient temperature: - 10°C up to + 50°C process pressure: 4 to 12 bar g (other on request) gas media: pressured air (optional other gases) Sensor material: Stainless Steel (316 SS) or optional ceramic process connection:...
Page 6: Mounting
2. Mounting 2.1 Checking sensor probe length 2.1.1 Insertion meters The probe length of the shaft "L" is adequate to the inside diameter of the pipe. probe shaft Sensor window O 90 mm Abb. 1a) insertion flow meter with stainless steel sensor The probe shaft length "L"...
Page 7: Installation Of The Sensor
thread size N O 90 mm Abb. 1b) dimensions of the In-Line Meters 2.2 Installation of the sensor Proper installation of the flow section assembly is of great importance. It is important to install the flow meter at a position where the gas is dry or above the dew point temperature. A minimum of 10 x diameter up- and 5 x diameter downstream area without any equipment which disturb the flow profile are necessary.
Page 8 flow section 1/3 flow section 2/3 flow section min. 10 x D min. 5 x D FLOW senor enclosure cable gland Abb. 2a) Insertion meter: straight flow section with two 90°-elbows total flow section 1/3 flow section 2/3 flow section 10 x D 5 x D UPSTREAM...
Page 9: Mounting For Insertion Meters
2.3 Mounting for Insertion Meters 2.3.1 Process connection The process connection should be a welding socket with ½ " inside thread or optional a counter flange. The welding process connection should be in a right angle to the pipe and should match the center of the pipe (s.
Page 10 2.3.2 tube fitting The standard process connection for the insertion flowmeter is a shaft mounted tube fitting "SWAGELOK " which is bored through. This fitting can be combined with a flange (DIN or ANSI) with a thread for R 1/2" for the process connection. Use Teflon band to fix the SWAGELOK fitting with the pipe welding socket.
Page 11 Sensor enclosure welding couple Swagelok-bored through with 1/2" thread fitting b = 33 mm Di/2 "A" 60 mm 20 mm PG cable cland Sensor probe length "L" Abb. 6a) Insertion Sensor with standard Swagelok fitting welded 1/2" couple ball valve 20 mm Di/2 170 mm...
Page 12: Mounting For In-Line Meters
Abb. 7) In-Line Sensor with NPT thread 2.5 Installation of the transmitter The transmitter of the VARIOMASS can be a DIN enclosure for panel mounting or a wall mounting enclosure with the protection class IP 65 (NEMA 4). 2.5.1 Installation of the DIN enclosure The transmitter electronic of the flow meter is in a DIN rack enclosure for panel mounting with the outline dimensions of 96 mm x 96 mm x 140 mm (s.
Page 13 VARIOMASS DIELEN MENU 91,5 EXIT ENTER ca. 150 mm Abb. 8a) dimensions of the DIN transmitter enclosure The panel cutout should be 92 mm x 92 mm. Use a crew driver for the installation of the mounting bracket to fix the enclosure with the panel.
Page 14: Electrical Connection
3. Electrical connection 3.1 Transmitter in the DIN enclosure Please keep the electronic dry and clean and install all wiring without power supply. The ambient temperature of the electronic should not go above 45°C. 3.1.1 Power supply On the back side of the electronic are the terminal blocks for input and output signals (s. Abb. 9). The power supply for the remote transmitter electronic is 230 VAC / 50 Hz.
Page 15 Data protocol No. 1: No Handshake (No Parity) print every 10 Seconds We have use the following cable configuration for a Matrix printer (EPSON): transmitter (VARIOMASS): PIN 9 connector: receiver printer (EPSON) PIN 25 connector: Note: For you printer cable configuration see your printer manual section serial input port...
Page 16: Transmitter In The Wall Mounting Enclosure
3.2 Transmitter in the wall mounting enclosure When you open the conjunction box of the wall mounting enclosure with a screw driver you find the following terminal strip: RS 232 RS 485 24 V Jumper for power supply 12 V fuse puls output EXT.
Page 17 Sensor elements active RTD passive RTD (50 Ohm) (500 Ohm) TB 2 TB 1 Power Supply signal output: (0 ... 20 mA Signal) Ground (G) white green + 24 VDC (P) brown yellow + 0 ... 20 mA non linear (I) Return (R) Abb.
Page 18: Power Up The System
4. Power up the system Before power up the system be sure that all wiring is correct. Please check the power supply (230 VAC or optional 110 VAC or 24 VDC) is only on the PIN called "L1" & "N" on the terminal block. Important note: If you find no sticker on the transmitter enclosure with the optional power supply of 110 VAC or 24 VDC than the standard power supply of 230 VAC is necessary.
Page 19: Check Preset Value
MENU Menu key starts the program level Maximum key for maximum flow values Note: After pressing a key the system went into the standard readout (flow rate) after 30 seconds without pressing any further key (except in the program - MENU). With the [EXIT] key you will go into the standard readout (flow rate) at any time.
Page 20: Change Preset Value
The shown Serial Number (SN) must be the same as the SN of the sensor. With the [EXIT] key you can leave the Information level or automatically after 30 seconds.. 4.3 Change preset value Press the [MENU] key to go to the program level The following information will be on the display: Please enter the code (Password): [1] [3] [7] [9] and than press the [ENTER] key For pressing [ENTER] again you will go into the main program level...
Page 21 "English" for English menu language. To change the language from German to English or other way round press the Information [ i ] key and than the [ENTER] key to confirm your selection which will bring you to the previous level: For changing date and time press the [ENTER] key or press the [EXIT] key to leave the menu program.
Page 22 4.3.3 flow range display readout: YES - press [ENTER] or NO press [ ] key for next level: Example for selected measurement unit of Nm³/h: This flow range is only for the analog linear outputs of the transmitter and not for the display flow value which can go much higher.
Page 23 Insertion meter to measure correctly! 4.3.6 Output signal The VARIOMASS electronic has to two different analog outputs: The voltage output is: 0 to 10 VDC equal to the flow range and can not be changed. The current output can be chosen between: 0 to 20 mA or 4 to 20 mA "YES"...
Page 24: Options
4.3.8 LCD Filter press [ENTER] if you want to change the response time for the LC-Display filter or press [EXIT] to leave the program menu level. The standard response time is 1 second an can be change to 5, 10 or 20 second for the case that the value of the display changes are too fast.
Page 25 (maximum 9999 Seconds) and press ENTER to confirm. Than press the EXIT key to level the MENU (Program) level. The serial output is now completed and your printer or PC should print the following messages: VARIOMASS Tag No.: XXXX Serial No.:...
Page 26 Input the pulse rate for example 1, 10 or 100 m³/pulse depending on the flow rate. Press ENTER to confirm your input value 4.4.3 Relay Alarm option The two relay K1 and K2 can be configured for the high and low flow alarm or for the two totalizer Z1 and Z2.
Page 27: Set Maximum Flow Value Record
4.5 Set maximum flow value record The VARIOMASS electronic allows to record the 3 maximum flow values above a set point within a preset time. Press the [MENU] key from the standard readout to go to the program level The following information will be on the display:...
Page 28: Reading Maximum Flow Value
Press the [EXIT] key o leave this program level to return to the standard readout. Now the maximum flow value record is completed and the unit will be record the maximum flow value between the start and stop time which is over your max. flow rate (limiting value). 4.6 reading maximum flow value From the standard readout press the [MAX] key to read the maximum flow value.
Page 29 press the down key [ ] to show the time of the second value up / to press the down key [ ] to show the maximum flow rate of the second value press the down key [ ] to show the time of the third value up / to press the down key [ ] to show the maximum flow rate of the third value Note: There are a maximum of three values and the third one can be the one with the highest peak...
Page 30: Totalizer
5. Totalizer VARIOMASS has two independent totalizer (Z1 and Z2). Each totalizer is reset able and has to setup in the program (MENU) with start and stop time. During this time period the flow will be summed in the totalizer in cubic meter (m3) for the flow units Nm³/h or m³/min and in Liter (L) for the unit L/min..
Page 31: Reading Totalizer
Press [ENTER] to setup totalizer number 2 as totalizer number 1 Press [EXIT] after setting totalizer #2 for leaving the program and go to the standard readout. All parameters are saved in EPROM also by disconnecting the power supply after 5 minutes after the last input.
Page 32: Data Logger
6.0 Data Logger 6.1. Introduction In case that your VARIOMASS system is equipped with the Data Logger option, you will find a mark inside of electronic enclosure („with data logger“). This data logger has an internal memory of 4 Mbytes. The electronic saves the actual flow of the pressured air in a programmable time period from one day up to a few years.
Page 33: Programming Data Logger
Note: Do note use in the time period of saving 1 second for more than 4 hours per day. For longer period (> 1 day) we recommend to use a time period of 60 seconds. 6.3. Programming Data Logger The Data logger needs for activating the following pre-set values: Time period of saving interval Time and date for start the measuring Time and date for stop the measuring...
Page 34: Check Preset Value Of Data Logger
Please put in the time period for saving interval with value between 1 second up to 999 seconds. Confirm your input value with key [ENTER] and go to the next step Note : We recommend to set the time frequency of 60 seconds for records time period of more than one day.
Page 35: Read Out Data Logger
Rev. less than 2.8, for example Rev. 2.1 to 2.7 (delivered before May 2001), than you must set in the "Dielen.ini" file at the end "Version=1", instead of "Version=0" and than close that file and store the changes. On this occasion the total consumption, the calibration date and the Tag number won't pass out.
Page 36 PC serial port COM 1 or COM 2 and one end with the black connector to the VARIOMASS field enclosure serial RS 232 port (left side of both sub d connectors) and power up the electronic. IV) basic setup of the software: 1.
Page 37: Technical Data
Tab.4) terminal block inside the VARIOMASS enclosure *) Terminal Block instead of RS 232 Sub-D Male connector: The VARIOMASS electronic has a terminal block on the electronic board. It is possible to use this block instead of the Sub-D Male connector.
Page 38: Variomass Model Numbering System
7.) VARIOMASS Model numbering system Transmitter mounting: 0 = panel mounting (Standard) 1 = wall mounting enclosure 2 = wall mounting enclosure (with memory) Cable length between Sensor - Transmitter: 06 = 6 Meter (Standard) 12 = 12 Meter 24 = 24 Meter...
Page 39: Variomass Meter With Multiple Sensor Selection
8) VARIOMASS meter with multiple sensor selection This additional chapter is for all field electronics (IP 65) with multiple sensor (example one Insertion meter plus one or two In-Line meters) selection 8.1) Change preset value Press the [MENU] key to go to the program level...
Page 40 Press the Information key [ i ] to show the next available sensor type: < Press the [ENTER] key to confirm your selection. Then press the [EXIT] key to leave the program level for the sensor type. Note: After you choose the sensor type you must wait 5 minutes before you can switch off the power supply of the system otherwise the changing are not stored in the EPROM.
Page 41 8.3. Check preset value Press the key for reading all preset value: next press [ ] or [ENTER] key (within 30 sec.) next press [ ] or [ENTER] key next press [ ] or [ENTER] key next press [ ] or [ENTER] key next press [ ] or [ENTER] key Note: The Serial Number shown is the one of the selected sensor type.
