Summary of Contents for Controls Solutions VFC300
- Page 1 VFC300/350 WiFi Data Loggers VFC Vaccine Montoring Solution Instructions for getting your VFC300/350 data loggers and the Cloud account operating...
- Page 2 Contact Information and Resources Controls Solutions, Inc. 35851 Industrial Way St. Helens, OR 97051 Toll Free 1-888-311-0636 Local phone 503-543-5416 Website: www.vfcdataloggers.com E-mail: sales@vfcdataloggers.com...

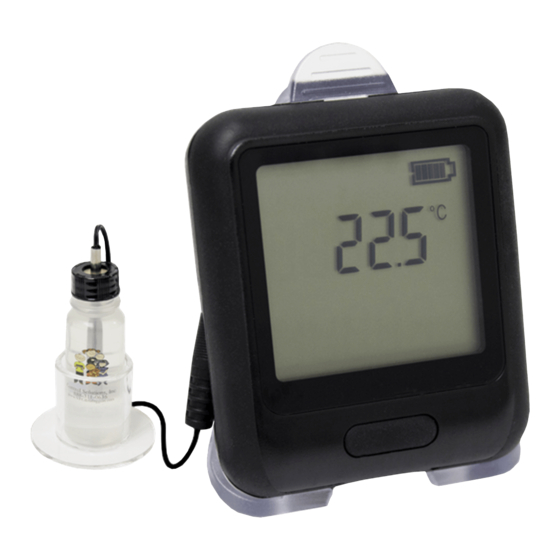

- Page 3 VFC300 Vaccine Monitoring Kit...
- Page 4 VFC300/350 Vaccine Monitoring Kit The VFC300 Kit includes: The VFC350 Kit includes: • • VFC300 data logger VFC350 data logger • • Stainless steel temperature sensor with 10’ cable in a Two stainless steel temperature sensors with 10’ shatter-proof glycol filled bottle cables in shatter-proof glycol filled bottles •...
- Page 5 Installing probe/acrylic stand into fridge/freezer Zip Tie...
- Page 6 Securing probe cable in fridge/freezer Zip Tie...
- Page 7 Attach wall mount to fridge/freezer...
-
Page 8: Downloading The Software
Downloading the software You can download the software from Control Solutions website at www.vfcdataloggers.com... - Page 9 Downloading the software The software is now installed. It will put an ICON on your desktop.
- Page 10 VFC300/350 Set-up Configuration To sign-up for your Cloud account you need to contact Control Solutions sales, sales@vfcdataloggers.com or call 888-311-0636 You will receive Cloud service information forms that need to be completed and returned Within 1-2 days an automated e-mail will be sent to you with a link and instructions...
- Page 11 VFC300/350 Set-up Configuration Sign into your Cloud account by clicking on the Sign In button and then enter your e-mail and password that you created Click Sign In ...
- Page 12 VFC300/350 Set-up Configuration After your Cloud account has been set-up click “Set-up Devices”, then click “On The Cloud” ...
- Page 13 You will now be prompted to connect your device to the PC with the shorter micro-USB cable provided The USB port on the VFC300 is protected by a rubber cover, remove this to gain access to the USB port...
- Page 14 VFC300/350 Set-up Configuration After you connect the VFC300/350 to the PC you will see the next two screens The second screen shows a list of available networks. If the list is blank press the “Refresh Connections” button...
- Page 15 VFC300/350 Set-up Configuration Now select the wireless network that you want to communicate to and type in the password If you use a hidden network scroll to the bottom of the list and select “Join Other Network” ...
- Page 16 VFC300/350 Set-up Configuration If you need to configure additional network settings such as static IP address, tick the “Enter Advanced Network Options” box before clicking “Next”...
- Page 17 VFC300/350 Set-up Configuration The following information applies if you selected “Advanced Network Options” Enter the IP address to configure the device along with the Subnet Mask and Default Gateway It is also possible to lock the device so that it will only connect to one wireless access point. This may be necessary if you have multiple access points with the same SSID.
- Page 18 VFC300/350 Set-up Configuration Enter your device name. This page shows the default settings for your VFC300/350, any changes you wish to make can be done through your FilesThruTheAir™ Cloud account. Once you have entered your VFC300/350 name click ‘Next’.
- Page 19 VFC300/350 Set-up Configuration Once your VFC300 is associated with your FilesThruTheAir™ Cloud account you will get this confirmation screen. Click ‘Finish’ to return to the start screen ...
- Page 20 VFC300/350 Set-up Configuration At the start screen select “View Devices” then select “On The Cloud” This will take you to the device page of the Cloud...
- Page 21 VFC300/350 Cloud and Device Set-up Configuration At device settings we are going to set-up the VFC300/350 Click on each of the icons at the bottom and select the proper settings Make sure and perform all changes before moving to the next Icon ...
- Page 22 VFC300 Display Icons WiFi Signal Icon Alarm Icon (Not Displayed) Not connected to a network (Not Displayed) No Alarms (Solid) Communications with PC/Cloud OK (Flashing) Alarm (Flashing) Lost threshold triggered communications with PC/Cloud...
- Page 23 VFC300 Display Icons Battery Icon Max Icon (Not Displayed) Battery OK The Maximum recorded value is being displayed. (Solid) Charging Min Icon (Flashing) Battery Low - Recharge The Minimum recorded value is being displayed.
- Page 24 VFC300 Display Icons Device LCD Screens Use the button on the Device to cycle through the display screens Home Screen Max Screen VFC200 shown VFC200 Shown Max Screen Home Screen displays Maximum displays recorded value(s) current since last reset. readings...
- Page 25 VFC300 Display Icons Device LCD Screens Use the button on the Device to cycle through the display screens WiFi Signal Screen Min Screen Min Screen RSSI (Received displays Minimum Signal Strength recorded value(s) Indication) Screen since last reset. displays current Signal Strength.
- Page 26 VFC300 Display Icons Device LCD Screens Use the button on the Device to cycle through the display screens WiFi Signal Screen Min Screen VFC200 Shown Min Screen RSSI (Received displays Minimum Signal Strength recorded value(s) Indication) Screen since last reset.
- Page 27 Control Solutions, Inc. 888-311-0636 Thank You...
