Summary of Contents for Smart Kitty SMARTKITTY

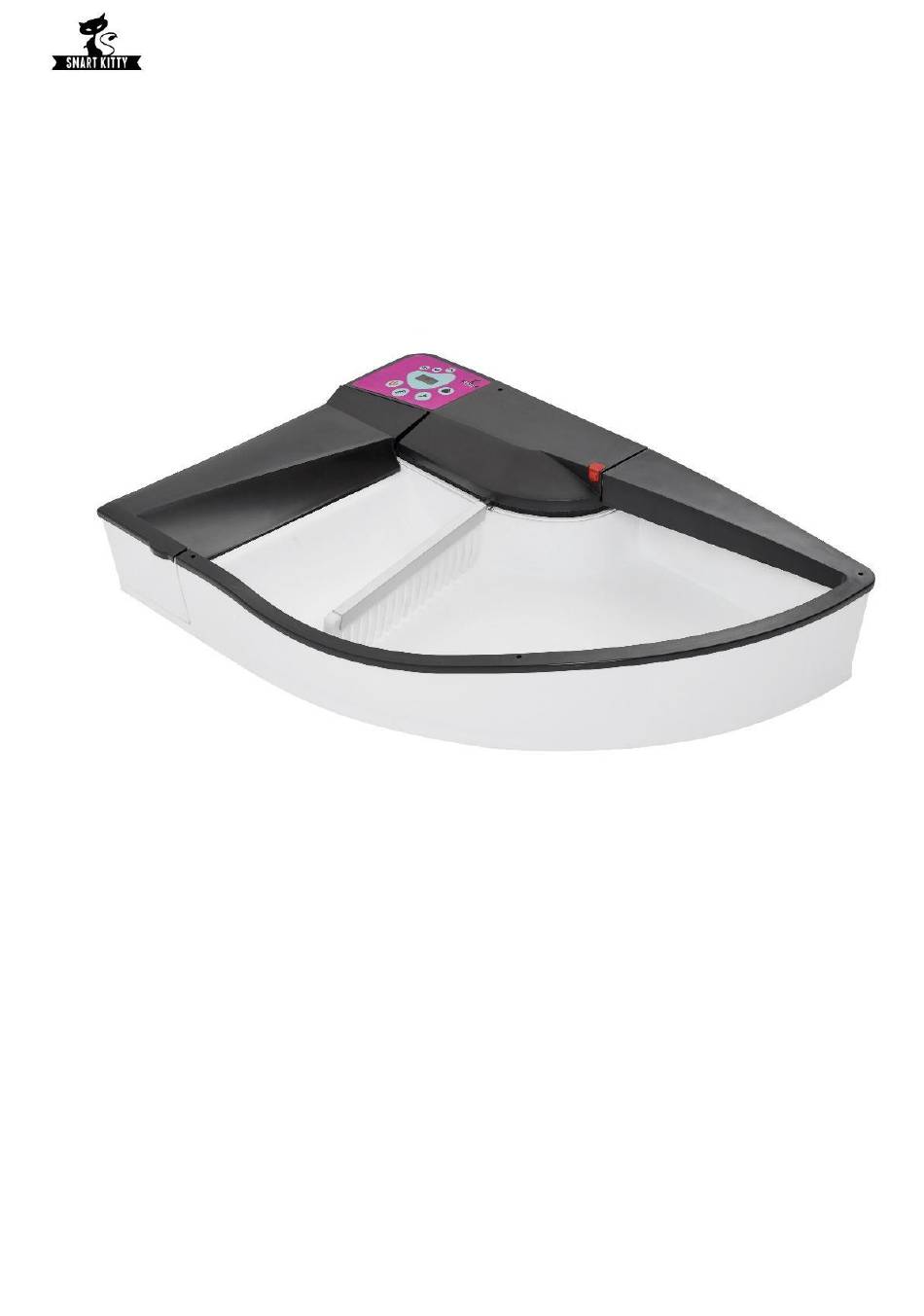

Page 1 SMARTKITTY® USER MANUAL...
Page 2 Index Introduction Copyrights Safety hazards Size and weight of SmartKitty® litter Litter box modules Start-up procedure 6.1. Cover Assembly 6.2. Tent assembly. Operating principles 7.1. Cat sense: Normal 7.2. Cat sense: High Keeping the litter box clean 8.1. Dismantling the litter box for cleaning 8.2.
Page 3: Safety Hazards
SmartKitty® is perfectly adapted for all cat sizes and needs. To ensure a safe use, we have implemented sensors and our patented solutions. SmartKitty® is perfect for dealing with toilet waste of any size. The waste is pushed aside into a hygienic container which remains closed.
Page 4: Size And Weight Of Smartkitty® Litter
4. Size and weight of SmartKitty® litter Weight: 5kg...
Page 5: Litter Box Modules
5. Litter box modules The device is constructed of 3 independent modules, each of which can easily be removed. 1. Electrical module 4. Cat excrement container 2. Power 5. Disposable excrement containers 3. Rakes 6. Base box...
Page 6: Start-Up Procedure
6. Start-up procedure 1. For the purpose of transportation, the litter box is secured from damage by a packaging material. All protective films and polystyrene must be removed. Protective films and packaging materials are not toys. Keep away from children and animals! 2.
Page 7: Tent Assembly
6.2. Tent assembly. 1. Spread the tent top on a flat surface. 2. Insert the frame endings into the slots of the main bowl. 3. Strain the top with Velcro closure tightening.
Page 8: Operating Principles
7. Operating principles 7.1. Cat sense: Normal According to the personal control panel settings, the automatic cleaning process starts in a few minutes after the cat has used the litter box. The excrements are scooped into a special container which closes after receiving the waste.
Page 9: Keeping The Litter Box Clean
8. Keeping the litter box clean 8.1. Dismantling the litter box for cleaning We recommend our video manual on https://goo.gl/kk9aZK WARNING: Before starting the cleaning process make sure that litter box is unplugged and the power supply is in a safe place away from it. 1.
Page 10 5. Pull out the rakes from the aluminium profile. 6. Pull out the module with the control panel up and place it away from areas exposed to water, damp or damage. → → WARNING: PULLING OUT THE MODULE REQUIRES PRESSING with one hand 7.
Page 11: Cleaning The Litter Box
8.2. Cleaning the litter box Modules 3,4 and 6 can be cleaned. Litter box components should be cleaned with warm water and cleaning solutions. WARNING: NEVER expose the electrical module (1) to water. WARNING: Do not use sharp abbrasive tools which can damage or scratch the surface. Leave the modules to dry or dry them well with a cloth or paper towel.
Page 12 8.4. Assembling the litter box after the cleaning process. 1. Place the grit container on a flat, dry and clean surface. 2. Insert the module with the control panel from above. → → 3. Turn the raking module 90 degrees left (clockwise) and insert plastic rakes into it.. 4.
Page 13: Panel Functions
9. Panel functions ‘SmartKitty” function 9.1. The basic panel function. It starts after pressing the red button. It resets previously programmed or currently operating functions. If the litter box is set to any mode, it is stopped immediately. The function stops all actions: raking, service, set.
Page 14 3. ‘Go to bin’ function Allows to prompt the raking process in the direction of the cat excrement container manually. This function is used to perform a faster working motion of the rakes.. Panel Screen Litter box 9.2. Working time and clock setting functions Setting the litter box time Press SET to enter the menu.
Page 15: Setting The Litter Box Working Time
Confirm the time by pressing OK.. A flashing minutes appears. Set the fixed time for the minutes with up/ down arrows. Confirm the time by pressing OK.. Setting the litter box working time Press SET to enter the menu By pressing up and down arrows find the ‘sleep hr’ function. Press OK to enter the ‘sleep hr’...
Page 16 A flashing ‘from- to’ appears. Set the fixed time for the beginning of standstill with up/ down arrows (‘from’). Confirm the time by pressing OK. ’To’ starts to flash. By pressing up/down arrows set the fixed time for the end of standstill. Press OK.
Page 17 Setting the working time after being used by a cat. The function used to set the start- up time is determined by the type of grit. The time should be set according to the grit producer recommendations. The most frequent time settings Gravel type Work time bentonite...
Page 18 The ‘cat sens’ setting. - high- the litter box stops working for a minute in the presence of a cat or other object - normal- the litter box does not stop working after sensing a cat or other object. WARNING! The litter box is equipped with the additional security system, which will allow for three attempts to remove the obstacle when overloaded before the system is stopped.
Page 19: Manual Control
Emergency functions 10.1. Manual control Manual rakes control „move – rak” use in case when liter box is jammed - this mode allows You to move rakes left and right Picture Manual LCD Screen view Clock Press SET Rakes movement --- - Use arrows to find option move-rak Rakes movement...
Page 20: Factory Reset
10.2. Factory reset Picture To do On LCD Screen Press at the same time SET, Arrow UP and OK DON’T WORK EVERY TIME, PLEASE TRY FACTORY RESET ! FEW TIMES Press OK Serial ID Rakes will go to „home” and then waste box Press ok on position serv Press OK when rakes in the same...
Page 21 10.3. Preparing module before sending Before sending please discuss details with us by sending email to office@smartkitty.eu to get closest adres (cheaper price for shipping) Picture What to do Press „key” Wakes will go to service position If this won’t work please move...
Page 22: Control Via Mobile Application
Unscrew rakes Dismantle rakes Pack electronic module Important !! Please send only elecronic module. Control via mobile application IMPORTANT! – APLICATION IS CURRENTLY IN REBUILDING (NOT AVAILABLE)
