Summary of Contents for MultiGP NVISION Junior Racer RTF

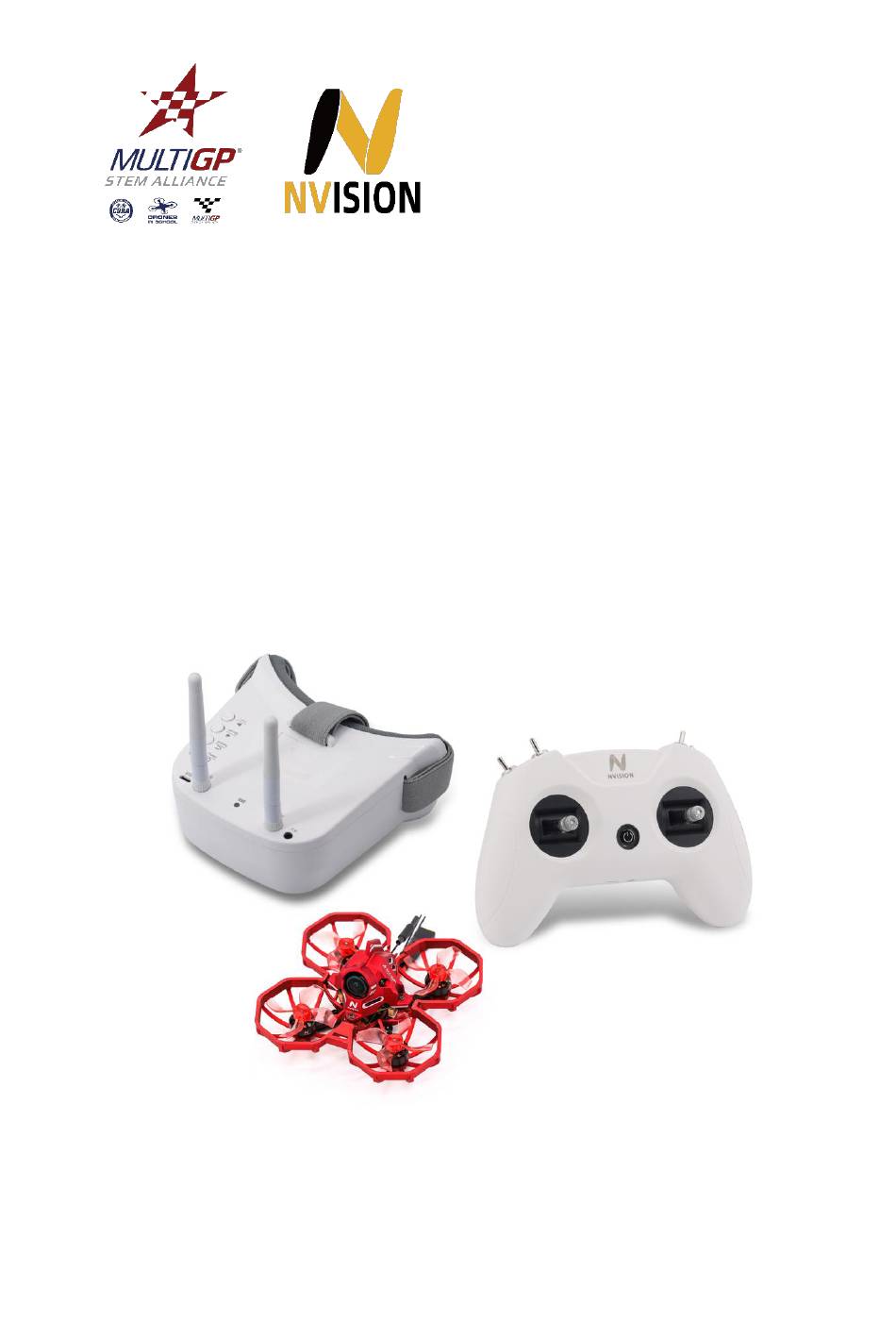

- Page 1 Junior Racer RTF Quick start manual...
- Page 2 catalog Product Include ..................1 Operate Junior Racer Whoop Drone ............2 Power On/Off ................2.1 Battery ..................2.2 Charge ..................2.3 F411 12A AIO FC ..................3 Description ..................3.1 Wiring ..................... 3.2 Operate the radio ..................4 Install Battery ................4.1 Power On ..................
- Page 3 Operate Junior Racer Whoop Drone *Power On/Off: connect the power cable of to Junior Racer 75 the battery, the power LED, receiver LED and FC LED are on, then the FC LED flashes and the receiver LED turns off. After using, unplug the connection, and all LED will turn off.
- Page 4 LED Status Reason solution Power LED off 1.Insufficient battery 2.FC is 1. Charge the battery 2. broken Replace the FC FC LED off and Receiver LED FC is broken Replace the FC solid FC LED flashes Bule at high Out of control or BB ringing There are many reasons, and frequency mode enabled...
- Page 5 Operate the radio ·Install Battery: remove the back cover of the transmitter, connect the battery inside to the power interface correctly, and install the back cover. ·Power On: Long press the power button for about 3 seconds, then pull the throttle to the lowest position, release the button after the radio vibrates twice, and the power indicator turns from green to blue, indicating that the radio is turned on.
- Page 6 NVISION A01 VTX Description: *Switchable power includes 0mW, 25mW and 200mW. *This VTX includes SmartAudio function. The flight controller can use the audio cable to communicate with the video transmitter. It allows the flight controller to know the frequency used by the VTX and make changes. *This VTX supports PitMode.
- Page 7 How to Change Frequency & Channel & Power Only support frequency and power change through the SmartAudio interface. Method 1: Use the OSD menu. Enter the OSD menu by radio transmitter sticks ( Pitch Stick UP and Yaw Stick Left). Then FEATURES ->...
- Page 8 Method 2: Use the Betaflig ht GUI command. W e could also use the Betaflig ht CLI c ommands to c hang e the freq uenc y and power of the VTX. For example, s et the freq uenc y to 5865 and power to 200mW ( 1 for 25mW / 2 for 200mW);...
- Page 9 TRANSMISSION FREQUENCY TABLE T his A01 VTX could s upport 3 freq uenc y table acc ording to your local law. T he tables below is for all the freq uenc y is v alid. USA freq uenc y table bleow. T he fr equenc y in red item is inv alid. Europe freq unc y table below.
