VEGA INSTALL
Welcome to the Ready Rig VEGA installation tutorial. Below, we will walk you through all of the necessary steps to
get your Ready Rig and VEGA connected and ready to go. If you come across any issues, drop us a line and we'll
get you an answer as soon as possible.
ATTENTION: Follow these instructions exactly as given. Each component part is made specifically for your Ready
Rig Equipment. Be careful not to fasten bolts or screws too tightly as this can strip the metal. If you have any
questions, please do not hesitate to get in touch. We are happy to assist you however we can.
Preperations
We're going to start off by opening up the box. The VEGA comes with all the tools you need to do the installation:
• #2 Phillips head screwdriver
• 7/16 wrench
• Two (2) packets of hardware
STEP 1

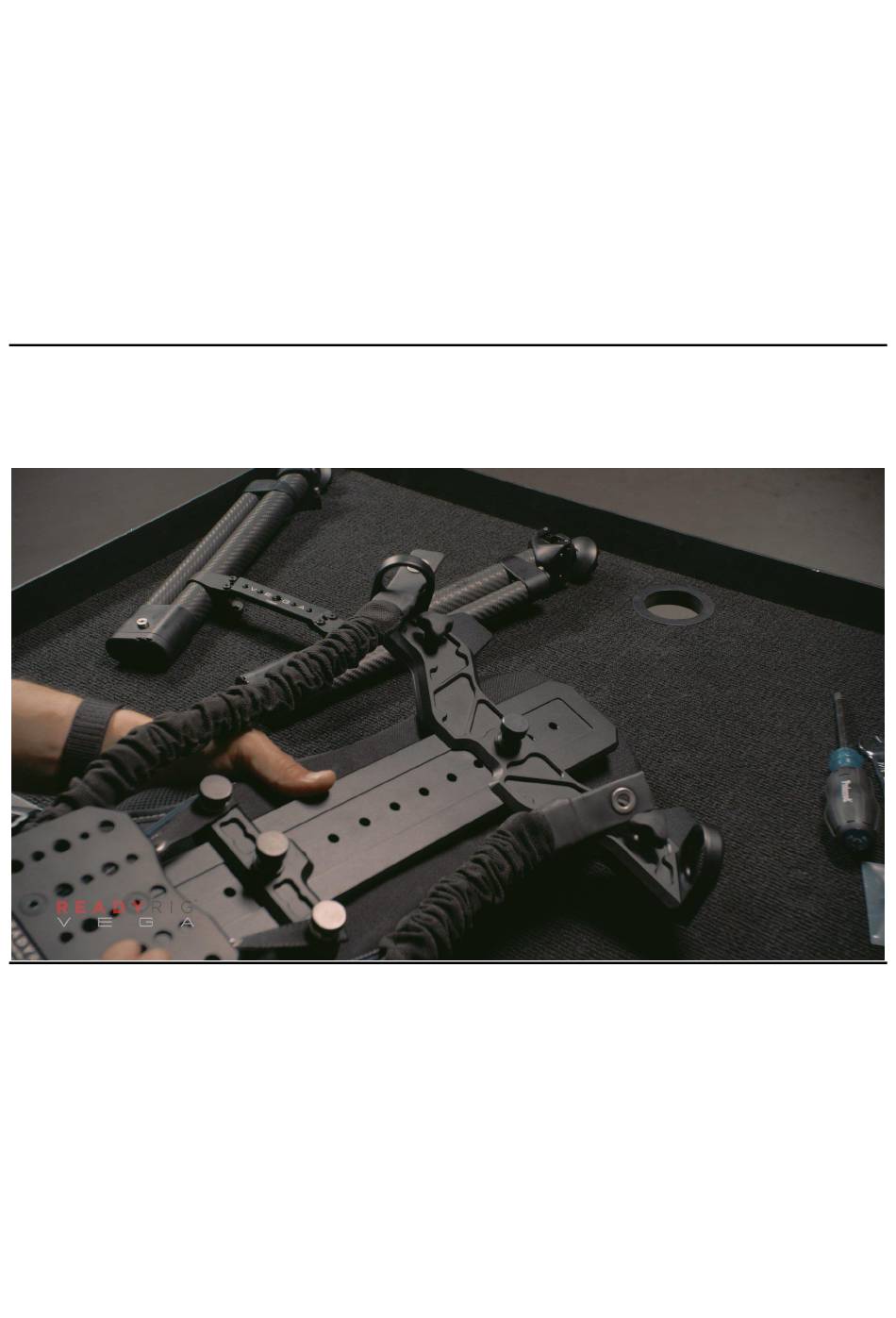

First, take your Ready Rig GS Vest and place it on a table.
Make sure you have all the provided tools and hardware packets nearby.
Advertisement
Related Manuals for Ready Rig VEGA
Summary of Contents for Ready Rig VEGA
- Page 1 Welcome to the Ready Rig VEGA installation tutorial. Below, we will walk you through all of the necessary steps to get your Ready Rig and VEGA connected and ready to go. If you come across any issues, drop us a line and we’ll get you an answer as soon as possible.
- Page 2 STEP 2 First, remove the bungie screws. Next, we’re going to remove the bungies themselves and place them on the table. We’re going to take off the spring plunger using the 7/16 wrench. Give it a good twist and thread off with your fingers.
- Page 3 STEP 4 Move the plate up to the top position. STEP 5 Take out the two long cheese plate screws.
- Page 4 STEP 6 Starting with the two long screws, we’re going to put them through the two bottom holes on the cheese plate and put the shorter screw on the top. Place the new spacers on the rig and thread the screws through the spacers using your fingers to tighten slightly. Move on with the Allen key and tighten down.
- Page 5 STEP 8 First we have to align the two holes and the screws. Place the two new bolts on the screws. STEP 9 Tighten down firmly with the 7/16 wrench until it bottoms out. STEP 10 Reattach the pad.
- Page 6 STEP 11 Next, we’re moving over to the four screws that hold on the loops. Use the #2 screwdriver to push down firmly and remove. Do this to both sides. STEP 12 Place the VEGA upside down on the table.
- Page 7 STEP 13 Align the four holes together. To ensure that they’re properly aligned, place the Ready Rig chassis and use fingers to attach. You should see the holes lined up.
- Page 8 TROUBLESHOOTING: If the holes are not aligning, separate the VEGA from the plate, insert the screws, and align the screws to the threads on the VEGA. If it starts to cross-thread, realign, and make sure that the screw is aligned perfectly.
- Page 9 STEP 15 Finally, move over to the bungie slider plate. Align the holes so that they line up with the VEGA. Place the other screws into the two holes. Using the Allen key, place it through the hole on the handle and tighten down on the screws until they bottom out.
