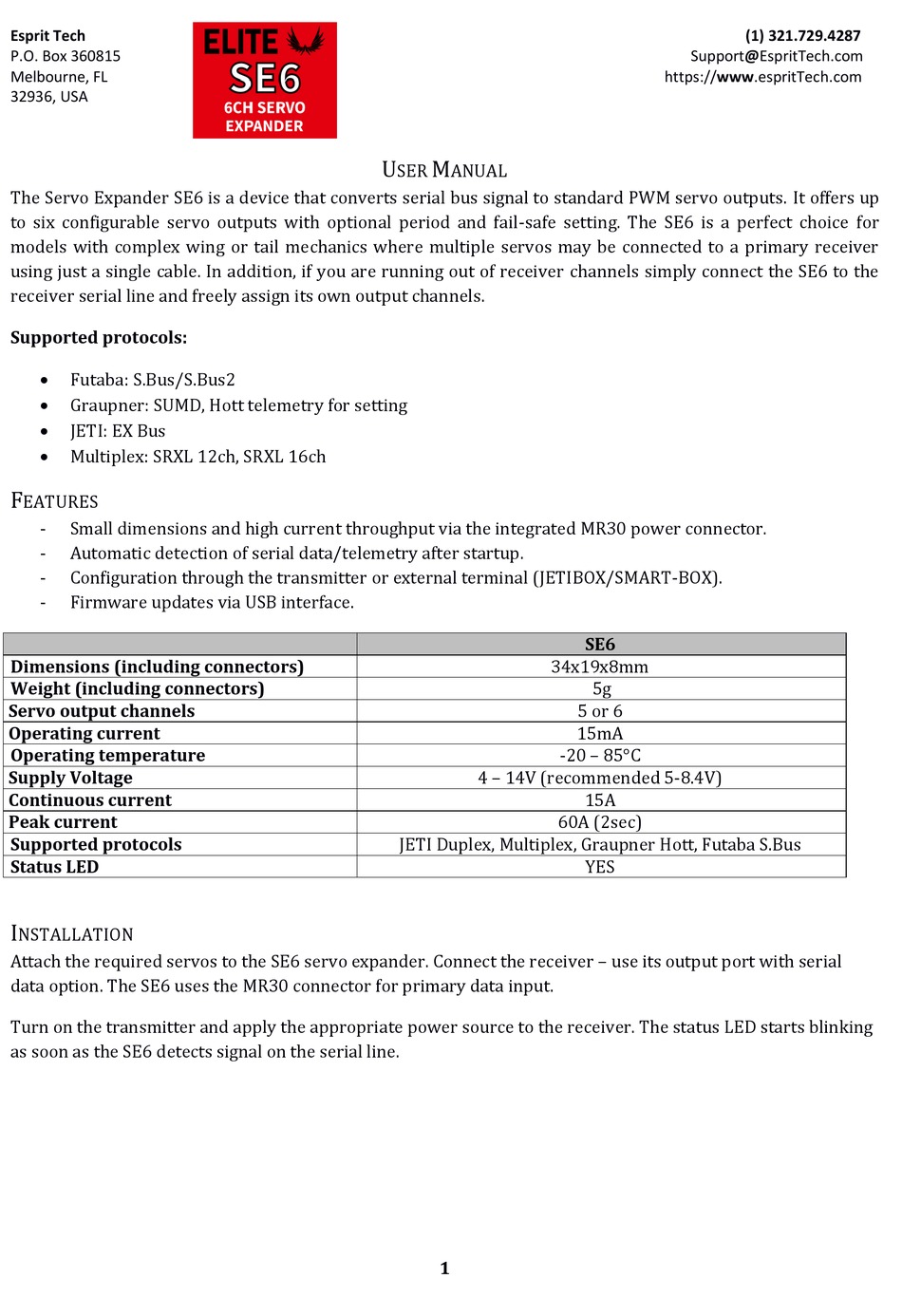

Esprit Tech SE6 User Manual

Esprit Tech
P.O. Box 360815
Melbourne, FL
32936, USA
The Servo Expander SE6 is a device that converts serial bus signal to standard PWM servo outputs. It offers up
to six configurable servo outputs with optional period and fail-safe setting. The SE6 is a perfect choice for
models with complex wing or tail mechanics where multiple servos may be connected to a primary receiver
using just a single cable. In addition, if you are running out of receiver channels simply connect the SE6 to the
receiver serial line and freely assign its own output channels.
Supported protocols:

Futaba: S.Bus/S.Bus2

Graupner: SUMD, Hott telemetry for setting

JETI: EX Bus

Multiplex: SRXL 12ch, SRXL 16ch
F
EATURES
- Small dimensions and high current throughput via the integrated MR30 power connector.
- Automatic detection of serial data/telemetry after startup.
- Configuration through the transmitter or external terminal (JETIBOX/SMART-BOX).
- Firmware Updates via USB interface.
Dimensions (including connectors)
Weight (including connectors)
Servo output channels
Operating current
Operating temperature
Supply Voltage
Continuous current
Peak current
Supported protocols
Status LED
I
NSTALLATION
Attach the required servos to the SE6 servo expander. Connect the receiver – use its output port with serial
data option. The SE6 uses the MR30 connector for primary data input.
Turn on the transmitter and apply the appropriate power source to the receiver. The status LED starts blinking
as soon as the SE6 detects signal on the serial line.
U M
SER ANUAL
4 – 14V (recommended 5-8.4V)
JETI Duplex, Multiplex, Graupner Hott, Futaba S.Bus
1
Support@EspritTech.com
https://www.espritTech.com
SE6
34x19x8mm
5g
5 or 6
15mA
-20 – 85°C
15A
60A (2sec)
YES
(1) 321.729.4287
