HEB lighting RT2 Manual

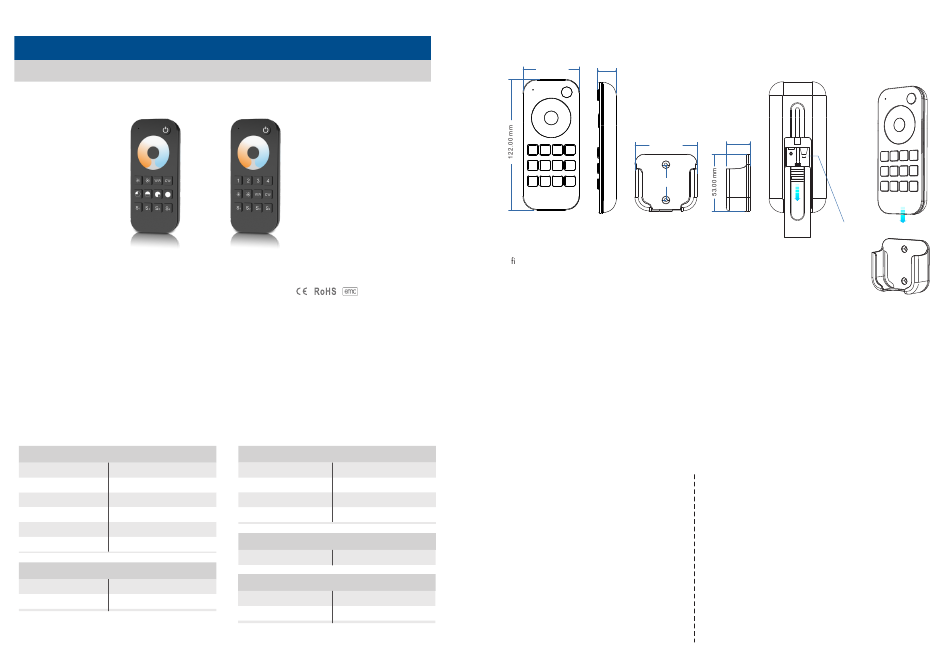

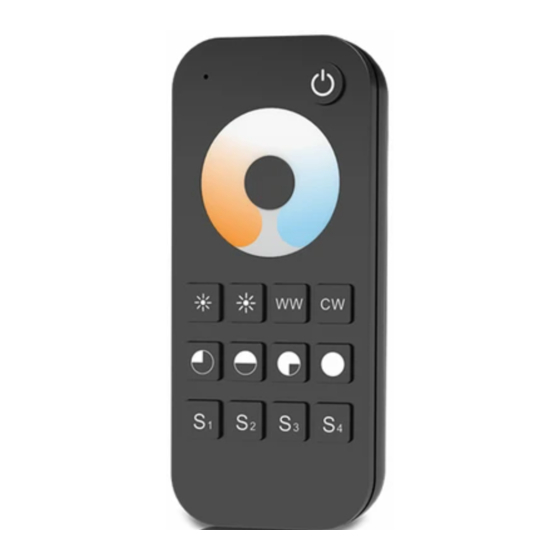

Touch Wheel RF Remote Controller
Model No.: RT2/RT7
1 and 4 zone CCT/Touch color wheel/Wireless remote 30m distance/AAAx2 battery
RT2
1 Zone CCT
Features
● Apply to dual color(warm white + cool white) LED controller.
● Ultra sensitive color adjustment touch wheel.
● Each remote can match one or more receiver.
● AAAx2 b atter y powered.
● Operate with LED indicator light.
Technical Parameters
Input and Output
Output signal RF 2.4GHz
( )
Working voltage 3VDC AAAx2
( )
Working current ＜5mA
Standby current ＜10μA
Standby time 1 year
Remote distance 30m(Barrier-free space)
Environment
Operation temperature Ta: -30 O C ~ +55 O C
IP rating
IP20
User Manual Ver 1.0.6
RT7
4 Zone CCT
LVD RED
Safety and EMC
EMC standard (EMC) EN301 489,EN 62479
Safety standard(LVD)
EN60950
Radio Equipment(RED)
EN300 328
CE,EMC,LVD,RED
Certification
Warranty
5 years
Warranty
Weight
0 . 04 8 k g
Net weight
Gross weight 0 . 088k g
Mechanical Structures and Installations
17.50 mm
53.00 mm
58.00 mm
33.00 mm
To x the remote, two options are offered for selection:
Option 1: fix the remote' back holder on the wall with two screws.
Option 2: adhere the remote' back holder to the wall with paster.
Operation
● When turn on light, the indicator display blue. when turn off light, the indicator display red.
● When touch the color wheel , the indicator will display the same color.
● When press or touch operation is invalid (If the light is off), the indicator display red.
● To extend battery life , no touch or press key operation after a few seconds ,
the touch wheel will enter sleep state, you need press any key to make touch wheel quit sleep state.
Match Remote Control (two match ways)
End user can choose the suitable match/delete ways. Two options are offered for selection:
Use the controller's Match key
Match:
Short press match key, immediately press on/off
key (single zone remote) or zone key (multiple zone
remote) of the remote.
The LED indicator fast flash a few times
means match is successful.
Delete:
Press and hold match key for 5s to delete all match,
The LED indicator fast flash a few times
means all matched remotes were deleted.
RT2,RT7 Touch Wheel RF Remote Controller
22.00 mm
3VDC(AAAx2) Battery
Back holder
Use Power Restart
Match:
Switch off the power, then switch on power again,
immediately short press on/off key (single zone remote)
or zone key (multiple zone remote) 3 times on the remote.
The light blinks 3 times means match is successful.
Delete:
.
Switch off the power, then switch on power again,
immediately short press on/off key (single zone remote)
or zone key (multiple zone remote) 5 times on the remote.
The light blinks 5 times means all matched remotes were
deleted.
