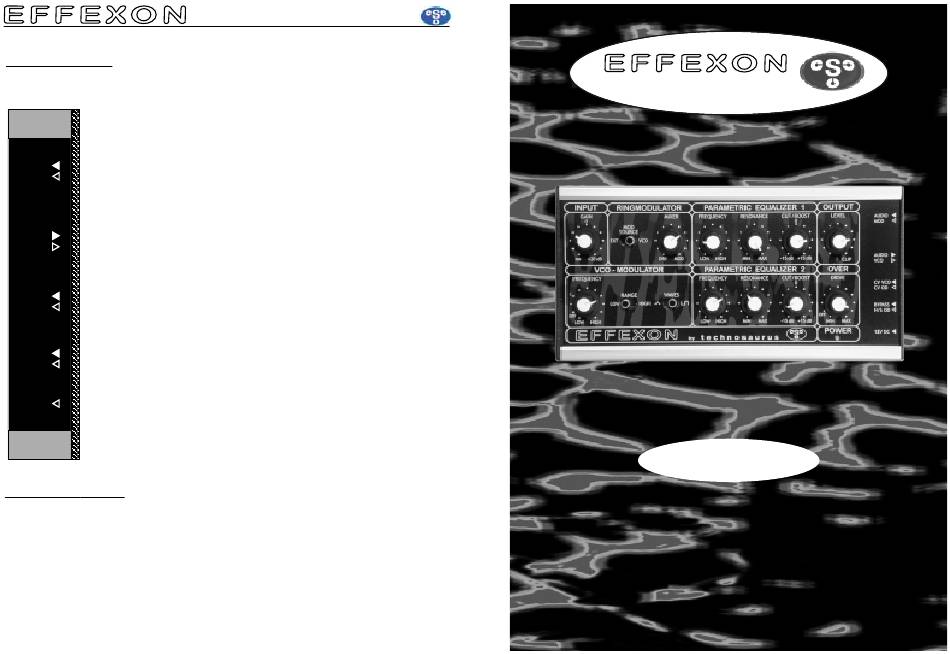

TECHNOSAURUS EFFEXON Owner's Manual

CONNECTIONS

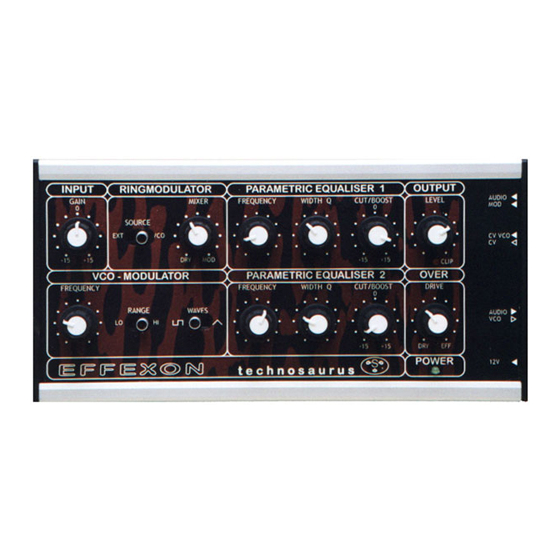

All connectors are placed on the right side panel of the unit.
AUDIO / MOD 1/4" (6.3mm) jack stereo input
AUDIO
• AUDIO input (TIP) to connect the sound source to be processed
MOD
• MOD input (RING) to connect an external modulation source for the Ringmodulator
AUDIO / VCO 1/4" (6.3mm) jack stereo output
AUDIO • AUDIO output (TIP) of the processed signal
VCO
• VCO output (RING) to use as sound source for ex. together with the MICROCON
CV VCO / CV OD 1/8" (3.5mm) mini-jack stereo input
CV VCO
• CV VCO input (TIP) to control the internal VCO with a Control Voltage (CV)
CV OD
• CV OD input (RING) to control the amount of overdrive with a Control Voltage (CV)
BYPASS / H/S OD 1/8" (3.5mm) mini-jack stereo input
BYPASS
• BYPASS input (TIP) to switch the overdrive section on and off
H/S OD
• H/S OD input (RING) to switch the overdrive from hard to soft
12V DC standardized 2.1mm plug, center pin = positive
12V DC
This is the power plug to connect an external power supply.
The power supply should have the following specifications:
- Output voltage: +12 volts to +15 volts DC
- Output current: at least 100mA
SPECIFICATIONS
AUDIO OUTPUT max. 5.5V
PP
VCO OUTPUT Square : 2V
CV VCO INPUT 0... +5V
CV OD INPUT 0... +5V
All descriptions of the product may be subject to change without notice
© 2001 by t t e e c c h h n n o o s s a a u u r r u u s s
b b y y t t e e c c h h n n o o s s a a u u r r u u s s
undistorted POWER +12V to +15V DC
SUPPLY
PP
POWER approx. 55mA @ 12V
CONSUMPTION
Dimensions 206 x 103 x 53mm
Weight 500g
Switzerland
L L L L C C
•
b b y y t t e e c c h h n n o o s s a a u u r r u u s s
Analog M M ulti-Effect P P rocessor
S w i s s q q u a l i t y
OWNERS MANUAL
Produced and developed by t t e e c c h h n n o o s s a a u u r r u u s s L L L L C C • Switzerland
CH-3400 Burgdorf • Phone +41(0)34 424 0112 • Fax +41(0)34 424 0111
info@technosaurus.ch • www.technosaurus.ch
