Summary of Contents for Power Science eArche

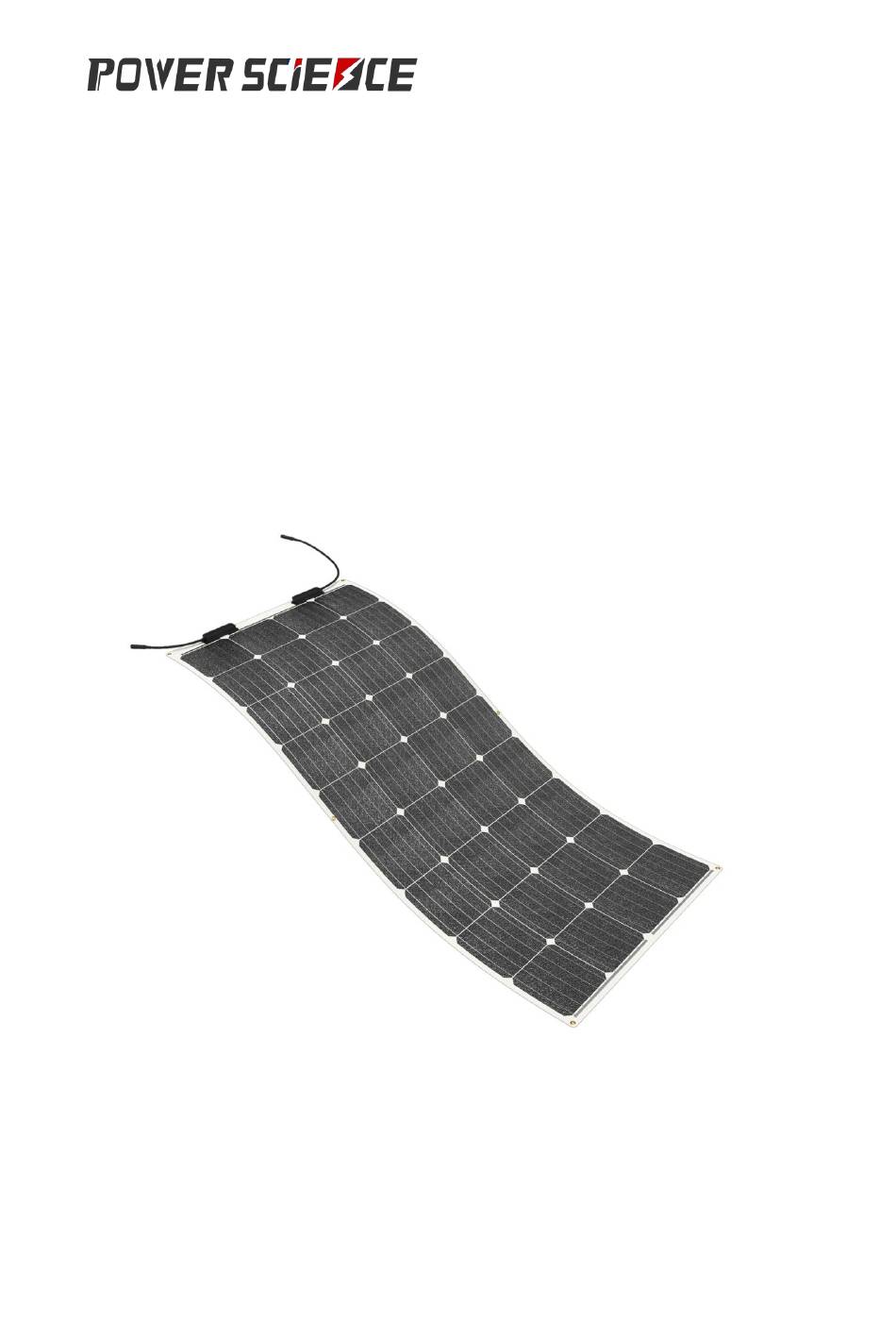

- Page 1 SMF-175/100M ‘eArche’ Flexible Solar Panel User Manual PowerPlus Australia Group Pty Ltd.
-
Page 2: Safety Precautions
SMF-175/100M FLEXIBLE SOLAR PANEL Safety Precautions Please read the Safety Precautions before installing or using the SMF-175M products. Be sure to observe all precautions without fail. Failure to observe these instructions properly may result in personal damage, or personal injury which depending on the circumstances may be serious and cause loss of life. - Page 3 SMF-175/100M FLEXIBLE SOLAR PANEL WARNINGS 1. Giving sufficient light, solar panels always generate energy even they are connect. 2. Do not short the terminals or wirings. It can result in personal injury and fire. 3. Do not scratch or damage the surface of the panels 4.
- Page 4 Deployment: Ultra-light weight, flexibility and customizable size make eArche the best choice to change the way how solar is deployed in the market and bring added value to special applications. Durability: eArche panels are certified to withstand maximum test load...
- Page 5 SMF-175/100M FLEXIBLE SOLAR PANEL For SMF-175M: Positive Negative Silicon Cells L Shape Bus Label terminal terminal For SMF-100M:...
-
Page 6: Installation
SMF-175/100M FLEXIBLE SOLAR PANEL 3. Installation For individual use of one panel: For parallel installation:... -
Page 7: Specification
SMF-175/100M FLEXIBLE SOLAR PANEL For series installation: 4. Specification Model SMF-175M SMF-100M Maximum Power (W) Maximum Power Voltage (V) 19.5 19.0 Maximum Power Current (A) 8.98 5.27 Open-Circuit Voltage (V) 23.9 23.5 Short Circuit Current (A) 9.50 5.67 Module Efficiency (%) 17.3 15.0 Operating Temperature... - Page 8 SMF-175/100M FLEXIBLE SOLAR PANEL 11. Warranty PowerPlus provide 2-year warranty for this product from the date purchased. PowerPlus Australia Group Pty Ltd. will take full responsibility to the product. Please be care that if the product is damaged because of improper installation, immersion, foreign matter invasion or any malfunction caused by users, PowerPlus Australia Group Pty Ltd.
- Page 9 SMF-175/100M FLEXIBLE SOLAR PANEL Power Science Technology Co., Ltd. Headquarter Australia Branch Add: The 2nd Floor, Building 1, Add: 5/17-25 Kinder St, Hengchangrong Baoan, Campbellfield, VIC 3061 Shenzhen P.R. China 518108 Tel: +61 455 966 883 Tel: +86 755 8652 9986 Email: au@powerscience.net...
