Unicontrol (Viriato) 04/2019
P
Please consider the environment before printing this document.
Ara-Unicontrol
User manual for devices
Ara-Unicontrol.
Content
Pag. 3
Pag. 4-5
Pag. 6-7
Pag. 8-16 Menu 1. Options and user settings.
Pag. 17-18
Menu 2. Functions of the displayed data.
Pag. 19-21 Incident messages.
Pag. 22
.
LCD.
Quick guide for start-up.
Air / water models.
Wifi.

Advertisement

loading
Need help?

Need help?

Do you have a question about the UNICONTROL and is the answer not in the manual?

Questions and answers

Summary of Contents for Ara-Unicontrol UNICONTROL

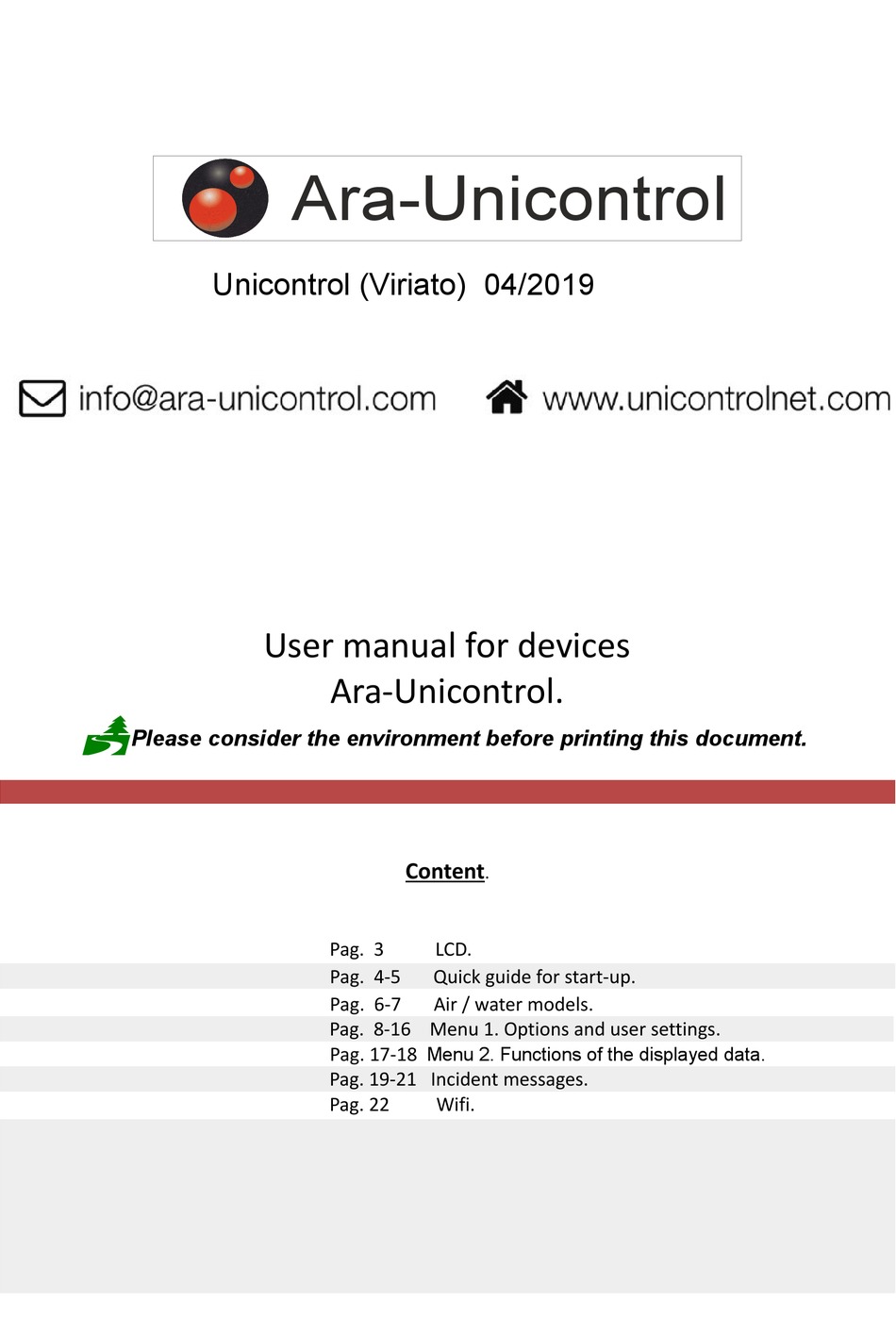

  • Page 1 Ara-Unicontrol Unicontrol (Viriato) 04/2019 User manual for devices Ara-Unicontrol. Please consider the environment before printing this document. Content Pag. 3 LCD. Pag. 4-5 Quick guide for start-up. Pag. 6-7 Air / water models. Pag. 8-16 Menu 1. Options and user settings.
  • Page 2 CPU UNICONTROL. The Unicontrol device is a device designed to manage pellet stoves and boilers. Display LCD Módulo WIFI...
  • Page 3: Infrared Receiver

    7-LED DIODE indicates signal reception, coming from the remote control. 9-FLAT TAPE CONNECTOR . Connect the keyboard with the UNICONTROL unit, using flat cable 10-USB CONNECTOR. Connect the keyboard with the UNICONTROL unit, using a USB cable LIGHTING THE KEYBOARD (ACTIVATE / DEACTIVATE): The keyboard models Uni_Teclado_11 and later versions have a function, which allows us to deactivate the backlight of the keyboard when it is not necessary.
  • Page 4 Start-up of the stove. Connect the network cable to the socket on the back of the stove. Then, the following graphic sequences (numbered to the left of the text) will be displayed on the control panel screen. 1 - Software version and serial number. 2 -Selected stove model.
  • Page 5 9 - Checking the air level in depression. In this 10 -It will charge fuel for a short period of time, to case, it must be equal to or greater than the value facilitate a faster ignition. on the right: .53mB. 11 -Ignition timer (minutes).
  • Page 6 Models for the production of hot air We went on to detail all the chrono-temperature symbols, before making programming in menu 1. Enable the chrono. It will turn on and off, according to the settings made in the menus 1- 2 and 1-3. Enables the room temperature probe.
  • Page 7 Models for the production of hot water We went on to detail all the chrono-temperature symbols, before making programming in menu 1. Enables the chrono. It will turn on and off, according to the settings made in the menus 1- 2 and 1-3. Enables the room temperature probe.
  • Page 8 MENU 1 Options and user settings. Menu 1 contains all the options that allow the stove to be programmed, according to the user's needs or adjustments required by the installation. The most important adjustment is found in section 1-6a. By varying this parameter we can obtain the most suitable combustion for our stove.
  • Page 9 28 -We enter the programming of the system clock. 29 - we select the time 30 - Selected time we do not modify it and we pass to 31 - We modify the minutes by increasing them minutes. up to 15 and we pass with the menu key to the next sequence.
  • Page 10 40 -We left the week on. 41 - We select weekly shutdown program. 42 -Shutdown program These values will be repeated 43 - No We modify the time and select the minutes. every day of the week. We select time 44 - We modify the minutes.
  • Page 11 54 - We select the program of shutdown Monday. 55 - Shutdown program These values will be repeated every Monday. The scripts indicate that there is no programming. We select time 56 - Using a decrement button 57 - We select the minutes. we enable the time to modify it.
  • Page 12 66 - We select time. This will allow us to program on 67 - We enable time. and off that will be done automatically. 68 - We confirm habilitation. 69 - We left chrono. 70 - We select thermostat. This will allow us to keep 71 - We enable thermostat.
  • Page 13 80 - We select fuel level. 81 - We increase the fuel level. 82 - We confirm the fuel level. 83 - We left fuel level programming. 84 -We select the combustion air programming. 85 - Read the attached note that you will find at the end of the menu 1 will facilitate the steps for obtaining an optimal result.
  • Page 14 92 -.We confirm the level of the convector. 93 - We leave the air adjustment of the convector. Decreasing the value of the convector will increase The adjusted value is automatically provided the air temperature. in the other levels. 95 - We enter programming various uses. 94 -We select several uses programming.
  • Page 15 106 - We enter into stand-by programming. limits the 107 - We select temperature. maximum temperature of the air / water exchanger. 108 -We increase temperature. 109 - If this temperature is equalized or exceeded, the stove will turn off again when the temperature is lower than the programmed value.
  • Page 16 120 - Holding the Menu key for more than 5 seconds 121 -The schedules of calendars 1 and 2, as well as will recover the source data. the hours of operation and lit, will be maintained. In case there is no graphic representation on the display, we can perform the data recovery, following the instructions below Disconnect the stove.
  • Page 17 MENU 2 functions of the displayed data. To visualize the different screens we will only use the increase and decrease keys except for the sections 2- 10 and 2-11. 123 -Upper line: pulse time on.Turn time of the 122 - We enter menu 2. endless motor (seconds).
  • Page 18 160 characters included in 5 screens. We press menu. 138 - Press the increment key to advance to the next 139 - We left SMS UNICONTROL. screens. 140 - Press the increment key to advance to the next 141 - Hardware model.
  • Page 19 We can exit the waiting state by pressing the increment key until the current temperature is exceeded, But remember that the ambient / boiler temperature that we had initially, will be altered by increasing the working point of the same. Incident messages.
  • Page 20 149 - Heat exchanger probe incorrectly connected or 150 - Thermocouple probe gas outlet badly faulty. connected or faulty. Consult with the technical service. Consult with the technical service. 151 -Outdoor temperature probe badly connected or 152 - Check the following points: faulty.
  • Page 21 158 - Check the following points: 157 - Check the following points: • exchanger and dirty smoke passes. that the hopper has fuel. • malfunction in convector, it could be dirty. If the fuel is pellets, make sure they are not •...
  • Page 22 WIFI If you have wifi connection, you can access the control of the stove through our web address: www.unicontrolnet.com, acquiring the Uniwifi_19 device. For more information register on our website, and in the tab: " Download of documents “, select the document: 1_Manual_wifi_19. The following images show some of the options that can be accessed through the web, with the stove connected.
