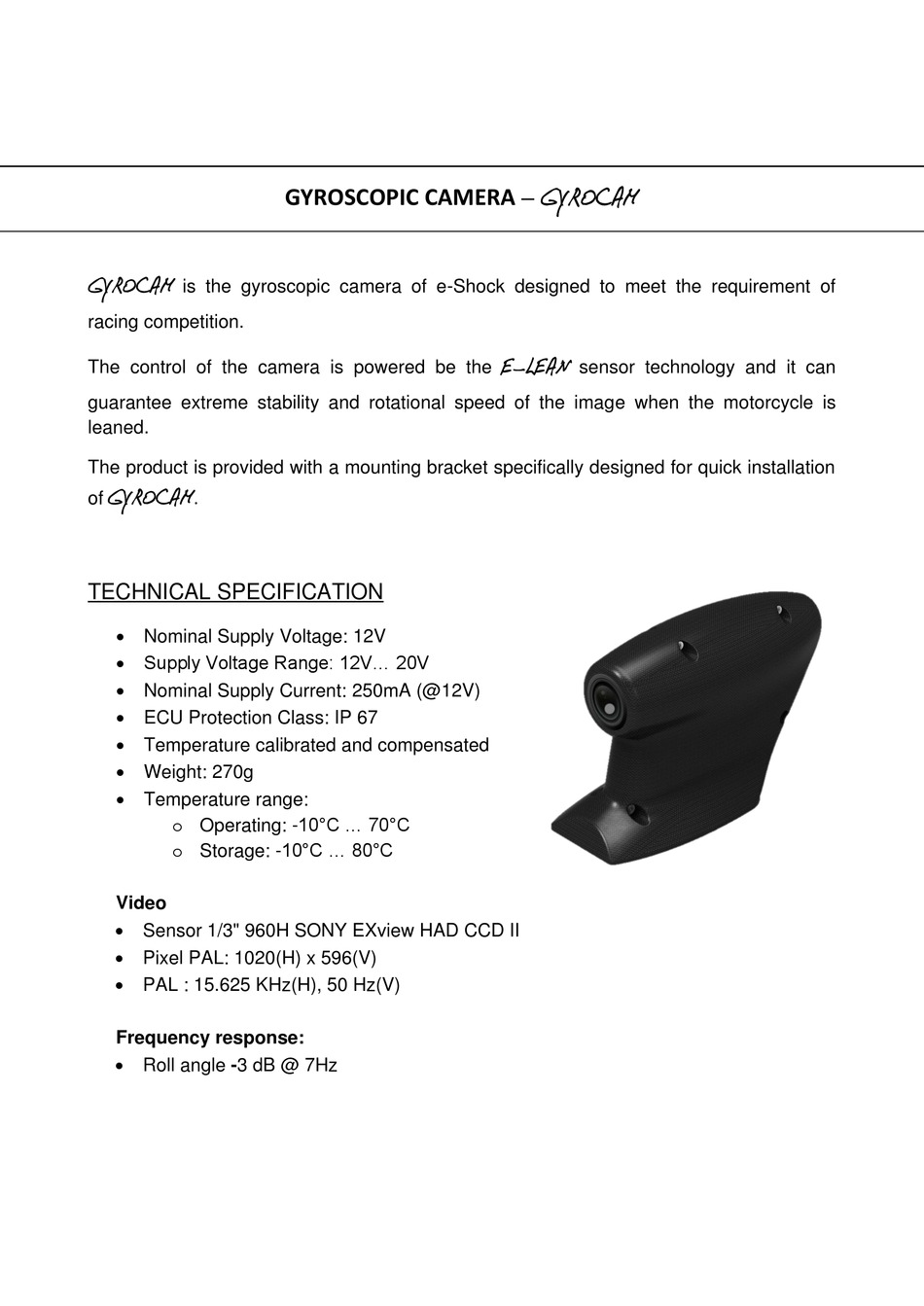

GYROCAM
is the gyroscopic camera of e-Shock designed to meet the requirement of
racing competition.
The control of the camera is powered be the
guarantee extreme stability and rotational speed of the image when the motorcycle is
leaned.
The product is provided with a mounting bracket specifically designed for quick installation
GYROCAM
of
.
TECHNICAL SPECIFICATION
Nominal Supply Voltage: 12V
Supply Voltage Range: 12V... 20V
Nominal Supply Current: 250mA (@12V)
ECU Protection Class: IP 67
Temperature calibrated and compensated
Weight: 270g
Temperature range:
o Operating: -10°C ... 70°C
o Storage: -10°C ... 80°C
Video
Sensor 1/3" 960H SONY EXview HAD CCD II
Pixel PAL: 1020(H) x 596(V)
PAL : 15.625 KHz(H), 50 Hz(V)
Frequency response:
Roll angle -3 dB @ 7Hz
GYROSCOPIC CAMERA – GYROCAM
E-LEAN
sensor technology and it can
Advertisement
Summary of Contents for e-Shock GYROCAH
- Page 1 GYROSCOPIC CAMERA – GYROCAM GYROCAM is the gyroscopic camera of e-Shock designed to meet the requirement of racing competition. E-LEAN The control of the camera is powered be the sensor technology and it can guarantee extreme stability and rotational speed of the image when the motorcycle is leaned.
- Page 2 DIMENSIONS H=96 mm L=55.8 mm d=90 mm...
-
Page 3: Mounting Instructions
MOUNTING INSTRUCTIONS BUTTON To place the cam on the motorcycle: 1. Place the mounting bracket on the vehicle and attach it with rivets, screws (thanks to the holes) or velcro 2. Once the mounting bracket has been positioned, place the motorcycle on the stands to guarantee that it is not leaned GYROCAM 3. - Page 4 CAN Data transfer – Available on request: Baudrate: 1 MBaud Identifier length: 11 bit OUTPUT CAN Mailbox ID: (for details contact info@e-shock.it o ID 41Fh: Roll Angle o ID 2F0h: Accelerations o ID 2F0h and ID 2F4h: Angular rates ...
- Page 5 Byte 6 Fault FLAG Bit7 NOTE: if Fault FLAG is equal to 1, then some problems may be occurred in the measured signals and the estimated angles are posed equal to 0° Byte 7 Temperature Bit15 ID 2F0h - Bit Layout and signal description: Byte 0 Bit7 AX15...
- Page 6 The specifications on this document are subject to change at E-Shock decision. For info and sale contact: E-Shock assumes no responsibility for any claims or damages arising out of the use info@e-shock.it of this document, or from the use of modules based on this document, including but not limited to claims or damages based on infringement of patents, copyrights or other intellectual property rights.
- Page 7 The specifications on this document are subject to change at E-Shock decision. For info and sale contact: E-Shock assumes no responsibility for any claims or damages arising out of the use info@e-shock.it of this document, or from the use of modules based on this document, including but not limited to claims or damages based on infringement of patents, copyrights or other intellectual property rights.
- Page 8 The specifications on this document are subject to change at E-Shock decision. For info and sale contact: E-Shock assumes no responsibility for any claims or damages arising out of the use info@e-shock.it of this document, or from the use of modules based on this document, including but not limited to claims or damages based on infringement of patents, copyrights or other intellectual property rights.
- Page 9 The specifications on this document are subject to change at E-Shock decision. For info and sale contact: E-Shock assumes no responsibility for any claims or damages arising out of the use info@e-shock.it of this document, or from the use of modules based on this document, including but not limited to claims or damages based on infringement of patents, copyrights or other intellectual property rights.
