RcJoyCon CarPC JoyCon Exr Manual

Hide thumbs

Advertisement

Table of Contents

RcJoyCon.com
1. Feature of CarPC JoyCon Exr
Hardware feature
- Converts resistive and digital steering wheel remote controls into USB HID keyboard
and HID remote controller
- Resistance range adjustable
- Works same as standard USB HID keyboard and HID remote controller by hardware
- 24V tolerant 4 channel resistive(voltage) input
- Supports 28 physical buttons, 52 programmable logical buttons
- Long and Short button for one physical button, up to 5 simultaneous key strokes by one button.
- 2 programmable LED port
- Remote wake-up(resume PC from sleep with steering wheel remote controls)
- Channel Master/Slave selectable
- Temperature range : -40 ~ +85°C
JoyCon Explorer feature(for Windows PC)
- Preset switching by buttons.
- Application Launcher(application launches and pops up with preset switching).
- Voice and OSD by button and preset switching.
- User definable button voice and OSD.
- Rearview by reversing light
- Online firmware update.
- No external power or driver installation needs.
- Available OS : Windows 8, Windows 7, Vista, XP , 2003
JoyCon Explorer supports Windows XP and the later version.
JoyCon Explorer does not support Linux, Mac. But CarPC JoyCon Exr works on Linux and Mac after it
is configured at Windows.
JoyCon Explorer does not support Android devices. But CarPC JoyCon Exr works on Android devices
(from Android version 3.1) after it is configured at Windows.

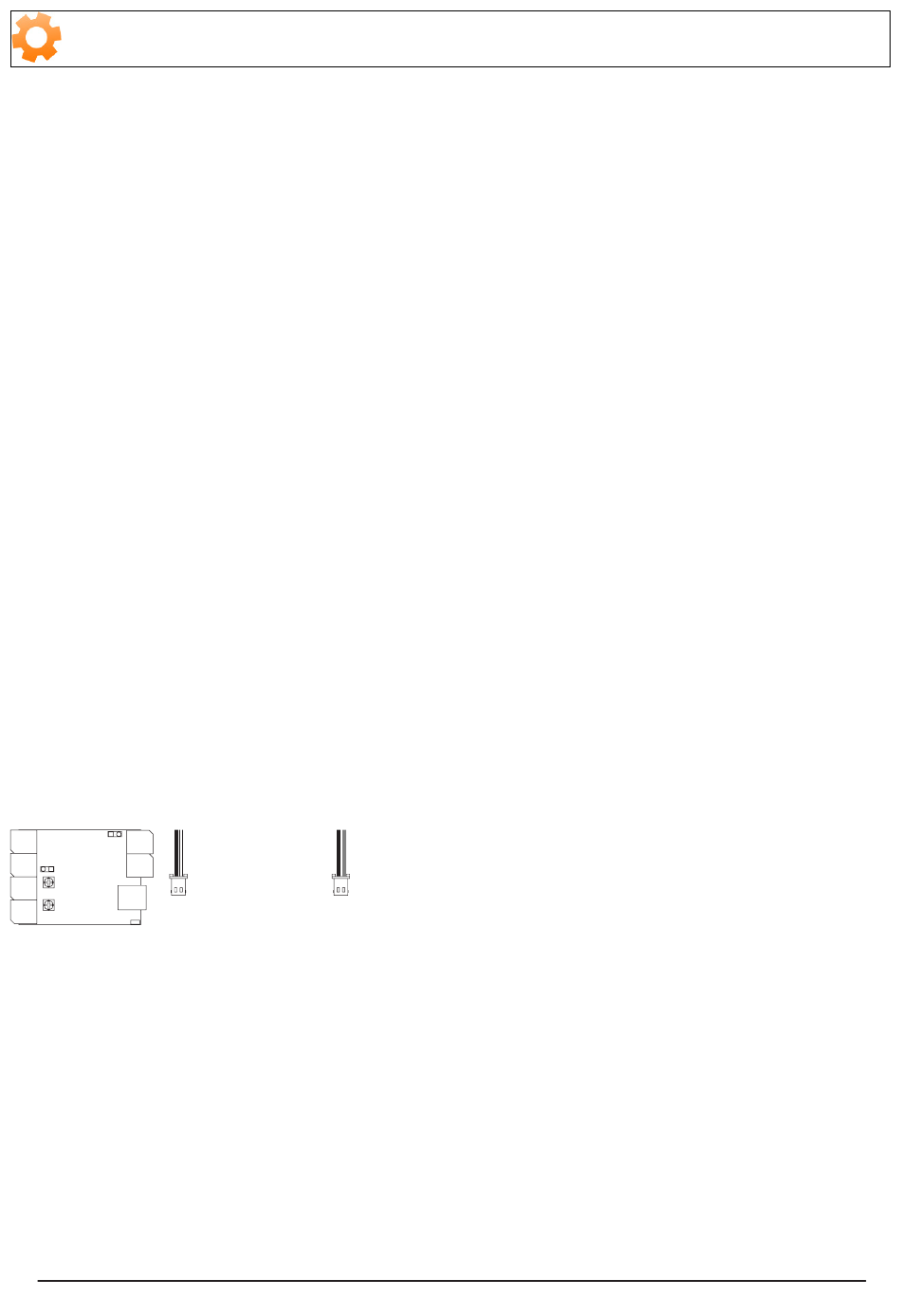

2. Contents
JoyCon Exr
CarPC JoyCon Exr
CarPC JoyCon Exr Manual
JoyCon Exr - Steering wheel controls USB interface
Input Cable x4
LED Cable x2
Heat shrinkable tube x2
Short Manual
(USB A-mini B 5P cable and JoyCon Explorer
CD is optional. You can download JoyCon
Explorer at www.rcjoycon.com)
RcJoyCon.Com
OCT. 23th. 2016
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CarPC JoyCon Exr and is the answer not in the manual?

Questions and answers

Summary of Contents for RcJoyCon CarPC JoyCon Exr

  • Page 1 - Available OS : Windows 8, Windows 7, Vista, XP , 2003 JoyCon Explorer supports Windows XP and the later version. JoyCon Explorer does not support Linux, Mac. But CarPC JoyCon Exr works on Linux and Mac after it is configured at Windows.

  • Page 2: Board Layout

    External LED port, 5V Black 1. GND : Ground JoyCon Exr Gray 2. LED2 Onboard LED Adjustment B Adjustment A Tunes the resistance range Tunes the resistance range of input channel B of input channel A CarPC JoyCon Exr RcJoyCon.Com...

  • Page 3: Operational Test

    4. Wiring Connect CarPC JoyCon Exr’s input channel(CH A, CH B, CH C, CH D)wire to the remote control’s resistive signal wire. Data GND(Black) CarPC JoyCon Exr Remote Controls Warning!! Do not connect signal and GND wire reversely. If the buttons in JoyCon Explorer are too close each other, tune the Adjustment A/B.

  • Page 4: Basic Setting

    If the button bars are too close each other, tune the Adjustment A/B on the Board. (Resistor range and position of the buttons are stored in the onboard memory of CarPC JoyCon Exr.) Button bar turns to green when the controller button is pressed.
  • Page 5 The function and configuration can be saved as a preset file(.prs) by clicking save button and re- stored by double-click or drag-drop a preset file(.prs). (Resistor range and position of the buttons are stored in the onboard memory of CarPC JoyCon Exr.) Save As...
  • Page 6 Extended Button Setting 1. Short Button and Long Button CarPC JoyCon Exr supports two separated functions for one steering wheel remote control button. The two functions are Short Button and Long Button. Short Button is generated when the remote control button is released before Critical Time.
  • Page 7 4. Programmable LED control CarPC JoyCon Exr can control one onboard LED and two external LEDs. If you want to control LED with a preset, check Control. If Control is not checked, this preset doesn’t control LED and LED keeps previous configuration.
  • Page 8 Preset Switching Preset can be downloaded to CarPC JoyCon Exr by Preset Button automatically, it is useful when you need to change steering wheel remote control’s configuration while driving. 1. Preset List Drag Drop preset files on the list of Preset tab. Preset is switched with the sequence of this list.
  • Page 9 Preset Button in the preset list. The application which is associated with the preset is closed by Close Button in the Preset List. Configure the Preset Button of every preset file in the preset list in the same way(S-Hold Time, L-Hold Time and Critical Time). CarPC JoyCon Exr RcJoyCon.Com...

  • Page 10: Application Launcher

    “Run Preset” means to launch or pop up the application by preset switching(or open- ing). Check Open this Preset when Starting and drag-drop a preset on the edit box, to open the preset when JoyCon Explorer starts. The latest manual is at http://www.rcjoycon.com/mn/cpjexr CarPC JoyCon Exr RcJoyCon.Com...
