RENNFIX E-SCOOTER 1
ORIGINAL BETRIEBS-
ANLEITUNG
OPERATING INSTRUCTIONS
INSTRUCTIONS
DE SERVICE
INSTRUCTIES

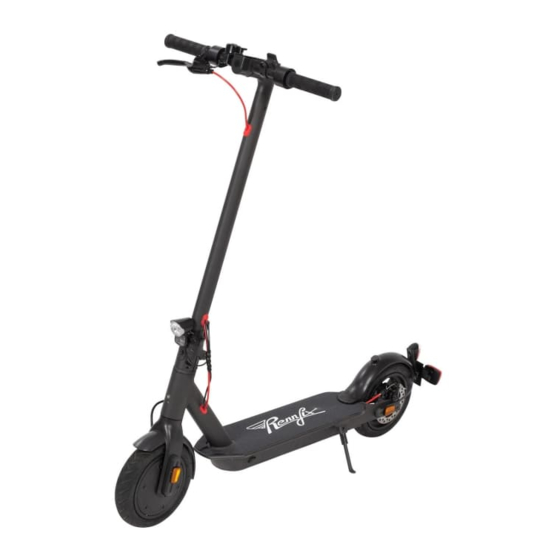

RENNFIX E-SCOOTER 1
Order no. 10015300
ISTRUZIONI PER IL
FUNZIONAMENTO
INSTRUCCIONES DE SERVICIO
ИНСТРУКЦИЯ ПО
ЭКСПЛУАТАЦИИ
INSTRUKCJA OBSŁUGI

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rennfix E-Scooter 1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for HFM Rennfix E-Scooter 1

  • Page 1 RENNFIX E-SCOOTER 1 RENNFIX E-SCOOTER 1 Order no. 10015300 ORIGINAL BETRIEBS- ISTRUZIONI PER IL ANLEITUNG FUNZIONAMENTO OPERATING INSTRUCTIONS INSTRUCCIONES DE SERVICIO INSTRUCTIONS ИНСТРУКЦИЯ ПО DE SERVICE ЭКСПЛУАТАЦИИ INSTRUCTIES INSTRUKCJA OBSŁUGI...
  • Page 3: Table Of Contents

    Translation of original operating instructions Contents | What's included | General information | Reading and keeping these instructions | Explanation of symbols | Safety | Intended use 3.1.1 | Information for parents and legal guardians: 3.1.2 | Legal requirements | Foreseeable misuse | Safety instructions | Preparation/assembly | Using your electric scooter for the first time...
  • Page 4: What's Included

    RENNFIX E-SCOOTER 1 What's included 2.2. Order no. 10015300 2.2.1.1.: 402 2.2.4.: 825 2.2.1.: 1070 Name SCOOTER_2_2 Date 26-01-20 Licence plate holder Bell Frame Folding mechanism Front wheel with motor Footboard with with quick release and electronic brake battery compartment...
  • Page 5: Explanation Of Symbols

    adhere to these Instructions for Use can lead to damage to the vehicle, compromised riding safety and accidents. The Instructions for Use are based on the standards and regulations applicable in the European Union and reflect current state-of-the-art technology. They contain information for assembly, components and care and maintenance only.
  • Page 6: Safety

    Safety | Intended use The Rennfix E-Scooter is an electrically propelled vehicle in accordance with eKFV (Small Electric Vehicle Ordinance in Germany), and is for private use only. The electric scooter is a means of transport for a single person on paved roads and footpaths. Luggage must be carried safely on the rider's person.
  • Page 7 • Before riding on public roads, you should acquaint yourself with the applicable national traffic regulations. • Keep both hands on the handlebar at all times when riding. • To change direction safely, pull over to the kerb and step onto the pavement with your electric scooter.
  • Page 8 • Do not use or charge the vehicle in an explosive atmosphere or in the vicinity of highly flammable liquids, gases or dust. • Never charge the battery any longer then necessary. • Avoid any strong impacts with the electric scooter in the vicinity of the battery. If the battery is deformed, the integrated safety mechanism may be damaged.
  • Page 9: Preparation/Assembly

    IMPORTANT! Risk of damage! • It is imperative that you ride your scooter with caution in order to avoid endangering/injuring/damaging yourself or third parties and objects. • Do not use the electric scooter in adverse weather conditions and only use it on surfaces that are as even, dry and clean as possible.
  • Page 10 To attach the reflector (7), first unfasten the two screws (8) of the licence plate holder. Then push the reflector mount (9) between the licence plate holder (10) and the base plate and align it so that the reflector is fastened with the screws of the licence plate holder. Name INSTRUCTION_01 Date...
  • Page 11: Using Your Electric Scooter For The First Time

    5 | Using your electric scooter for the first time 5.1 | Inspecting the electric scooter before first use • Is the steering column locked and secured? • Are the handlebar, controls and grips firmly tightened? • Are the cables on the steering column free of kinks and routed so that they are not put under any strain when you turn the steering to full lock? •...
  • Page 12: Before Riding Your Electric Scooter

    Open the dust cover on the charging port and insert the charger plug. Now connect the power plug to a suitable power outlet (220 - 240 V/AC 50/60 Hz). A red indicator light will light up on the charger. The electric scooter's battery is fully charged when the colour of the indicator light changes to green. Then disconnect the charger from the power supply and from the electric scooter, and close the charging port again.
  • Page 13: Setting Off

    | Setting off Put one foot (your standing leg) on the footboard and pull the rear brake lever (16). Press and hold the power button in the middle of the handlebar until the display lights up. The four LED indicator lights arranged in a semi-circle indicate the capacity of the battery (if all 4 lights are illuminated, the battery charge is between 75% and 100%).
  • Page 14: Unfolding Your Electric Scooter

    | Unfolding your electric scooter When you next want to use your electric scooter, lift the steering column into the upright position so that the two flanks of the hinge rest flat against each other, and press the quick release firmly upwards.
  • Page 15: Storage

    | Storage Store your electric scooter and the battery in a dry and well ventilated place at room temperature (18°C) and air humidity no higher than 80% (non-condensing). If the electric scooter and the battery are not used for longer than 3 months, it is advisable to store it with a charge of 40% – 70%. The battery will then age more slowly than with a 100% charge.
  • Page 16: Maintenance

    • Check cables and electrical connections (including in the battery compartment) for damage • Test the charger; check that charging works correctly • Check frame for damage (e.g. cracks, twisting) • Check covering on the footboard • Defective or missing parts must be replaced •...
  • Page 17: Tightening The Steering Column

    If you detect changes or damage to your electric scooter, it must be assessed by a specialist workshop, wherever possible, and any damage repaired. Do not ride your scooter until this has been done. 13 | Technical data Model designation: Rennfix E-Scooter 1 Weight: approx. 12.5 kg Frame: Aluminium Max.
  • Page 18: Warranty

    14 | Warranty 14.1 | General information on warranty cover The usual two-year warranty period applies for the electric scooter. The warranty period begins on the date of purchase as per the proof of purchase. The warranty does not cover normal wear and tear, wear to the tyres, brake pads, handlebar grips or the footboard, discolouration or fading of surfaces, improper use and damage caused by an accident, improper handling, acts of nature, manipulation or attempted repairs by unauthorised or unqualified persons, or technically modified...
  • Page 19: Frame

    17 | Exploded view 17.1 | Frame SCOOTER_FRAME 01  Frame  25  Screw, brake caliper  02  Cover, steering head, bottom  26  Controller  03  Cover, steering head, top  27  Battery  04  Screw, steering head cover  28  Charging port  05  Bearing, steering head  29 ...
  • Page 20: Front Wheel

    17.2 | Front wheel SCOOTER_FRONT_WHEEL 01  Axle, front  08  Cover, motor, right  02  Stator  09  Rim, front  03  Retaining ring  10  Bearing cup  04  Washer, bearing  11  Cover, motor, left  05  Ball bearing  12  Screw, motor cover  06  Washer, wheel nut  13 ...
  • Page 21: Handlebar

    17.3 | Handlebar SCOOTER_HANDLEBAR 01  Steering head  11  Screw, circuit board  02  Screw, steering head  12  Cover, large  03  Handlebar  13  Cover, small  04  Seal, steering head, top  14  Brake lever  05  Seal, steering head, bottom  15  Throttle lever  06  Steering head counterpiece ...
  • Page 22: Lower Steering Column And Fork

    17.4 | Lower steering column and fork SCOOTER_LOWER_FORK 01  Front fork  06  Axle cover, left  02  Fork cover  07  Axle cover, right  03  Mudguard (fender), front  08  Screw, axle cover  04  Washer  09  Reflector, left  05  Screw, mudguard  10  Reflector, right ...
  • Page 23: Upper Steering Column With Folding Mechanism

    17.5 | Upper steering column with folding mechanism SCOOTER_UPPER_FORK 01  Bottom mount  11  Counterpiece, lug  02  Screw, bottom mount  12  Bolt  03  Insert, lug  13  Screw, lug  04  Quick release  14  Steering column  05  Lug  15  Screw, handlebar  06  Nut, lug  16 ...
  • Page 24: Rear Wheel

    17.6 | Rear wheel SCOOTER_REAR_WHEEL SCOOTER_REAR_WHEEL 01  Axle, rear  07  Screw, brake disc  02  Wheel, rear  08  -  03  Washer  09  Tyre 8½ x 2 inches  04  Ball bearing  10  Washer  05  Retaining ring  11  Lock washer  06  Brake disc  12 ...
  • Page 25: Declaration Of Conformity

    Hanseatische Fahrzeug Manufaktur GmbH Pinnebergerstrasse 239-241 25488 Holm erklärt, daß dieses Produkt den folgenden EG-Richtlinien und Standards entspricht. Produktbezeichnung: Elektrokleinstfahrzeug E-Scooter Modell-/ Typbezeichnung: Rennfix E-Scooter 1 2006/42/EG (machinery directive – Maschinenrichtlinie) 2014/30/EG (EMC – Electromagnetic compatibility) 2011/65/EU (RoHS) Elektrokleinstfahrzeugverordnung vom 6.Juni 2019 Die alleinige Verantwortung für die Ausstellung dieser Konformitätserklärung trägt die Hanseatische...
  • Page 26: Service History Log

    19 | Service history log Service / km / date / stamp / signature of service centre Service after approx. 200 km Date Stamp/signature of service centre or 15 recharges Service after another Date Stamp/signature of service centre 5,000 km or one year Service after approx.
  • Page 27 Service after approx. 1000 km or Date Stamp/signature of service centre 75 charges Service after approx. 1200 km or Date Stamp/signature of service centre 90 charges Service after approx. 1400 km or Date Stamp/signature of service centre 105 charges...
  • Page 28 Exclusively from: Detlev Louis Motorrad-Vertriebsgesellschaft mbH Rungedamm 35 • 21035 Hamburg • Germany Tel.: 0049 (0)40 - 734 193 60 • www.louis.de • service@louis.de Detlev Louis AG • Oberfeld 15 • 6037 Root LU • Switzerland Tel.: 0041 (0)41 - 455 42 90 • service@louis-moto.ch ANL-10015300-01-2006...
