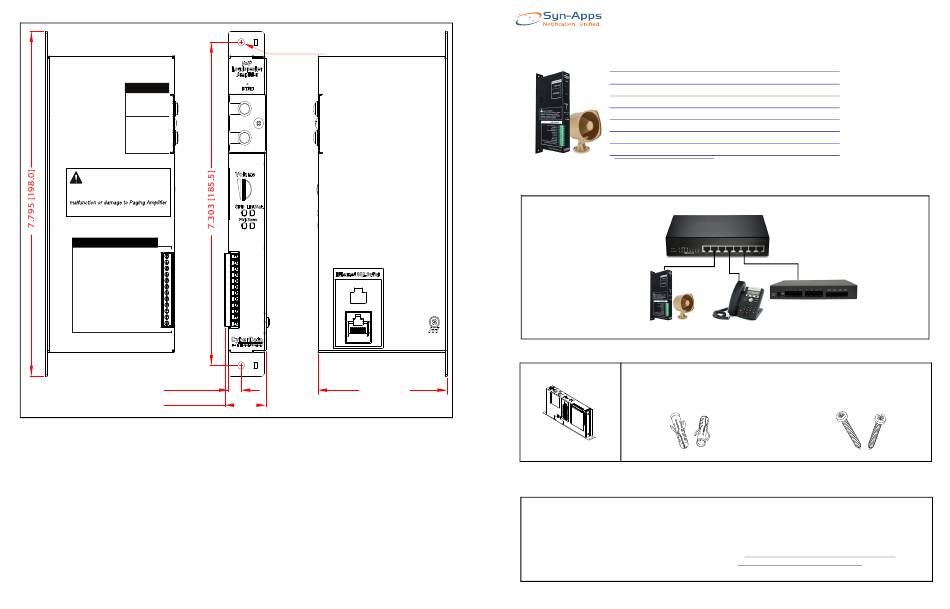

Syn-Apps 011411 Installation Quick Reference

Dimensions

CLASS II WIRING
3
MIC IN
2
1
5
4
STROBE
3
2
1

SAFETY WARNING!

Please read the owner's manual for proper
installation. Incorrect wiring can lead to
and/or other attached components.
CLASS II WIRING
Mono(+)/Left Spkr (+) - 12
Left Spkr (-) - 11
Right Spkr (+) - 10
Mono(-)/Right Spkr (-) - 9
Line-Out (+) - 8
Line-Out (-) - 7
Line-In (-) - 6
Line-In (+) - 5
Relay COM - 4
Relay NO/NC - 3
Door Sense/Button Common (GND) - 2
Door Sense/Button Contact (+) - 1
www.cyberdata.net
0.326 [8.3]
1.042 [26.5]
© 2016, Syn-Apps L.L.C. ALL RIGHTS RESERVED
ø0.172 [ø4.4]
(2 Places)
3.295 [83.7]
Dimensions are in Inches [Millimeter]
931312B Quick Reference
Installation Quick Reference

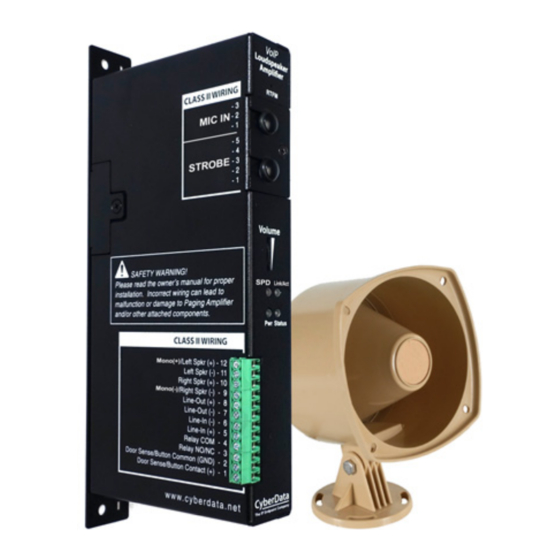

Syn-Apps-enabled Paging Amplifier
011411
Parameter
IP Addressing
a
IP Address
Web Access Username
Web Access Password
a
Subnet Mask
a
Default Gateway
a. Default if there is not a DHCP server present.

Typical System Installation

Compliant PoE Ethernet Switch
Syn-Apps enabled
Paging Amplifier

Parts

(1) Assembly (1) Screw Accessory Kit
(2) Plastic Ribbed Anchors
Contacting Syn-Apps
Corporate Headquarters
Syn-Apps LLC
2812 N Norwalk
Suite 112
Mesa, AZ 85215
Phone: 480-664-6071 / 866-664-6071
Fax: 480-659-8999 / 866-659-8999
Quick Reference
Factory Default Setting
DHCP
10.10.10.10
admin
admin
255.0.0.0
10.0.0.1
SA Announce Server
VoIP Phone
(2) #6x1.25" Pan Head
Phillips Sheet Metal Screw
Website: www.syn-apps.com
Sales: sales@syn-apps.net
Support: http://www.syn-apps.com/resources/support
Email: http://www.syn-apps.com/contact-us
931312B © 2016, Syn-Apps L.L.C. ALL RIGHTS RESERVED
