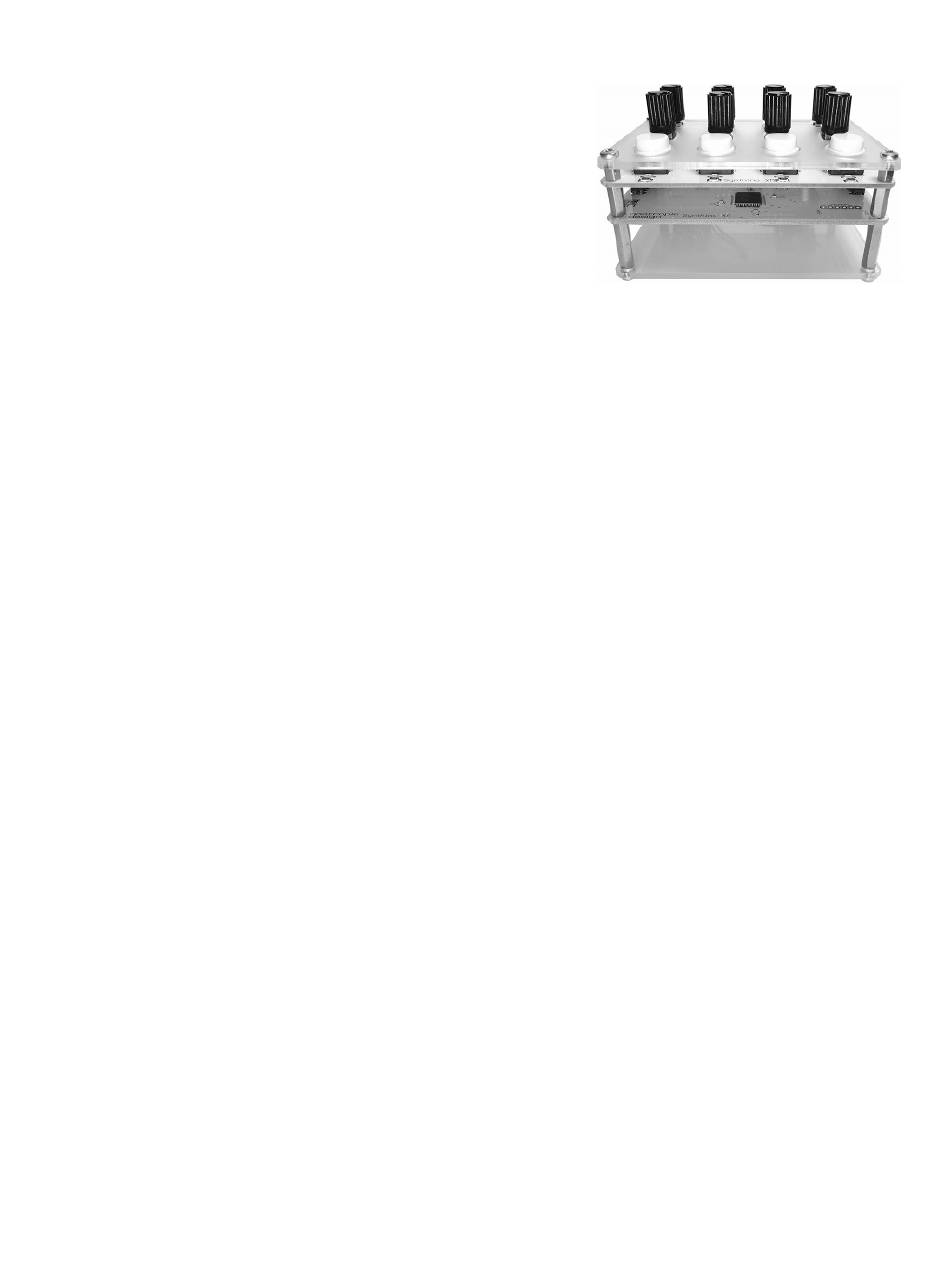

Synthino XM
MIDI Synthesizer
Features:
● 5note polyphony for superb playability
● 12 waveforms, noise generator, 5 drum samples (kick, snare, hihat, tom, clap)
● 12bit audio at 25KHz output rate
● 4 voices, each with independent waveform and ADSR envelope settings
● low pass filter with cutoff frequency and resonance controls
● 2 independent low frequency oscillators (LFOs): pitch and filter
● selectable waveform for LFOs
● 1V pp audio output voltage with enough current to drive headphones
● volume control
● MIDI over standard 5pin DIN cable or USB
● MIDI over USB works with DAW software on Mac and Windows computers as
well as iOS and Android devices
● arpeggiator mode with 4 patterns: up, down, updown, random
● 4 builtin arpeggiator chords or use MIDI to specify up to 16 notes
● arpeggiator pitch transposition control
● 16step live performance "groovebox" sequencer
● pitch finetuning adjustment
● programmable/upgradable over USB
Polyphonic
™
Advertisement
Summary of Contents for Synthino XM
- Page 1 Synthino XM Polyphonic ™ MIDI Synthesizer Features: ● 5note polyphony for superb playability ● 12 waveforms, noise generator, 5 drum samples (kick, snare, hihat, tom, clap) ● 12bit audio at 25KHz output rate ● 4 voices, each with independent waveform and ADSR envelope settings ● low pass filter with cutoff frequency and resonance controls ● 2 independent low frequency oscillators (LFOs): pitch and filter ● selectable waveform for LFOs ● 1V pp audio output voltage with enough current to drive headphones ● volume control ● MIDI over standard 5pin DIN cable or USB ● MIDI over USB works with DAW software on Mac and Windows computers as well as iOS and Android devices ● arpeggiator mode with 4 patterns: up, down, updown, random ● 4 builtin arpeggiator chords or use MIDI to specify up to 16 notes ● arpeggiator pitch transposition control ...
-
Page 2: Getting Started
Getting Started Powering the Synthino XM The Synthino XM can be powered by 9V battery or by USB power using a USB cable with a “mini” connector. Only connect one power source at a time. When powering with a 9V battery, the ¼” audio jack serves as a power switch. The device can be turned off by removing the audio plug, and turned on by inserting the audio plug. When powering with USB, the device is powered whenever USB power is connected. When using USB power, ensure that the contacts on the 9V battery connector are not touching any electrical connections on the circuit boards. Audio Output The Synthino XM audio output is ¼” m ono . D o not connect a ¼” stereo plug, as this will cause excessive noise in the output signal. Only use a ¼” mono plug to connect your equipment, such as an amplifier. The Synthino XM comes with a ¼” mono to 3.5mm stereo adapter which can be used with headphones or to connect to other equipment. Volume Control The output volume is controlled using the small thumbwheel on the right side of the Synthino XM. Clockwise (pulling toward you) is higher volume, counterclockwise is lower volume. Mode Selection The Synthino XM has 3 modes: synthesizer, arpeggiator, and groovebox. When Synthino XM is powered on, all the LEDs blink, prompting you to select a mode by pressing one of the buttons (13). The details of each mode are described in following sections. System Reset The Synthino XM can be reset by holding down button 4 for two seconds. The LEDs will then blink, prompting you to choose a mode as described above. ... -
Page 3: User Interface
User Interface Understanding Voices, MIDI Channels and Polyphony When using synthesizer mode, the Synthino XM controls let you define 4 different voices. Each voice can have its own envelope and waveform, allowing you to play 4 completely different sounding instruments at the same time. A voice is defined by the set of parameters that make a particular sound or instrument. Specifically, a voice is defined by a waveform and the ADSR (attack, decay, sustain, release) envelope parameters. The v oice select pot lets you specify which voice that the waveform and envelope controls are changing. The incoming MIDI channel is mapped to one of the 4 voices. Channels 14 map directly to voices 14. Higher MIDI channels “wrap” naturally, so notes on channel 5 use voice 1, notes on channel 6 use voice 2, etc. The Synthino XM is polyphonic and can play up to 5 notes at the same time, regardless of voice or MIDI channel. As an example, you might be playing your keyboard controller on channel 1 and can play up to 5 notes simultaneously, all played with voice 1 parameters. Or you might be using sequencer software on your computer playing 4 different tracks on different MIDI channels, and the 5 simultaneous notes are spread across those channels, playing different voices. Secondary Functions on Pots and Buttons In some modes, pots and buttons may have secondary functions labeled as " f n : ". These functions are enabled/disabled by tapping button 4. When secondary functions are enabled, the LED under button 4 flashes and the particular pot or button now controls the parameter labeled as “ f n : ”. Example : In synthesizer mode, pot 8 (rightmost pot in second row) controls the filter cutoff ... - Page 4 Waveforms and Samples In all modes, the w aveform pot lets you select from 12 waveforms, the noise generator, and 5 drum samples. In order from lowest pot position to highest: 1. sine 2. triangle 3. sawtooth 4. square 5. piano 6. electric piano 7. electric organ 8. cello 9. violin 10. oboe 11. flute 12. electric bass 13. noise generator 14. kick drum 15. snare drum 16. hihat 17. tom 18.
- Page 5 Mode 1: Synthesizer Synthesizer mode allows you to play the Synthino XM with a MIDI controller connected to the MIDI jack or from your favorite DAW (digital audio workstation) software with MIDI over USB. You can also play the synthesizer in standalone mode using the 3 note buttons. Explore different sounds by changing the waveform, controlling the note envelope parameters (ADSR attack, decay, sustain, release), modulating the pitch and filter with independent LFOs for each, and adjusting the low pass filter. Each of the 4 independent voices has its own waveform/sample and ADSR envelope parameters. The w aveform pot lets you choose from waveforms 112, noise generator, and 5 drum samples. To access secondary pot functions denoted by “fn:”, tap the f n toggle b utton. Hold f n toggle for two seconds to reset device. Use v oice select pot to choose which voice the controls are changing. LED indicates which voice you selected. Voices 14 are associated with MIDI channels 14. Higher MIDI channel numbers map to voices 14 by wrapping. e.g. notes on channel 5 use voice 1, notes on channel 6 use voice 2, etc. ...
- Page 6 MIDI channel 10 reserved for percussion sounds in the MIDI specification. Incoming notes on channel 10 are mapped to drum samples with various speed/duration to emulate as many percussion instruments as possible. Since channel 10 maps to voice 2 controls, you may use the voice 2 r elease parameter to specify the duration of the drum sample after it is released. Buttons 13 can be used to play notes in standalone mode. Use b utton pitch t o change the pitch of a pressed button. Notes are played using the currently selected voice parameters. The digital lowpass filter is global and filters all voices at the same time. Use f ilter cutoff and filter resonance to change its behavior. There are two independent low frequency oscillators (LFOs), one for pitch and one for filter cutoff frequency. Use the LFO r ate and d epth parameters to control each LFO. Disable an LFO by setting its rate to the lowest setting. The filter LFO causes the cutoff frequency to modulate around the c urrent f ilter cutoff setting. If you don’t hear much modulation, change the ...
- Page 7 Mode 2: Arpeggiator The arpeggiator lets you play predefined arpeggios or set your own arpeggio notes with MIDI. start/stop : Start and stop the arpeggiator pattern : Cycle through the arpeggio patterns UP, DOWN, UPDOWN, RANDOM chord/MIDI : Cycle through four 4note arpeggio chords major, minor, M7, m7. If you have a MIDI controller connected, played MIDI note sets the root note of the arpeggio. The 5th “chord” is MIDI input mode. In this mode, the arpeggiator creates an arpeggio from the notes you play on the controller. It does not matter which MIDI channel is used. transpose : Transpose the current arpeggio up or down BPM : Set arpeggiator speed in the range of 20 to 300 beats per minute. (If MIDI clock pulses are being received by the device, this control will have no effect.) time division : Change the note length relative to the rate in BPM. Cycle through values quarter notes, eighth notes, sixteenth notes, 32nd notes. The default is sixteenth notes. note length : Change length of each note in arpeggio. This allows you to have very short staccato notes or long notes with no break between them. ...
- Page 8 Mode 3: Groovebox Live Sequencer Groovebox mode is the most sophisticated feature of the Synthino XM. It is a "live" 16step sequencer which allows you to lay down 4 different tracks by playing a MIDI controller. For simplicity this mode does not have secondary functions on the controls. When the sequencer is running, any MIDI note or drum sample you play will be recorded to the current track and repeated as the sequencer runs. You can simply play different notes to record over what is currently recorded on the the track. Each track has independent envelope ( a ttack , r elease ) and volume. Each note can have a different w aveform , even on the same track. The waveform recorded is the waveform that was selected when the note was played. Using MIDI channel 10 is a great way to lay down a drum track, since channel 10 MIDI notes are mapped to various percussion samples (i.e. the waveform setting is ignored). start/stop : Start and stop sequencer track select : Choose which track you are editing. The LED indicating track 14 will blink momentarily when you change tracks. Try this first with the sequencer stopped. The incoming MIDI channel number does not matter (except in the special case of channel 10 drum samples). clear track : Clear the current track ...
- Page 9 preview : Tap to enable/disable preview. When enabled, you can play notes without recording them to current track. The LED under the button indicates that preview is enabled. track volume : control volume of current track BPM : Set sequencer speed in the range of 20 to 300 beats per minute. (If MIDI clock pulses are being received by the device, this control will have no effect.) transpose : transpose notes up/down (drum samples are not transposed). Transpostion is relative to the position of this knob when the note was recorded. metronome : enable/disable the metronome. There are 3 modes: OFF, quarter notes (every 4th sequencer step), sixteenth notes (every sequencer step). ...
- Page 10 Saving and Loading Patches/Sequences When using any mode you may save and load your patch settings so that you don’t have to set up all of your parameters again. Also, if you are using groovebox mode you may save your entire sequence to memory. There are 4 slots in EEPROM memory for you to save your patch settings and sequence. Patch settings include the ADSR envelope parameters and waveform setting for each channel. It also includes the filter cutoff setting, filter resonance setting, and the LFO waveform setting. When in groovebox mode, the current sequence is also saved. Saving a Patch/Sequence Hold down button 1 and button 4 for two seconds to initiate the reset procedure. When button 1 is held during reset, the Synthino XM will allow you to save the current patch + sequence in one of the 4 memory slots. You will hear a short beep. W hile still holding down button 1, turn the pot just above button 1 to select one of the 4 memory slots to save in. The selected memory slot will be indicated by one of the 4 LEDs. When you have selected the memory slot, release button 1. The LED will blink while the data is saved to memory. This may take a few seconds when an entire sequence is saved (when in groovebox mode). After saving is complete you will hear a short beep. Now all 4 LEDs will blink (just as with a normal reset) prompting you to choose which mode to enter. The patch+sequence you just saved will be loaded after you choose the mode. Loading a Patch/Sequence Hold down button 2 at startup or while holding down button 4 to reset. When button 2 is held during startup or reset, the Synthino XM will allow you to read a set of patch settings and a sequence from one of the 4 memory slots. W hile still holding down button 2, turn the pot just above button 1 to select one of the 4 memory slots to load from. The selected memory slot will be indicated by one of the 4 LEDs. When you have selected the memory slot, release button 2. Now all 4 LEDs will blink (just as with a normal reset) prompting you to choose ...
-
Page 11: Midi Messages
MIDI Messages The Synthino XM responds to a wide variety of MIDI messages to control its behavior and various parameters. MIDI p rogram change messages with values 118 can be used to select the waveform/sample. MIDI p itch bend messages will bend the notes on a channel up to 2 semitones up/down. The arpeggiator and groovebox mode B PM rate may be controlled with MIDI clock pulses. If the Synthino XM detects MIDI clock pulses, they will be used to set the rate and the BPM pot will be ignored until MIDI clock pulses stop arriving. MIDI s tart and s top messages will start and stop the arpeggiator and sequencer. The MIDI s ystem reset message will reset the device. Control Change Map CC # MIDI Name Synthino XM Parameter 73 attack time ... - Page 12 Finetuning Procedure To finetune the pitch of the Synthino XM, hold down button 4 when powering on the device, and keep holding it down. You will hear two beeps and then an A4 note (440Hz). Turn the pot just above button 4 to adjust the pitch of A4 to match your other instruments. When you release button 4, Synthino XM will remember this tuning even when powered off. Hardware Test Procedure If you believe that one of your pots or buttons is not functioning, perform this procedure. Disconnect power and set all the pot positions to zero. Hold down button 1 while powering on the device. You will hear a low beep while holding the button. Press each button to ensure that the tone sounds and the LED below the button illuminates. To test the pots, hold down a button and then, one by one, turn each pot up and then down again. The pitch of the tone should vary as you increase the pots. Factory Reset Procedure To erase the contents of the EEPROM (saved patches, sequences, fine tuning settings), hold down both buttons 1 and 2 when power is turned on. You will see LED 1 blink while the entire memory is being erased. ...
-
Page 13: Troubleshooting Guide
I don’t hear any sound. Check the volume thumbwheel on the right side. Turn it clockwise (toward you) to increase volume. Check to see that the filter cutoff frequency is not set to zero. Ensure that your MIDI controller is sending on the right channel. If using the groovebox sequencer, make sure the track volume is not set to zero on the current track. The waveform and envelope controls are not changing the sound I’m playing on my controller. The voice select pot controls which voice the controls affect. Turn the voice select pot to choose voice 14 as indicated by the LEDs. Ensure that your MIDI controller is sending on the channel that corresponds to the selected voice. The filter LFO does not have much effect. The filter LFO modulates around the current cutoff setting. If this is set too high or too low, you will not hear much modulation. Adjust the filter cutoff. If you cannot solve your problem by reading this manual or in the support forum on synthino.com, please email s upport@synthino.com for assistance. ... - Page 14 Updating the Synthino XM Firmware Windows PC Download the F lip tool from Atmel . For driver navigate to Flip Folder. Watch this video tutorial . Mac OS X Download the D FU Programmer Utility disk image. It contains a folder dfuprogrammer0.6.2 which contains the command line utility d f u p r o g r a m m e r . To upload a firmware hex file (e.g. ‘synthino_xm.hex’) to the Synthino XM device, perform this procedure. Hold down button 3 then connect USB between your Mac and the Synthino XM. ...
