IFPM21, IFPM31, IFPM/S71, IFPS101

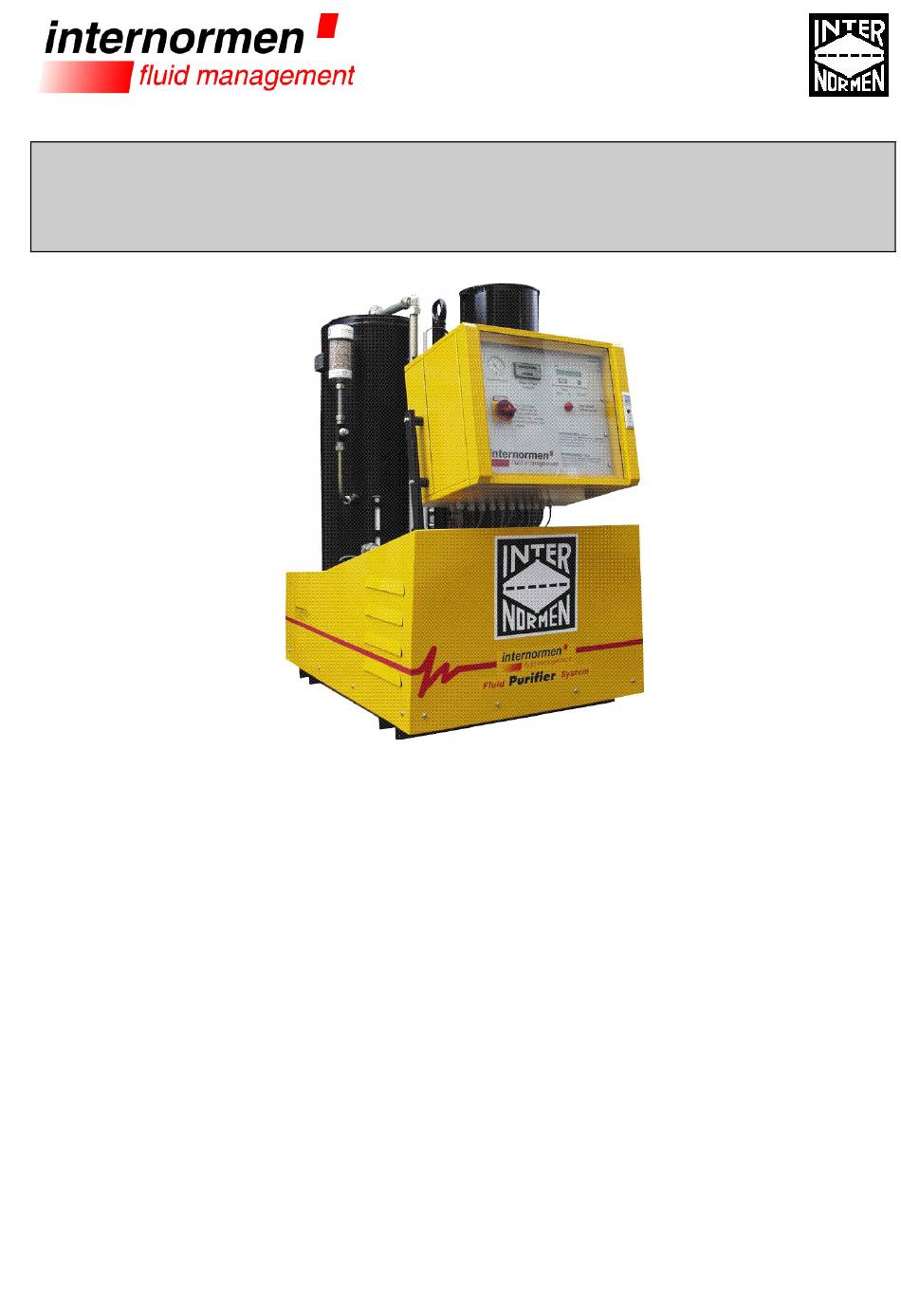

Internormen Fluid Purifier Systems
original operating manual
INTERNORMEN
Technology
Friedensstraße 41
Germany – 68804 Altlußheim
Tel. +49 (0) 6205 – 2094 - 0
Translation of the
Version 1.1
Serial-no.:
Rev.-Date:
GmbH
..................
05.08.2011
E-Mail: info@internormen.com
http://www.internormen.com
FAX +49 (0) 6205 – 2094 – 40
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for INTERNORMEN IFPM21
- Page 1 IFPM21, IFPM31, IFPM/S71, IFPS101 Internormen Fluid Purifier Systems Translation of the original operating manual Version 1.1 Serial-no.: ....Rev.-Date: 05.08.2011 INTERNORMEN Technology GmbH Friedensstraße 41 E-Mail: info@internormen.com Germany – 68804 Altlußheim http://www.internormen.com Tel. +49 (0) 6205 – 2094 - 0...
-
Page 2: Table Of Contents
Contents SAFETY INFORMATION 1.1. Signal glossary ....................3 1.2. Safety notes ......................3 1.3. Intended use ....................... 4 TECHNICAL DATA PRODUCT DESCRIPTION 3.1. Layout ......................... 6 3.2. Electronic control unit ..................7 3.3. Functional principle ................... 8 OPERATION 4.1. Commissioning ....................8 4.1.1. -
Page 3: Safety Information Signal Glossary
Inhalation of process gas over extended periods can be harmful. The room into which the process gas is discharged must be sufficiently vented. In order to keep the emission on the lowest possible level only genuine Internormen coalescent elements shall be used. -
Page 4: Intended Use
Operating temperature: 20...80° C Ambient temperature: 0...40° C Viscosity: 12...700 mm²/s Noise pressure level: 69 dB (Af)* Degree of protection: IP54 Circulation flow rate: IFPM21: 20 l/min* IFPM31: 30 l/min* IFPM/S71: 70 l/min* IFPS101: 100 l/min* Mass: IFPM21: 315 kg... - Page 5 IFPM/S71: 590 kg IFPS101: 790 kg Heating power: IFPM21: 3 kW IFPM31: 3 kW IFPM/S71: 4 kW IFPS101: 8 kW * Viscosity of the liquid of 32 mm²/s and adjusted vacuum of -0.6 bar!
-
Page 6: Product Description
Product description 3.1. Layout Preheater Solenoid valve Vacuum chamber Silicagel air filter Throttle valve Temperature sensor Water sensor WSPS05 Level switches Hydrulic pump aggregate with pressure relief valve Nonreturn valve Filter Clogging indicator Vacuum pump Water collecting vessel Demister... -
Page 7: Electronic Control Unit
3.2. Electronic control unit Manometer WFD 01 Switch off temperature Display Display water saturation reduce increase and filter clogging indication Main switch Alarm... -
Page 8: Functional Principle
3.3. Functional principle The oil is drawn into the system by a vacuum, generated by an oil lubricated rotary • vane vacuum pump (13). First it will pass a preheater (1), afterwards it goes into the vacuum chamber (3) • through a 2/2 solenoid valve (2). -
Page 9: Electrical Connection
Recommended installation of the IFPM/S-units to the tank 4.1.2. Electrical connection The electrical connection is made with a CEE three phase current connector • according IEC 60309 with phase changing switch Before initial operation please check the position of the ball valves: •... -
Page 10: Silica-Gel Air Filter
The rotating direction of t The rotating direction of the vacuum pump is synchronized with the hydraulic pump. he vacuum pump is synchronized with the hydraulic pump. • After checking the rotating direction switch off the unit checking the rotating direction switch off the unit checking the rotating direction switch off the unit. -
Page 11: Selection Of The Viscosity Range
4.1.6. Selection of the viscosity range This message is for selection of the viscosity of the oil which will be purified. • Temperature influences must be considered at this selection. • This adjustment influences the overflow safety of the unit and can lead to malfunction and breakdowns at a wrong selection. -
Page 12: Adjustment Of The Switch Off Temperature Of The Preheater
4.1.7. Adjustment of the switch off temperature of the preheater During operation the switch off temperature of the heating can be adjusted with the • buttons [ ] [ ]. Furthermore the actual temperature will be shown at the display. •... - Page 13 ↵ ↵ ↵ ↵ By hitting [ ] + [ ] the time left till the next maintenance is being displayed. • ↵ ↵ ↵ ↵ As before, please hit the [ ] – button first. If the maintenance interval is exceeded, pushing these buttons will display the time •...
-
Page 14: Water Sensor
4.5. Water sensor The WSPS 05 is a capacitive sensor for the saturation level of water in oil apacitive sensor for the saturation level of water in oil apacitive sensor for the saturation level of water in oil • There is a difference to the measurement of the absolute water content with the There is a difference to the measurement of the absolute water content with the There is a difference to the measurement of the absolute water content with the Karl- •... -
Page 15: Water Saturation Display
The WFD 01 – Indicator is an efficient diagnostic tool to determine both the saturation • level of oil with water and the contamination level of the filter element It utilizes the WSPS0X (03/ 04/ 05) as well as a VS 1 series clogging indicator. It works •... -
Page 16: Indication Of Filter Clogging
4.6.2. Indication of filter clogging pressure peak suppression 0...60 s • ϑ ϑ ϑ ϑ cold start indication (Fluid temperature < 25 ° C), no indication about contamination < 50% • filter element not used, pressure difference: < 50 % ∆p-nominal •... -
Page 17: Other
The different components of the system are controlled by the following digital outputs of • the PLC: Output N° Function hydraulic pump vacuum pump heating solenoid valve signal light for low oil level in the vacuum pump The digital input signals and outputs can be either ON (LED is light) or OFF (LED is •... -
Page 18: Failure Messages
o oil viscosity o oil temperature o adjusted vacuum o length and cross section of the suction line o position of the IFPM/S relative to the reservoir In exceptional cases, for example at very high tanks, the vacuum chamber can overflow. This can be detected, if oil comes out at the separator. In these cases it is suggested to throttle the suction line, for example with the inlet ball valve. -
Page 19: Overflow
5.2. Overflow This message will be displayed, if at closed solenoid valve and running hydraulic pump • the oil level reached the highest level switch for a certain amount of time. The reaction time is determined by the chosen viscosity during the starting procedure •... -
Page 20: Motor Overload Hydraulic Pump
5.5. Motor overload hydraulic pump This message will be displayed, if the switch to protect the motor of the hydraulic pump • is activated. ⇒ Check the power supply, all three phases must be present. ⇒ After checked, open the control box and reset the motor protection switch manually 5.6. -
Page 21: Troubleshooting
5.7. Troubleshooting Error Possible reasons Remedy 1. Malfunction of the middle level switch 2. Malfunction of the highest level switch Check viscosity 3. Extreme foaming Check middle and highest 4. Loose connection to the PLC- level switch controls Reduce incoming flow rate Overflow 5. - Page 22 Oil is coming out Throttle the inlet flow rate, for after the 1. Vacuum pump has sucked in oil example with the inlet ball separator after from the vacuum chamber valve the vacuum pump...
