Summary of Contents for desklab Ultimate Monitor

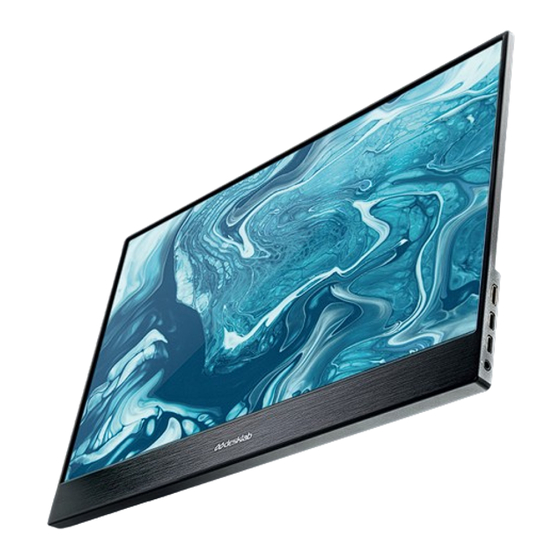

- Page 1 U SE R MAN UAL Ultralight Portable Touchscreen Monitor...
- Page 2 Features 15.6 in UHD 3840 x 2160 // FHD 1920 x 1080 16:9 IPS Monitor...
-
Page 3: Contents In Box
Contents in box Portable monitor (UHD or FHD) HDMI to mini HDMI USB-C to USB-C cable User manual USB-C Charger (5V, 4A AC Power Adapter) (only for UHD) -
Page 4: Device Layout
Device layout LEFT SIDE FRONT RIGHT SIDE BOTTOM... -
Page 5: Button Description
FUNCTION DESCRIPTION Long Press to Turn OFF / Turn ON Power Short Press : Return Push up: + volume; Push down: - volume; Wheel button Short press: menu Auxillary 3.5 mm Connect with speakers or headphones Mini HDMI Port Video / Audio input port Power &... - Page 6 Using Desklab's buttons Power On: Show power button for 2 seconds. Power Off: Hold power button for 5 seconds. Return/Exist: While on menu status, show press for return. Show Settings Menu: Press wheel button. While on menu status, short press to confrm and save your setting.
-
Page 7: Led Indicator Light
Blue Color: No valid source / Standby status Red Color: Dark: OFF Desklab Menu settings 1080p Full HD (FHD) PICTURE • Brightness: Select brightness level between 0 (lowest) to 10 (highest) • Contrast: Select contrast level between 0 (lowest) to 10 (highest) •... - Page 8 • Low Blue: Toggle ON or OFF. Low Blue Light Technology reduces the emission of the harmful low-blue lights on a display in order to prevent eye fatigue • Color Gamut: Select from the following (sRGB, ADOBE, USER, NATIVE) AUDIO •...
- Page 9 4k Ultra HD (UHD) PICTURE • Brightness: Select brightness level between 0 (lowest) to 10 (highest) • Contrast: Select contrast level between 0 (lowest) to 10 (highest) • Eco: Select View Mode Settings (Standard, Game, Movie, Photo, Vivid, User) • DCR: Dynamic Contrast Ratio (ON or OFF). Selecting ON will allow higher contrast ratios •...
- Page 10 OTHER • Language: Select language • Display rotate: 0 or 180 degrees • Ultra HDR: Select from the following (OFF, AUTO, 2084) • Reset: Reset all settings to factory default INPUT • Auto Select (recommended) • Type C (port 0 or 1) •...
- Page 11 Ports and connection 1. Video • Connect to monitor’s HDMI / USB-C port with a valid source such as a PC or gaming console. NOTE: Not all PC, laptop, or mobile phone USB-C ports output signal. Please see the FAQ for more information. 2.
- Page 12 To activate touch functionality, connect the monitor to your computer via either via either a USB 3.0 A to USB-C cable or USB-C to USB-C cable through which the touch signal from the Desklab will be sent to your device.
- Page 13 input mini HDMI PC / Game Consoles / TV Box / etc. PORTABLE MONITOR input micro USB Keyboard / Mouse input USB-C PC / Laptop / Power Macbook / etc. 5V, 2A (FHD 1080p) 5V, 4A (UHD 4K) output AUX 3.5mm Speakers / Earphones...
- Page 14 How to connect your Desklab USB-C HDMI USB-C HDMI USB-C (USB-C to power the monitor) May be required if your device's output power is not sufficient, especially for UHD model. USB-C USB-C (USB-C to power the monitor) May be required if your device's output power is not sufficient,...
- Page 15 UHD monitor is not powering on. • Not all mobile devices output signal and may not be able to work with the Desklab. See the FAQ for more informa- tion. • If your touchscreen or display does not work with any of these configurations, please consult the FAQ at the end of...
-
Page 16: Troubleshooting (Faq)
• Make sure you're also providing enough power to the monitor (5V, 2A for FHD 1080p model and 5V, 4A for UHD 4K model). Many tablets and mobile devices do not output sufficient power to turn on the monitor. Please power by connecting the Desklab to a charger or another device. - Page 17 Desklab will not be touchscreen compatible. • Desklab's mini HDMI input does not output touchscreen signal. You will need to connect your device via USB-C and potentially power your monitor via another USB-C port if your device does not output sufficient power for the touchscreen to work.
- Page 18 10. Screen image has color defects (white does not look white) • Inspect the USB-C Cable and make sure that none of the pins are bent. • Use another USB-C or HDMI cable to connect your device to the Desklab.
- Page 19 We recommend powering the Desklab via a power plug if this continues happening with your device. • Check if the signal source (your phone, computer, console, etc.) went into sleep mode.
- Page 20 www.desklabmonitor.com support@desklabmonitor.com...
