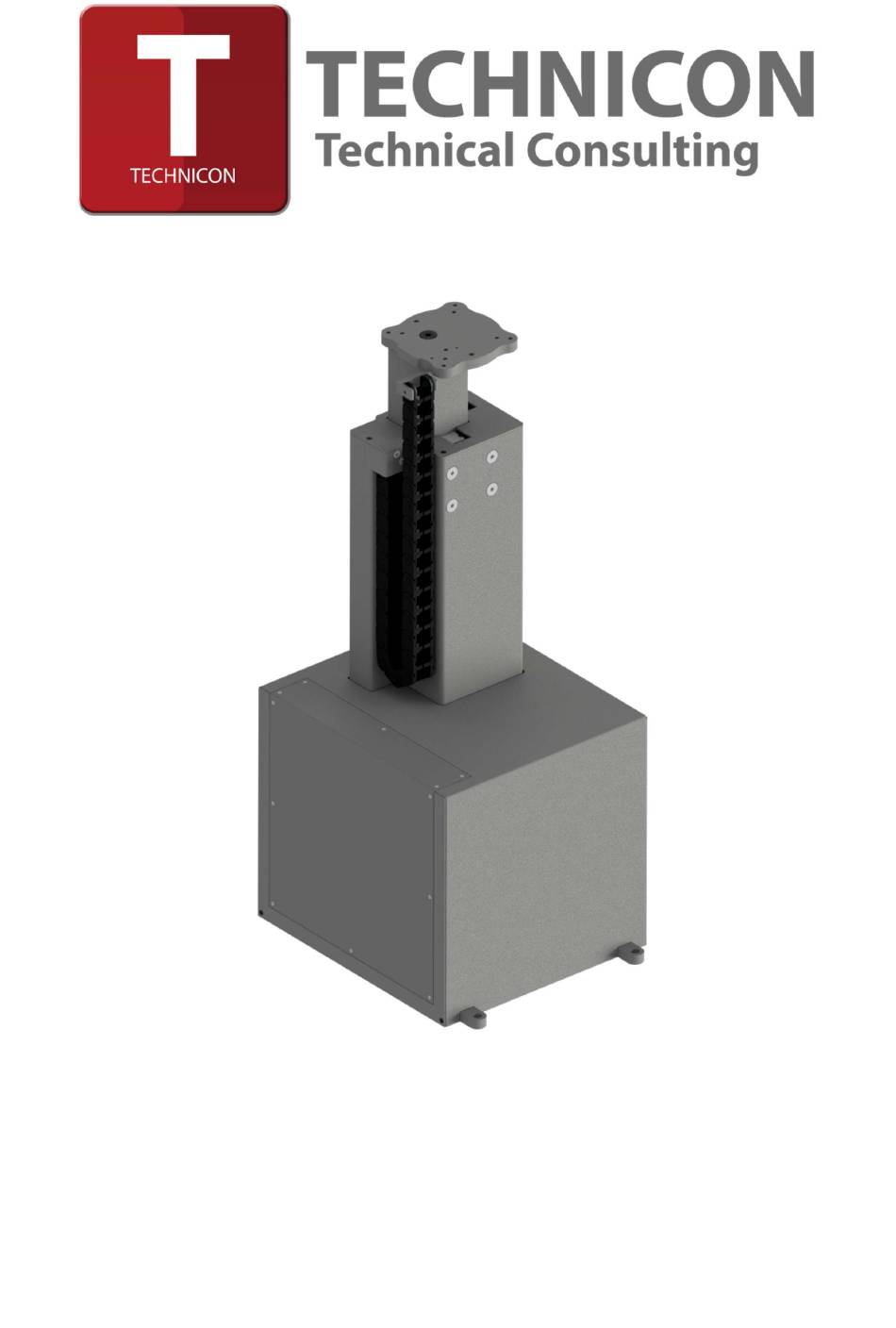

Page 1 User manual Lift Stand Version EN 2018/09 (rev. 1.1))
Page 3 Foreword LiftStand is a Plug and Play solution for UR5 and UR10 robots, which allows the robot to control an extra degree of freedom by lifting the robot vertically. The position is controlled through a user-friendly UR-certified Cap, which can be handled with the same ease as other UR-programming.
Page 4: Table Of Contents
Contents About the user's Guide ....................1 General ....................... 1 Validity ........................ 1 Product Warranty ....................2 Disclaimer ......................2 General Safety Instructions ..................3 Generally ......................3 Intended use ....................... 3 Reasonably foreseeable misuse ................. 3 Lifetime ....................... 3 Safety devices ....................
Page 5 5.2.1 Control of the LiftStand at fixed values ............17 5.2.2 Control of the LiftStand when using a variable ........... 18 Help in case of failure ....................20 In case of failure ....................20 Maintenance task for technical personnel ..............21 Security ......................
Page 7: About The User's Guide
1.1 General This user manual is Technicon ApS’s original user manual for Lift Stand. These instructions are intended to facilitate the knowledge of LiftStand and how to use the intended application features. The instructions must be read and be applied by any person authorized with tasks involving the LiftStand.
Page 8: Product Warranty
Product Warranty Please refer to the contract for sales and delivery terms from Technicon ApS. Disclaimer Technicon ApS expects that the content of this manual is precise and accurate but takes reservations for any errors or missing information. User manual Lift Stand Version EN 2018/09 (rev.
Page 9: General Safety Instructions
2.2 Intended use LiftStand is intended as a "Plug & Play" solution for Universal Robots’ UR5 and UR10, which allows the robot to control an extra degree of freedom by lifting the robot vertically.
Page 10: Safety Devices
2.5 Safety devices There are no safety devices such as emergency stop on LiftStand It is recommended to have a CO fire extinguisher (carbon dioxide extinguishes) within a reasonable distance of LiftStand. 2.6 Safety Signs To warn of the actual hazards, warning signs are located in areas where the danger can occur.
Page 11: Other Dangers
2.8 "Precautions". 2.10 Extension and Conversion One of the most important tasks for an integrator is the risk assessment. The LiftStand is a partly completed machine, as the safety LiftStand depends on how the LiftStand is being integrated (for example, with tools, obstacles, and other machines).
Page 12: Possible Emissions
2.11.2 Possible emissions In case of smoke from LiftStand the nearest fire extinguishing device must be ready for use in case of fire. Adequate ventilation is required to remove the smoke from the room. 2.11.3 First Aid measures In case of personal injury, the damage must be stopped appropriately and the LiftStand must be shut down from the control system or pulling the power plug.
Page 13: Technical Overview
3 Technical Overview Figure 3.1 shows a summary picture of LiftStand with numbered arrows. These are explained in terms of Table 3.1. Figure 3.1 Summary picture with numbered arrows. Version EN 2018/09 (rev. 1.1) Lift Stand User manual...
Page 14: Interface
3.1 Interface 3.1.1 Supply- and communication interface On the LiftStand there is mounted a 230 V Power Supply outlet (2) and a RJ45 Ethernet outlet (1), there must be used to supply your robot's controller with power and communication. The LiftStand shall be supplied with 230 V from the fitted cable with end plug (3) designed according to SB 107-2-D1.
Page 15: Mechanical Interface
Term Available outlet Ø22 mm Robot cable feedthrough hole Ø12,5 mm Table 3.2 Naming convention 3.1.2 Mechanical interface At the top of the column is a UR robot flange on which a UR5 or a UR10 can be mounted, see 1 on Figure 3.1. Figure 3.3 Robot Flange Version EN 2018/09 (rev.
Page 16: Installation And Commissioning
4 Installation and Commissioning 4.1 Mounting Mounting of the LiftStand is done by 4 M12 bolts. These must be tightened with least 86.8 Nm. The floor must be flat and must not be inclined > 3°. Danger of injury Please note that the ground surface must withstand the required torque.
Page 17 of the cables so they reach their destination sufficient, and finally the top plate is mounted again. Figure 4.2 Installation of the energy chain. Figure 4.3 Energy chain cross-section. Type Value 25 mm 37 mm Version EN 2018/09 (rev. 1.1) Lift Stand User manual...
Page 18: Mounting The Robot
LiftStand and UR controller with an Ethernet cable, see arrow 1 on Figure 3.2. Thus, the LiftStand is installed and ready for operation. The next step is the installation and setup of the LiftStand URCap.
Page 19: Operation - Software
This chapter will guide the user through all the necessary steps to be able to set up the corresponding UR Cap. The setup includes installation of Cap, connection between the robot and the LiftStand and maximum motion speed setting. When the setup is complete, the user can use the LiftStand through the corresponding program node.
Page 20: Configuring Ur Cap
To complete the installation Press "restart". Once UR Cap is successfully installed it must be configured. 5.1.2 Configuring UR Cap Before the LiftStand’s UR Cap can be used in a program, it must be configured. From the Polyscope boot screen navigate to setup screen seen on Figure 5.3. Program Robot→Installation→LiftStand→Setup...
Page 21 Figure 5.3 The LiftStand Configuration screen Make sure the check box "Activate LiftStand" is checked and that the "is running" is displayed on the right before continuing. 5.1.2.1 Creating a connection between robot and LiftStand LiftStand is configured in advance with a static IP address. This is "192.168.1.6" and is written in the "IP"...
Page 22: Use
When the IP address is configured, it is possible to set the maximum speed in the "maximum velocity [mm/s]" field. At every run of the LiftStand it will try to reach the set speed. If you enter a value that is higher than possible, the window will write what the allowed range is and set the value closest to the entered.
Page 23: Control Of The Liftstand At Fixed Values
"Enter height [mm]:". If you want to test the height before running the program, press the "Go to Here" button, and the LiftStand will run to the set value immediately. An example of a program where the LiftStand is controlled with fixed values can be seen in Figure 5.6.
Page 24: Control Of The Liftstand When Using A Variable
"Choose Variable:". An example of variable use is seen on the Figure 5.7. If the value of a variable, while driving, proves to be outside the stroke length of the LiftStand, a pop-up warning will appear, and the program will stop. User manual Lift Stand...
Page 25 Figure 5.7 Program example with the use of variable Version EN 2018/09 (rev. 1.1) Lift Stand User manual...
Page 26: Help In Case Of Failure
3. Description of how the error occurred. If a fault occurred in connection with the LiftStand UR-Cap, an error code will be added to the log in Polyscope. This can be an exception error or a Festo warning or error.
Page 27: Maintenance Task For Technical Personnel
ISO 50110-1:2013 provisions must be instructed how best to intervene and stop an accident. 7.2 Corrective Maintenance If strange sounds or unusual vibrations is detected from the LiftStand, the fault must be pinpointed and improved. If this is not possible, an authorized installer must be called.
Page 28: Performing Maintenance Tasks
Repairers and maintenance personnel must, before commencing work, be instructed in safety conditions around LiftStand. New maintenance personnel must be trained by an experienced colleague. 7.4 Preventive Maintenance In the LiftStand there are linear guides to be inspected and maintained by lubrication. Range Activity Comments...
Page 29: State-Based Maintain
Figure 7.1 LiftStand driven in bottom, with top plate dismantled, thus sleds can be greased. 7.5 State-based Maintain During monthly inspection and lubrication of the guides, wear is detected. In case of material abrasion contact Technicon and an inspection of belt must made.
Page 30: Transport And Storage
LiftStand must always be handled responsibly by knowledgeable staff due to the weight of 90 kg. LiftStand can be carried indoors on the pallet on which it was delivered. In addition, it can be moved in appropriate lifting equipment with the delivered lifting eye fastening to the robot flange, see Figure 8.1.
Page 31: Storage
8.2 Storage 8.2.1 Storage requirements LiftStand can be stored at a room temperature between -10 and +50 °C. LiftStand must be wrapped so that all visible surfaces are covered. 8.2.2 Preparing the LiftStand All energy supply is removed before storage.
Page 32: Disassembly
Before dismantling, the LiftStands electrical supply must be opened (voltage disconnected) and locked. 9.2 Disposal and Recycling LiftStand is dismantled and sorted in categories as required by applicable environmental requirements. The product is subject to Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).
Page 33: Technical Data
10 Technical data Technical Min. Typical Max. Device Operating temperature 0 (32) 40 (104) °C (°F) Storage temperature -10 (14) 60 (140) °C (°F) Footprint 480x366 (18,9x14,4) (in) Height (Robot flange) 900 (35.43) 1400 (55.12) mm (in) Speed 8 (0.03) 775 (2.54) mm/s (ft/s) Acceleration...
Page 34 For experiencing LiftStand in 3D/AR on your mobile device, scan the QR code where it will appear in the app Augment . Print a tracker out here and watch LiftStand in the 1:1. QR code for 3D model QR-code for A4 Tracker See more information by http://www.augment.com/help/...
Page 35: Spare Parts List
11 Spare parts List Component Part number Illustration Energy chain 17503-9000-IGUS- 0_823m_E14_2_028_0 Lifting eye 17503-9000- 3100580C- 1501M0080000 Linear routing 17503-SKF- LLTHS30A1T0620P5 Lubricant SKF LGEP 2 Belt 17503-9000-FESTO- 1226027 Table 11.1: Spare Part List Version EN 2018/09 (rev. 1.1) Lift Stand User manual...
Page 36: Declaration Of Incorporation
Declaration of Incorporation User manual Lift Stand Version EN 2018/09 (rev. 1.1)
Page 37 Version EN 2018/09 (rev. 1.1) Lift Stand User manual...
Page 38 Address documentation or the hardware and software decribed therein. Sjællandsvej 19 Backing up and updating data is the user's responsibility. Technicon ApS Assumes no responsibility for the loss or manipulation of pre-existing DK-9500 Hobro databases.
