STATICO S2114 Product Information / User Manual

Product Information & User Manual for S2114

Description

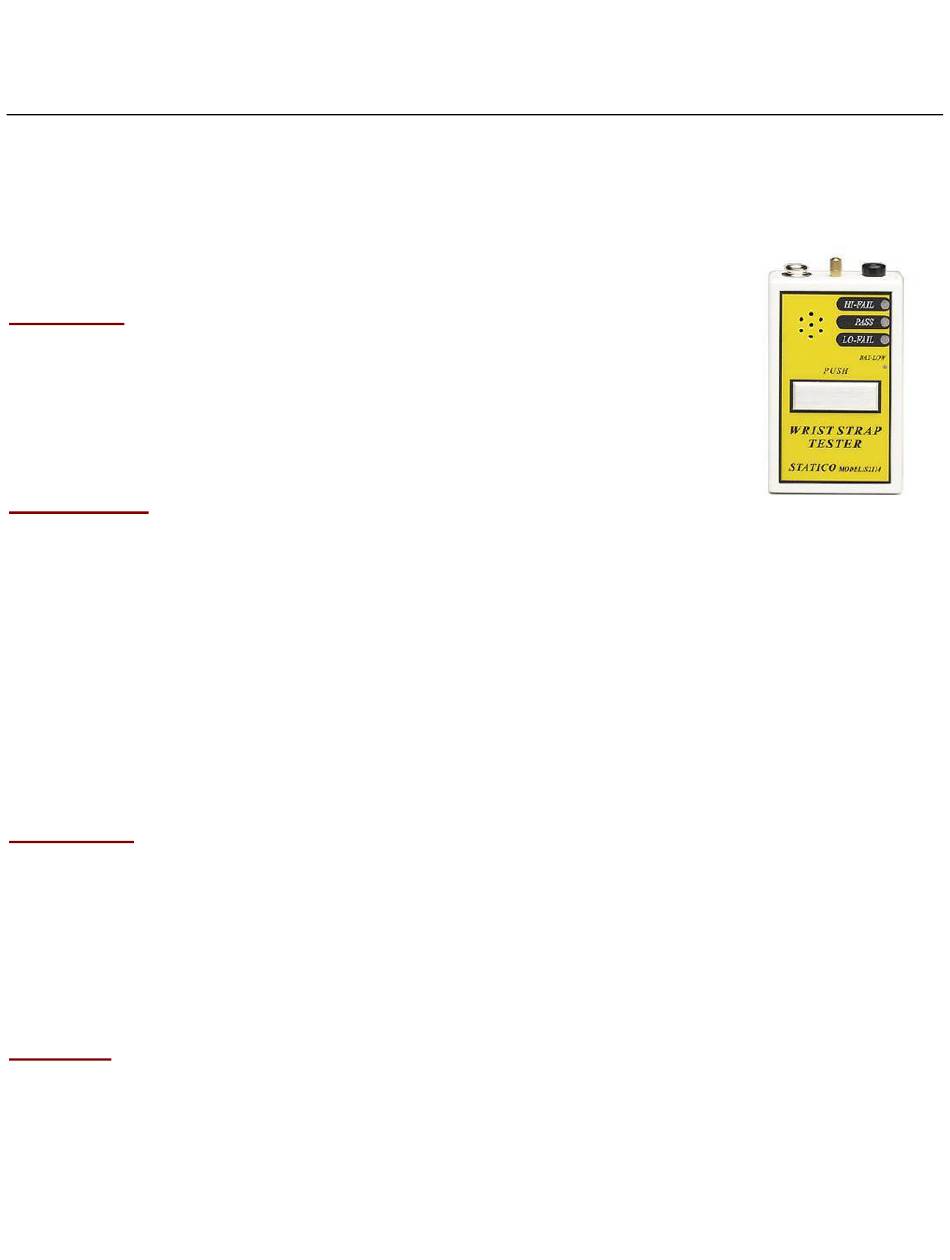

The S2114 is a precise device to perform on demand testing of all standard & conventional
single conductor Wrist Grounding Straps for proper skin resistance, continuity, and the built-in
safety resistor. This product features 3 universal Receptacles/Contact Points for a wrist strap
assembly: Banana Plug, Alligator Clip, & 3/8" Male (10mm) Stud. NIST Certified.
Meets ANSI/ESD S20.20-2014.

Specifications

Lo- Fail (Constant Red LED indicator)
Pass (Green LED & Continues Audible indicator)
Hi Fail (Constant Red LED Indicator)
Accuracy
Test Voltage
Operating Voltage
Low Battery set at
Operating Temperature
Storage Temperature
Relative Humidity
Net Weight
Weight with 9V Battery
Dimensions

Components

The package of S2114 includes:
•
1 Each The Tester
•
1 Each A 9VDC Alkaline battery*
•
1 Each Product Information
•
1 Each User Manual
Inspect the package upon receipt to make sure that all above are in the unit pack.

Functions

•
S2114 Is designed to check the followings in a standard single coonductor wrist grounding strap:
o
Existence of the molded 1 meg current limiting safety resistor at the snap end of cord.
o
Skin Contact
o
Continuity
