ZDL -GSM-516-5112 Quick Setup Manual

Mobile network voice intercom with access control
Hide thumbs

Advertisement

Quick Links

Download this manual
ZDL-GSM-516-5112 Mobile Network Voice Intercom
With Access Control
Quick Setup Guide
5XXX-Series
5MXX-Series
Key-Fob/Card Here
Key-Fob/Card Here
Touch Key
Press Button
Operation
Operation

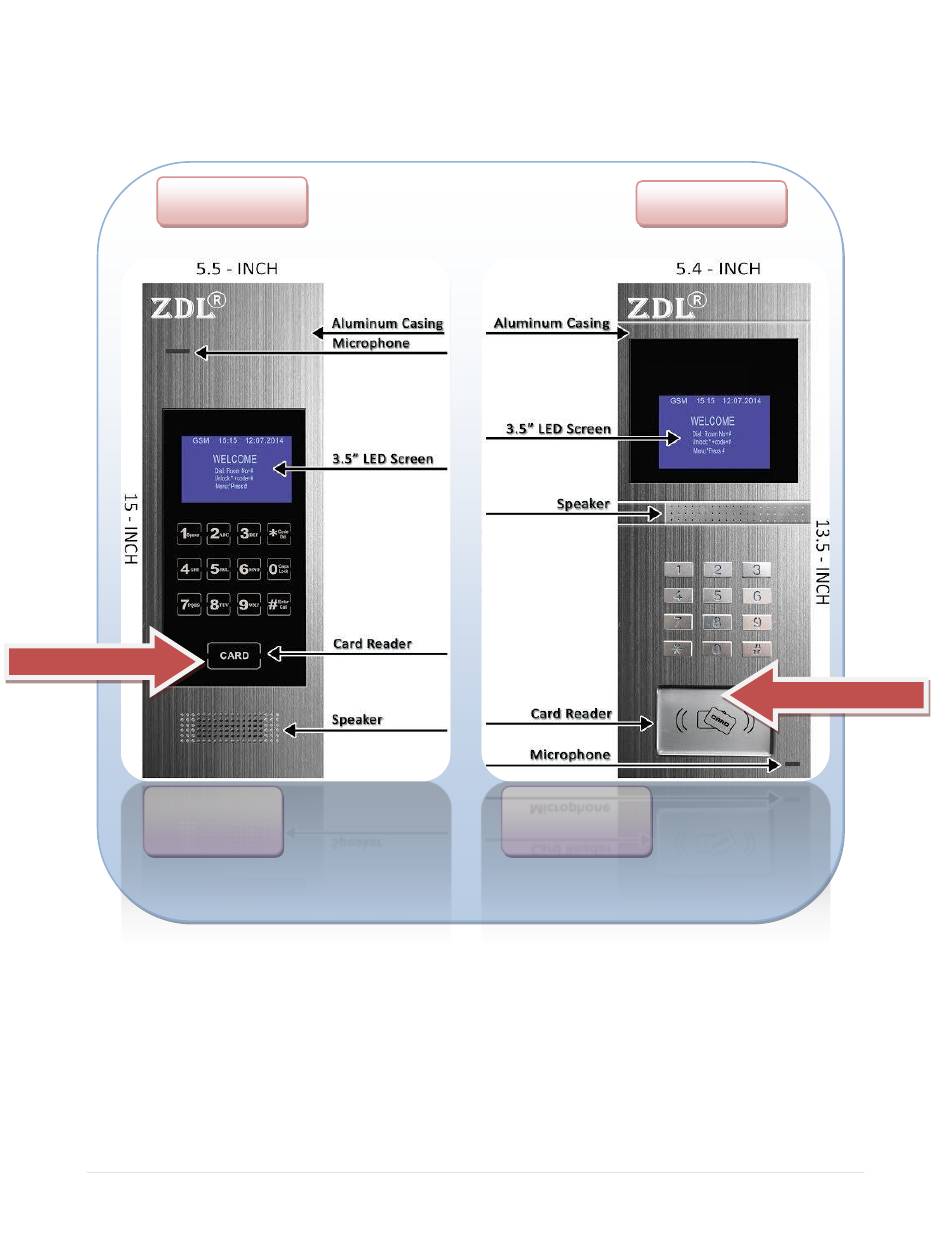

ZDL-GSM-516-5112
A Voice Only Intercom Access Control System designed to use Mobile/Cell-
phone Network. System works with any GSM-Mobile Network regardless of service provider and
Network type (3G/4G). System requires no major programming or computerization, just a simple plug
and play type system setup. Accessible anywhere using your "Smart Phone", edit/modify Tenant
Name/Contact Phone Numbers/Add-Delete Tenant Smart (Key-Fob) Card Info/Add-Delete Tenant
Entrance Unlock Code-Password and more.
1 |
P a g e
