Summary of Contents for Corentium QRI

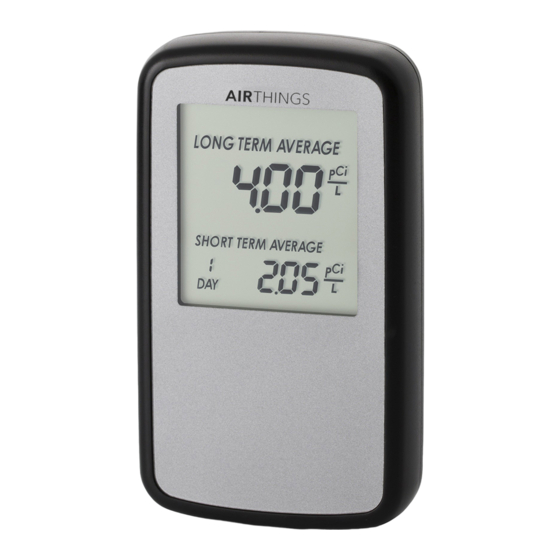

- Page 1 Contact Corentium for service questions: 1-855-561-4642. Contact Sylvane for sales inquiries: 1-800-934-9194. Digital Radon Monitor model QRI User manual...
- Page 2 Reset Mode The menu options may differ from what is illustrated in this user guide. KEY TO FIGURE 7. Unit of measurement: pCi/L 1. Indicator for low battery level. The batteries need to be 8. ‘RESET’. Button for resetting. replaced when this is displayed Used when a new measure- 2.
- Page 3 SAFETY Contact the seller if the product requires service or repairs. The front or back cover must not be opened. Avoid subjecting the unit to shock, impact, pressure, vibra- tions, dust and moisture. Condensation can occur if the unit is moved from a location with high atmospheric humidity to a cold location.
-
Page 4: Getting Started
GETTING STARTED • Insert the supplied batteries. Measurement will start au- tomatically after about 3 minutes. This is indicated by a flashing measurement indicator at the top right of the screen • If the screen displays the error message ‘Err’ and a number: press the RESET button, remove the batteries and put them back in •... - Page 5 The long term average is used to identify any potential health risk. The short term average is used primarily to see the ef- fect of measures to reduce the radon level – for example by increasing the ventilation. The building can be diagnosed by taking measurements for one week in all living areas, such as living rooms and bedrooms.
- Page 6 Beyond this, reference should be made to national consumer protection legislation. In the event of incorrect use or operation of the monitor, Corentium AS cannot be held responsible for any losses re- sulting from failure or from the loss of measurement data. See www.corentium.com for complete disclaimer.
-
Page 7: Specification
SPECIFICATION Sampling Method Passive radon diffusion chamber Detection Method Alpha spectrometry Power Supply 3 LR03 (AAA alkaline battery) 3 years battery life-time Power Consumption < 250μW Dimensions 120mm × 69mm × 22.5mm Weight 130 grams (incl. batteries) Operation Environment Temperature: 0 °C to +40 °C Relative Humidity <... - Page 8 Contact Corentium for service questions: 1-855-561-4642. Contact Sylvane for sales inquiries: 1-800-934-9194. © 2013 Corentium AS. All rights reserved. CORENTIUM® is a registered trademark of Corentium AS. Supplementary information about the product can be found at www.corentium.com USV2.0 Designed and manufactured in Norway...
