Summary of Contents for Havana WR-35D

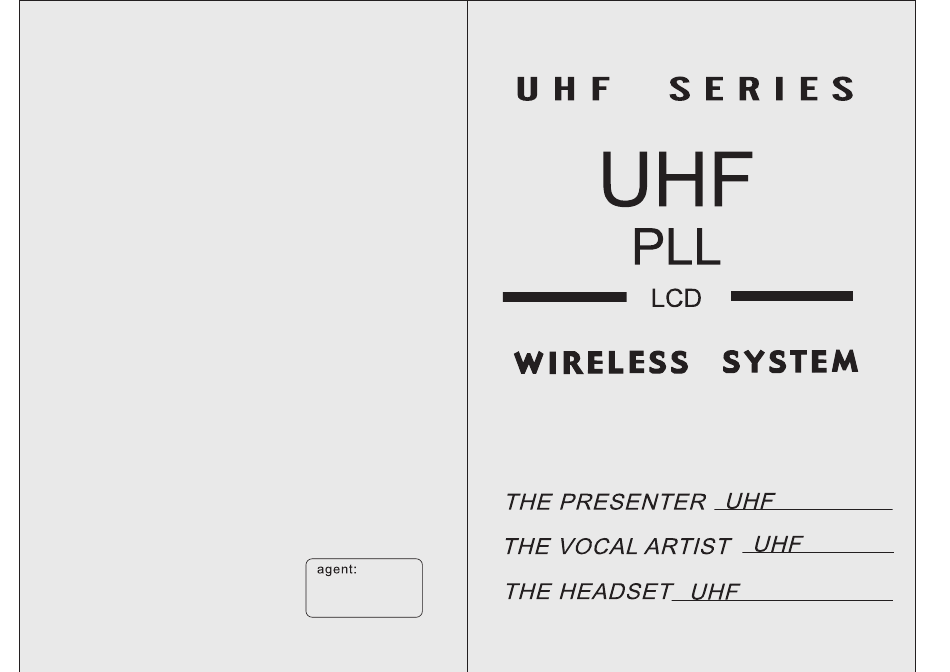

- Page 1 WR-14...
- Page 2 1.FOREWORD.................2 2.SYSTEM FEATURES..............2 3.SYSTEM TYPE................2 4.SINGLE CHANNEL RECEIVER FEATURES........3 5.DUAL CHANNEL RECEIVER FEATURES..........4 6.TRANSMITTER FUNCTION & FEATURES........5 7.SYSTEM CONNECTIONS...............6 8.BODYPACK TRANSMITTER CONNECTION........7 9.TRANSMITTER BATTERY INSTALLATION........7 10.SPECIFICATIONS..............8-9...
- Page 3 ANT.A ANT.B ANT.A ANT.B 10 11 12 10 10 11 1.Power Switch: Power ON/OFF the receiver. 1.Power Switch: Power ON/OFF the receiver. 2.Power Indicator: Indicate the power ON/OFF. 2.Power Indicator: Indicate the power ON/OFF. 3. LCD Information Display: Show the receiver frequency channel ect. 3.
- Page 4 1. Power and Audio Mute Switch. 2. Antenna: Transmit the RF signal of transmitter. 3. Belt Clip: Attach the transmitter to the belt. 4. Audio Input Jack: it is suitable for lavalier system/headset system. 5. Low Battery Indicator: Red light glows when it is lack of power and should renew the battery.
-
Page 5: Transmitter Battery Installation
BODYPACK TRANSMITTER CONNECTION 1 . L a v a l i e r M i c r o p h o n e C o n n e c t i o n : C o n n e c t t h e c o n n e c t e r o f s u p p l i e d Lavalier microphone to the connecting jack of transmitter (Shown as below) Set the transmitter work state in wireless lavalier system. - Page 6 13-15 300mA/500mA 185MM X 145MM X 43MM 238MM X 50MM X 50MM 250MM X 51MM X 51MM 100MM X 65MM X 30MM...
- Page 7 FCC warning statement This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1)this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. This device operates on a no‐protection, no‐interference basis. Should the user seek to obtain protection from other radio services operating in the same TV bands, a radio license is required. For further details, consult Innovation, Science and Economic Development Canada’s document Client Procedures Circular CPC‐2‐1‐28, Voluntary Licensing of License‐Exempt Low‐Power Radio Apparatus in the TV Bands. ...
