Summary of Contents for BABI SMART CUSHION
- Page 1 BABI SMART CUSHION User Manual...
- Page 2 BABI Smart Cushion Instruction manual BABI Smart Cushion can be used with or without a Mobile Phone App. Using it with the mobile phone App, the mobile phone is the primary alarm source. Without the App, one of the accessory devices is required to be the primary alarm source.
- Page 3 Technical Specifications: Product Name Babi Smart Cushion Product Code BSC1001 Dimension 202 * 218.5 * 13mm Operating temperature -20°C to +60°C Rated Voltage DC 3V Rated Power ≤50mW Communication Technology Bluetooth Low Energy Input Power Primary 3V CR2450 battery (Replaceable) (Not rechargeable) Android 6.0 or higher...

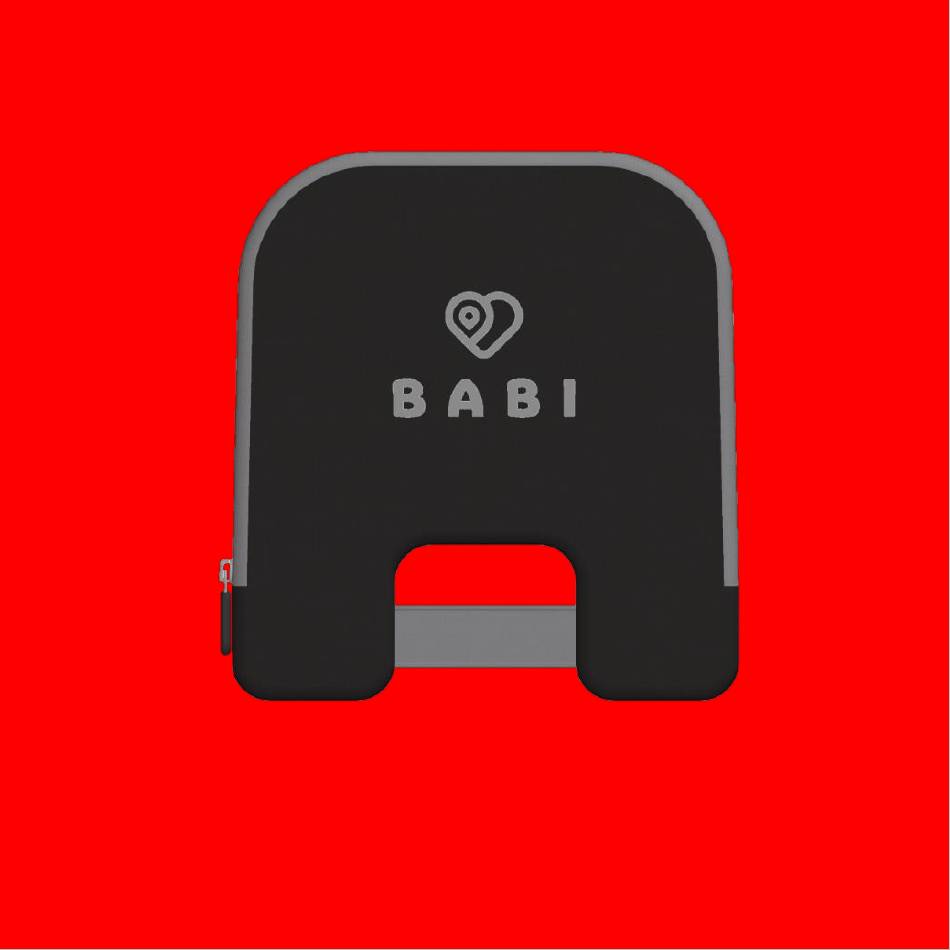

- Page 4 To setup the BABI Smart Cushion Remove the BABI Smart Cushion from the product box. Feed the baby car seat belt socket through the slot hole of the Smart Cushion, then place the cushion onto the base of the baby car seat. Make sure that the BABI Logo on the Cushion is facing upwards.
- Page 5 Once inserted the infants photo and name are displayed as below. Connect App and Cushion Press on the BABI Logo on the BABI Smart Cushion as shown in the picture here to the right, and wait for the smart cushion to sound a single beep tone.
- Page 6 Press the connect bar in the App as shown below. This will connect the smart cushion to the App. When the App is connected and paired with the smart cushion there will be a longer beep sound to confirm the connection. The infant’s photo and name will be displayed along with a battery charge level indicator for the connected cushion.
- Page 7 To Add Associated Users Once the Smart cushion is connected to the App, the main user can add associated users as follows (1) Both Main User and Secondary User should press QR CONN; (2) Secondary User should press SHOW MY QR CODE, this will display the device’s unique QR Code;...
- Page 8 When the infant is removed from the baby car seat, the smart cushion will switch itself off and will only switch itself back on again when an infant is once again placed on the baby car seat.
- Page 9 The associated users can open the map to view the exact location where the infant - If BABI smart seat pad cannot connect has been left unattended. Then they can contact the other users to proceed with...
- Page 10 Using BABI Accessory Devices BABI Smart Cushion has two accessory products that can either be used together WITH the mobile phone App. OR the two devices can use be used with the Smart Cushion WITHOUT the mobile phone App. BABI SAFE A Preemptive in car alarm device that plugs in to the 12 Volt cigarette lighter socket.
- Page 11 6 Options to use BABI Products USE WITH THE MOBILE PHONE APP USE WITHOUT THE MOBILE PHONE APP...
- Page 12 Product maintenance The outer cushion cloth cover is water resistant, it is removable and washable according to the instruction on the inner label. Before washing the cushion cloth, open the zip, take out the inner part and store in a clean and dry place.
- Page 13 4 & 5 Warranty The product is guaranteed against any non-conformity defect within normal operational conditions of use, as provided by the instructions for use. The warranty shall not therefore apply in the case of damages caused by improper use, wear or accidental damage events. (Note: The battery is not included in the warranty as it is a consumable and is to be replaced as required.) For the duration of warranty on conformity defects please refer to the...
- Page 14 Do not use the device with other non approved accessories. Do not use the product without the cushion cover. Do not emerge the inner part of the smart cushion in water, the inner part must be removed before the cushion cover is washed.
- Page 15 BABI Ltd, the supplier of this product is a Hong Kong registered company. BABI Ltd declares that the BABI Smart Cushion and it’s related APP comply to all criteria and specifications to the Italian Law 117 & Decree no 122. All relative documents are available upon request.
- Page 16 Made in PRC by BABI Ltd Hong Kong...
- Page 17 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
- Page 18 ISED Statement ‐ English: This device complies with Industry Canada license ‐ exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device.
