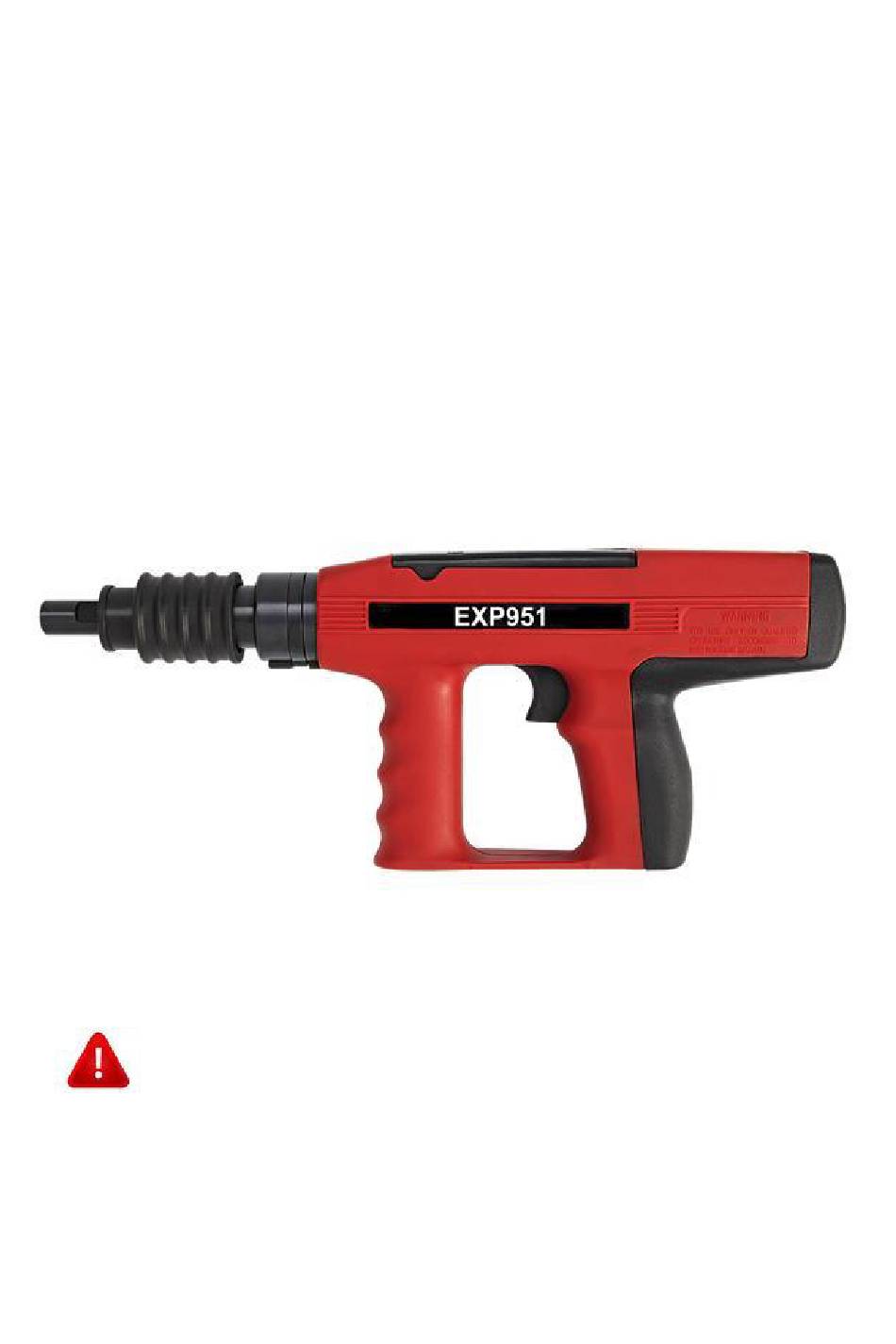

- Page 1 EXP951 SEMIAUTOMATIC POWDER ACTUATED TOOL WITH POWER GRADINGAND SILENCER OPERATORS MANUAL WARNING! SEVERE INJURY CAN RESULT FROM FAILURE TOOBEY ALL INSTRUCTIONS IN THIS MANUAL...
-
Page 3: Operating Precautions
OPERATING PRECAUTIONS Failure to follow these precautions may result in severe injury. 1. Safety first, never point the tool at anyone. 2. Never cock the tool against hands. 3. Always unload tool prior to any disassembly, cleaning, work breaks or storage. - Page 4 Ⅰ、EXP951 DESCRIPTION EXP951 Tool is a powder actuated tool that uses .27 caliber, 10-shot strip loads. There are three key features in the tool. One is infinite regulation of the driving power between limits. Another is the cartridges advanced to the chamber automatically.
- Page 5 If the fastener cracks or shatters, the If the fastener makes a small Indentation material is too brittle. into the material, the material is suitable for fastening.
-
Page 6: Safety Instructions
Ⅲ、LOAD SELECTION 1. Only 6.8/11M red and black cartridges are required for 950. 2. In general, the red cartridge covers 90% of all applications. The black cartridge is needed for the special fastening of steel to steel. Failure to select the corect power level to be used could make a poor quality fastening POWER REGULATION LOAD COLOR POWER LEVEL... - Page 7 Ⅵ、OPERATION 1.Grasp barrel assembly and slide forward rapidly until it stops. Push barrel assembly back into tool to the closed position. This sets piston into firing position. 2.Insert power fastener into muzzle of tool, head end first. Push the fastener until point is even with end of tool.
- Page 8 5 .Place the muzzle of tool perpendicular to work suface without tilting the tool.Push tool against work surface until sliding action of barrel stops. 6. Grasp muzzle cap and slide barrel forward rapidly until it stops. Push barrel assembly back into tool to the closed position . This advances the power load strip and resets the piston for the next fastening.
- Page 9 Ⅶ、TOOL DISASSEMBLY WARNING: Always unload a power actuated tool before disassembling, replacing barrel, cleaning, or assembling. A. REMOVNG BARREL ASSENBLY Using screwdriver, lift end of annular spring and rotate spring until stop is uncovered (see Figure l). Annular Spring Stop Figure 1 —...
- Page 10 Ⅷ、EXP951 PARTS SCHEMATIC & LISTING Key NO. Part NO. Description Key NO. Part NO. Description 901011 Housing Assembly 456048 Bolt 450108 O Ring 901700 Rubber Pad Assembly 901800 Silencer Assembly 903600 Rear Pad & Power Indicator Assembly 901010 Pawl Assembly...
- Page 11 Key NO. Part NO. Description Key NO. Part NO. Description 901107 Spring, Pin Connector 901205-2 Piston Assembly (flat head) 901219 Piston Assembly (recessed head) 902403 Spring, Sear Holder 452220 Piston Ring 454037 Spring , Firing Pin 902310 Guide Assembly 454100 Firing Pin Assembly 901210 Plastic Buffer...
-
Page 12: Cleaning And Maintenance
IX、CLEANING & MAINTENANCE A、CLEANING & MAINTENANCE The parts shown below should be cleaned each day, the housing each week. Please use a brush & cleaning oil to remove heavy build up. If oil is used, be sure to wipe parts dry to minimize new residue build-up. (1).
