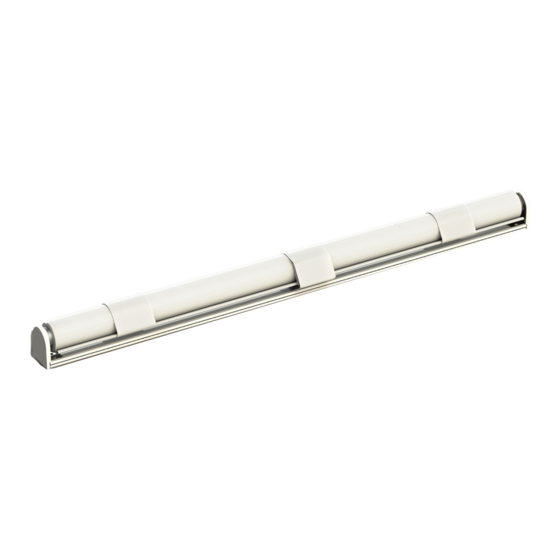

Markisol iFit Spring Roller Shade Installation Manual

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

Spring Roller Shade

Installation Guide

For more informa�on contact support@markisolUSA.com

Tools Required

Power drill and 3/32" drill bit, screwdriver or bits with

phillips heads, level, metal tape measure,

a pencil and note pad

Installation Positions

Inside Mount

Outside Mount

Table of Contents

Need help?

Do you have a question about the iFit Spring Roller Shade and is the answer not in the manual?

Questions and answers

Summary of Contents for Markisol iFit Spring Roller Shade

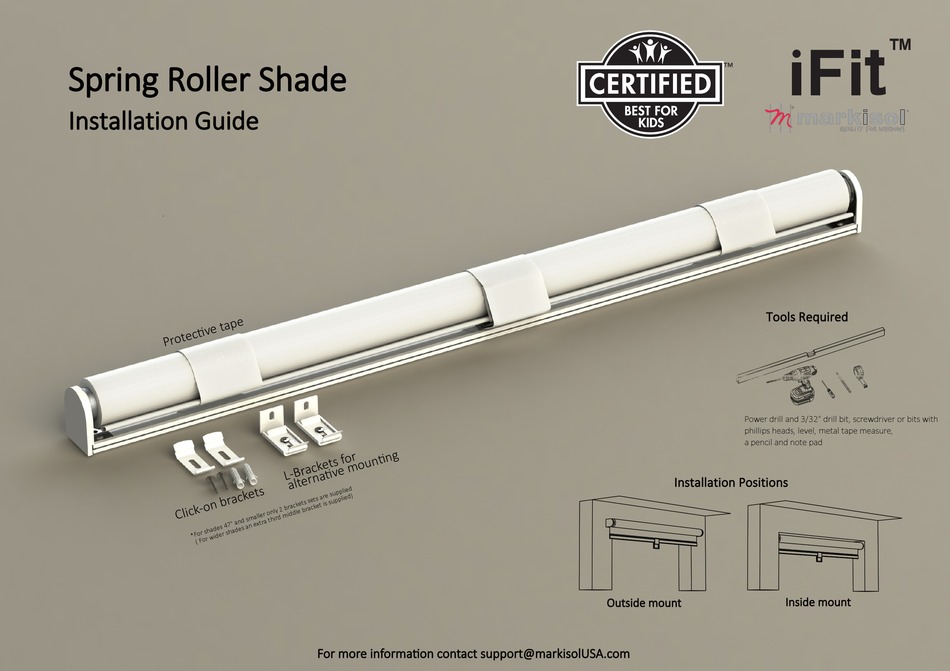

Page 1 Spring Roller Shade Installation Guide Tools Required Power drill and 3/32" drill bit, screwdriver or bits with phillips heads, level, metal tape measure, a pencil and note pad Installation Positions Inside mount Outside mount For more informa�on contact support@markisolUSA.com...
Page 2 Spring Roller Shade Installation Guide - Measurement instruc�ons Inside mount Outside mount Measure the opening width at top (A): Measure the width from edge to edge of window molding (A): Inside mount Measure the window opening width at the top rounded down to the closest 0.5". The depth of the window frame must be at least 1.5"...
Page 3 Spring Roller Shade Installation Guide - Installa�on posi�ons Inside mount Outside mount Inside mount using L-bracket Inside mount Outside mount For more informa�on contact support@markisolUSA.com...
Page 4 Spring Roller Shade Installation Guide - Inside mount With a pencil, mark the posi�on of the brackets Drill moun�ng holes using a 3/32" drill bit. A�ach brackets with the provided screws using a approx. 4" from the inside edges. Use the level to assure that brackets are level across.
Page 5 Spring Roller Shade Installation Guide - Inside mount Carefully remove the protec�ve tape from the shade. For more informa�on contact support@markisolUSA.com...
Page 6 Spring Roller Shade Installation Guide - Outside mount With a pencil, check and mark the position of Pre-drill holes for screws. Using a Phillips head screwdriver, fix the the brackets, including fixing positions. Mark posi�on of the brackets approx. 4" from brackets using the screws provided.
Page 7 Spring Roller Shade Installation Guide - Outside mount Carefully remove the protec�ve tape from the shade. For more informa�on contact support@markisolUSA.com...
Page 8 Spring Roller Shade Installation Guide - Adjus�ng the Shade (op�onal) The stop posi�on can be adjusted to your individual preference. To adjust the shade, ﬁrst remove the plas�c cover from the le� bracket, then follow the steps shown below. Option 1: The roller shade is stopping too low Hold the left part of the shade with one hand and li�...
