Thank you for purchasing an AV Foundry VideoForge Digital Video Generator. In your package with the
VideoForge, you will find the following accessories:
- HDMI cable
- USB-A to USB-Mini Cable
- Power Supply
The power supply is a "universal" design, which transforms mains supply voltages used throughout the
world.
The software needed to support the VideoForge is available from the AV Foundry web site:
www.avfoundry.com
Download and install the AV Foundry Tools package, which includes a detailed VideoForge User Guide.
To connect and use your VideoForge:
1. Power on the VideoForge.
2. Connect the VideoForge to a USB port on your PC via the supplied USB cable.
3. When Windows prompts you to install a driver, choose "Install from Specific Location" and
browse to the directory on your hard drive where you installed the VideoForge software kit.
4. When the driver is successfully installed, you can verify correct operation of the VideoForge by
browsing to its administrative interface with a web browser. The default IP address of the
VideoForge is 172.24.24.20.
Corporate: +1 206 420 7514 | Tech Support: +1 206 457 8949

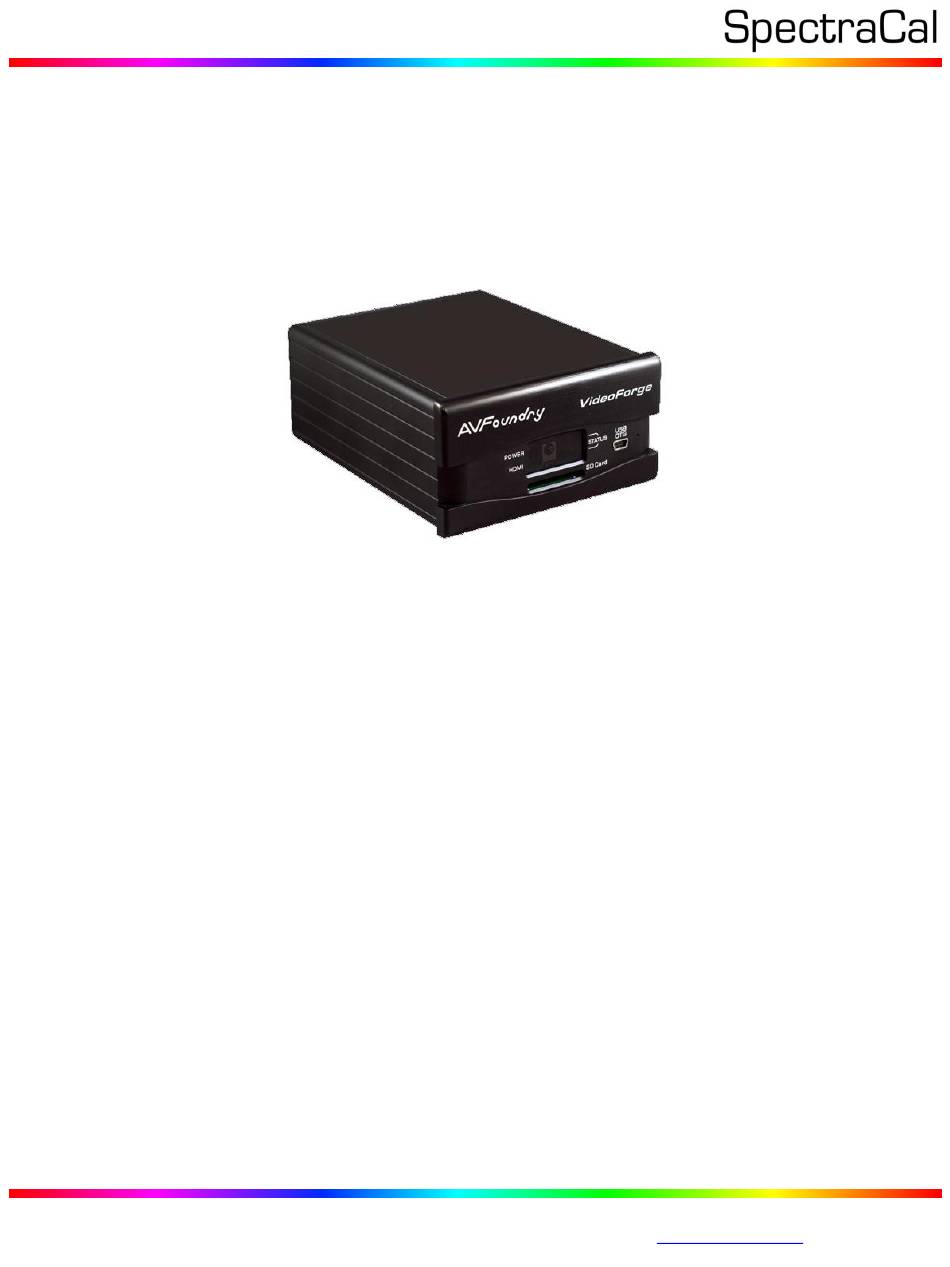

AV Foundry VideoForge
Digital Video Generator
Quick Start Guide
17544 Midvale Ave. N. Ste 100, Shoreline, WA 98133 USA
|
www.spectracal.com
Advertisement
Table of Contents
Summary of Contents for AV Foundry VideoForge Classic
- Page 1 AV Foundry VideoForge Digital Video Generator Quick Start Guide Thank you for purchasing an AV Foundry VideoForge Digital Video Generator. In your package with the VideoForge, you will find the following accessories: - HDMI cable - USB-A to USB-Mini Cable - Power Supply The power supply is a “universal”...
- Page 2 5. To show patterns on a video display, connect the HDMI port on the VideoForge to an HDMI input on the display, using the supplied HDMI cable. VideoForge Manual Control To manually control the VideoForge, including its output signal resolution and test pattern: 1.
- Page 3 Digital Video Generator CalMAN Setup Guide The AV Foundry VideoForge Digital Video Generator provides HDMI/DVI video signals for testing, calibrating and servicing video displays, including 3D stereoscopic displays. Provides a full range of resolution formats, plus configurable internal test patterns and custom user patterns and images.
- Page 4 CalMAN Source Settings Options Triplet Support The VideoForge provides full RGB triplet support to provide test patterns that are compatible with 3D cube LUT calibration. Window Size Window 2% Window 5% Window 10% Window 18% (default) ...
