2.50 SE

Automotive Lift date: 12-1998

Manual date: 06.12.1998

Version: electronic

Operating Instruction and Documentation

Serial-number:........................................................

Retailer address /Phone

Nußbaum Hebetechnik GmbH & Co.KG//Korker Strasse 24//D-77694 Kehl-Bodersweier//Tel:

+49(0)7853/8990 Fax: +49 (0) 78 53 / 87 87//E-mail: info@nussbaum-lifts.de//http://www.nussbaum-lifts.de

Table of Contents

Need help?

Do you have a question about the 2.50 SE and is the answer not in the manual?

Questions and answers

Summary of Contents for Nubbaum Hebetechnik 2.50 SE

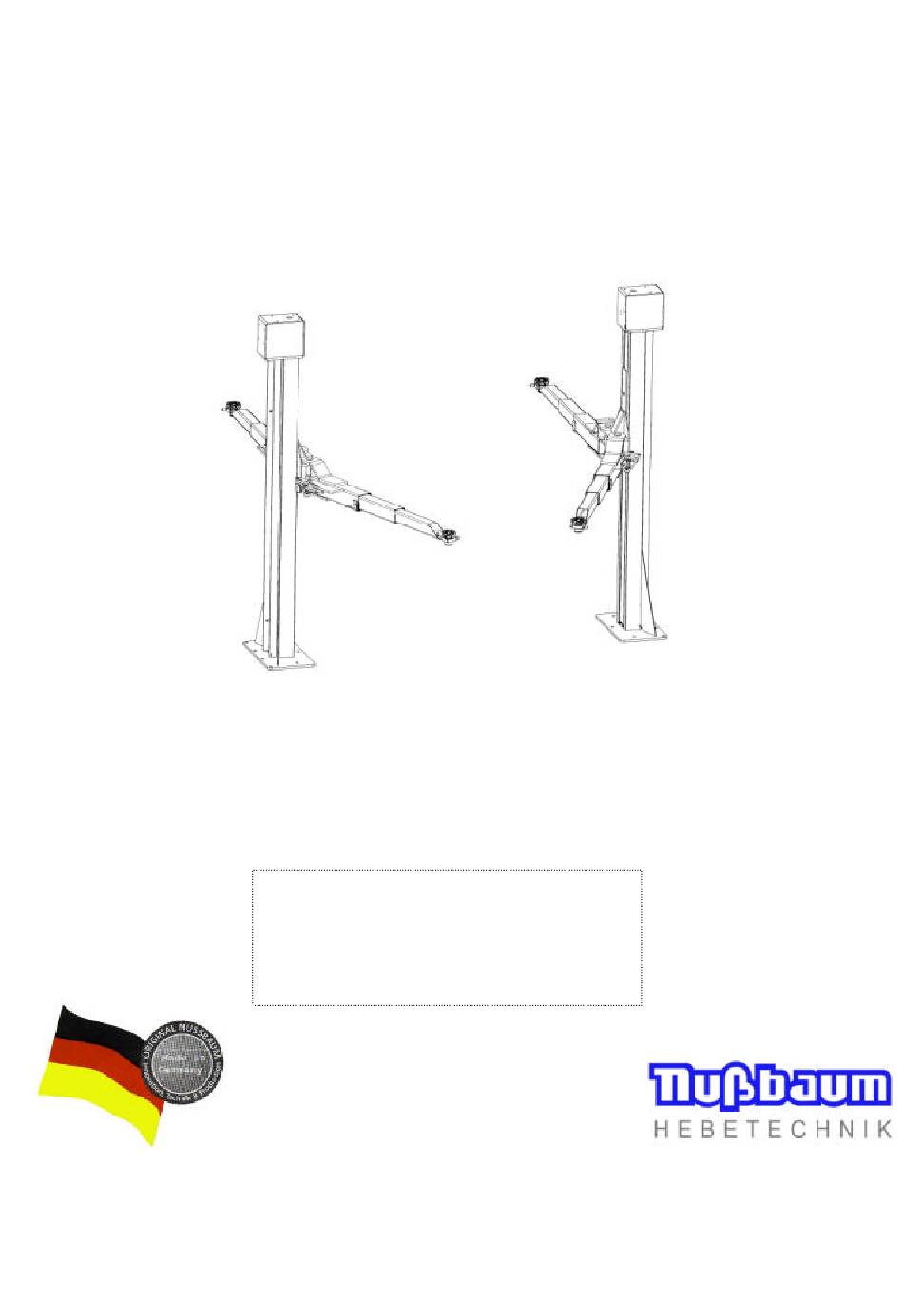

Page 1 2.50 SE Automotive Lift date: 12-1998 Manual date: 06.12.1998 Version: electronic Operating Instruction and Documentation Serial-number:............Retailer address /Phone Nußbaum Hebetechnik GmbH & Co.KG//Korker Strasse 24//D-77694 Kehl-Bodersweier//Tel: +49(0)7853/8990 Fax: +49 (0) 78 53 / 87 87//E-mail: info@nussbaum-lifts.de//http://www.nussbaum-lifts.de...
Page 2: Table Of Contents
Operating Instruction and Documentation 2.50 SE Table of contents Foreword..............................1. Introduction............................. 2. Master document of the lift........................2.1 Manufacturer ........................... 2.2 Application............................2.3 Changes of construction........................2.4 Changing of the installation place ....................2.5 CE-certificate/attestation of conformity..................3. Technical Information..........................
Page 3: Foreword
Operating Instruction and Documentation 2.50 SE Foreword Nussbaum-Lifts are a result of long-standing experiences. The high quality and the superior concept guarantee them reliability, a long lift time and the economic business. To avoid unnecessary damages and dangers, read the operating instruction attentive and observe the contents.
Page 4 Operating Instruction and Documentation 2.50 SE Organising requirements The instructions for use are constantly to be kept at the place of operation being at hand at any time. In addition to the instructions for use rules pertaining to other regulations i.e. accident prevention and environmental rules are to be observed and directed.
Page 5 Otto Nussbaum Hebetechnik GmbH & Co.KG Korker Strasse 24 77694 Kehl-Bodersweier Germany Record of installation The automotive lift 2.50 SE with the serial number:..........was installed on:..........at the firm:..........at:..............the safety was checked and the lift was started.
Page 6 Operating Instruction and Documentation 2.50 SE Record of handing over The automotive lift 2.50 SE with the serial number:..........was installed on:..........at the firm:..........at:..............the safety was checked and the lift was started. The persons below were introduced after the installation of the automotive lift. The introduction was carried out from an erector of the lift-manufacturer or from a franchised dealer (competent person).
Page 7: Introduction
1. Introduction The document ”Operating Instructions and Documentation” contains important information about installation, operation and maintenance of the 2.50 SE/T/MB. To furnish proof of installation of the automotive lift the form ”Record of Installation” must be signed and returned to the manufacturer.
Page 8: Master Document Of The Lift
Germany 2.2 Application The automotive lift 2.50 SE is a lifting stage for lifting and repairing vehicles with a laden weight of 5000 kg . The max. load distribution is 3:2 in or against the drive-on direction. It is not allowed to put the load on one or two carrying arms.
Page 9: Ce-Certificate/Attestation Of Conformity
Operating Instruction and Documentation 2.50 SE 2.5 CE-Certificate/attestation of conformity The automotive lift 2.50 SE with the serial number............... Is in accordance with the tested lift (CE-certificate-number 04-205-1381/95) ....................... place, date company stamp, signature - 9 -...
Page 10: Technical Information
Operating Instruction and Documentation 2.50 SE 3. Technical Information 3.1 Technical ratings Lifting capacity 5000 kg Load of one carrying arm max. 1500 kg (It is not allowed to put the load on one or two carrying arms.) Lifting time appr.
Page 11 Operating Instruction and Documentation 2.50 SE 3.3 Data sheet - 11 -...
Page 12 Operating Instruction and Documentation 2.50 SE 3.4 Foundation diagram - 12 -...
Page 13 Operating Instruction and Documentation 2.50 SE Block foundation Quality of the concrete min. B25 An even installation place has to be provided. The foundation must be based in a frost resistance depth Both outside and indoors, where you must reckon with frost.
Page 14 Operating Instruction and Documentation 2.50 SE 3.5 Electric diagram - 14 -...
Page 15 Operating Instruction and Documentation 2.50 SE Electrical parts list F01: Thermoswitch in the motor F02: Thermoswitch in the motor up contactor up contactor Motor 400V, 2,2 kW master side Motor 400V, 2,2 kW opposite side reversing switch socket (MB-Version, optional)
Page 16: Safety Regulations
• The laden weight of the lifted vehicle mustn’t be more than 5000 kg for automotive lift 2.50 SE, the lifting capacity of one carrying arm mustn’t be more than 1500 kg. It is not allowed to load only one of the carrying arms.
Page 17: Synchronism Of The Automotive Lift
Operating Instruction and Documentation 2.50 SE • Position the adjustable pads under the vehicle which are described by the vehicle manufacturer. • Control the dangerous places of the lift and be sure that there are no objects or people in the immediate area of the lift or on the lift.
Page 18: Led Display Visibly At The Operating Unit
Operating Instruction and Documentation 2.50 SE 5.5 LED - (display visibly) at the operating unit A position measure system observe the lifting and lowering process. Additional the functions are made by a visibly display. Find the explanations following: Operating unit at the column If following LED s are lighten, means this: Senken –...
Page 19 Operating Instruction and Documentation 2.50 SE - 19 -...
Page 20 Operating Instruction and Documentation 2.50 SE 6. Troubleshooting If the lift does not work properly, the reason for this might be quite simple. Please check the lift for the potential reasons mentioned on the following pages. If the cause of trouble cannot be found, please call the technical service of the dealer.
Page 21 Operating Instruction and Documentation 2.50 SE 6.2 Driving onto an obstacle If the lifting arm or the lifting carriage is driven on a obstacle, the motor from this side locked. The lift switched off if the lifting carriage are not more in the regulation range (approx.
Page 22 Operating Instruction and Documentation 2.50 SE 6.5 Adjusting of the top limit switch and the bottom limit switch The operating unit of the lift is equipped with potentiometer. One is for the top limit switch and one is for the bottom limit switch. The Potentiometer may from safety reasons being only adjusted by trained person.
Page 23: Maintenance
Operating Instruction and Documentation 2.50 SE 6.6 Check the carrying nut system • carrying nut (optical wearing device). To check the carrying nut, take off the covering of the spindle (pic.3,pos.b). There is a pin built in the carrying plate (pic.10).
Page 24 Operating Instruction and Documentation 2.50 SE The nut between the column and the covering will greased with an oil can. The regular complete lubrication in the mentioned distances secures the absolutely easy operation for the lift. Do not use an biodegradable adhesive oil for greasing the spindle.
Page 25: Installation And Initiation
Operating Instruction and Documentation 2.50 SE • industrial dust of all manner • water ; also in connection with other environmental influences • aggressive deposit of all manner • constant humidity by insufficient ventilation How often must the lift be cleaned ? This is dependent on the use, of the working with the lift, of the cleanness of the workshop and location of the lift.
Page 26: Erection And Doweling Of The Lift
Operating Instruction and Documentation 2.50 SE 8.1.1 Erection and doweling of the lift It is necessary to dowel the lift. For this you need a concrete floor with a thickness of at least 250 mm and a quality of at least B25. In case of doubt a test boring has to be performed and a dowel is to set in.
Page 27 Operating Instruction and Documentation 2.50 SE Plug in the 3-wire potentiometer cable (with 2 plugs) in the head plate of the opposite side. Lay this cable over the ascending pipe and the traverse to the head plate of the opposite side. Plug in the plug in the head plate of the opposite side.
Page 28 Operating Instruction and Documentation 2.50 SE • Make a foundation in accordance with the drawing. The opening for the cable is in the base plate of the lift. • Pay attention to the cable if you mount the column. • Lay the cable before positioning of the column through the empty pipe.
Page 29: Installation The Carrying Arms
Operating Instruction and Documentation 2.50 SE 8.1.3 Installation the carrying arms • Install carrying arms and bolts top and bottom with enclosed circlips. The carrying arms must be secured at both sides, otherwise a correct connection between the lift carriage and the carrying arm can not be guaranteed.
Page 30 Operating Instruction and Documentation 2.50 SE 9. Security check The security check is necessary to guarantee the safety of the lifting during use. It has to be performed in the following cases: 1. Before the initial operation, after the first installation Use the form “First security check before initiation”...
Page 31 Operating Instruction and Documentation 2.50 SE Pic. 21: choice of the dowel length with floor pavement or tile surface Table to picture 21. Liebig-dowels Dowel-type B25/130 B25/165 B25/190 B25/240 Drilling depth Min. anchorage depth Thickness of concrete Diameter of bore...
Page 32 Operating Instruction and Documentation 2.50 SE Pic. 22: choice of the dowel length without floor pavement or tile surface Table to picture 22. Liebig-dowels Dowel-type B25/130 B25/165 Drilling depth Min. anchorage depth Thickness of concrete Diameter of bore Thickness of the lift-pieces e...
Page 33 Operating Instruction and Documentation 2.50 SE First security check before installation Filling out and leave in this manual defect veri- kind of check right missing fication remark ---------------------------------------------------------------------------------------------------------------------------------------- Type plate............c ..........Short operating instruction......... c ..........Warning designation.......... c ..........
Page 34 Operating Instruction and Documentation 2.50 SE Regular security check Filling out and leave in this manual defect veri- kind of check right missing fication remark ---------------------------------------------------------------------------------------------------------------------------------------- Type plate............c ..........Short operating instruction......... c ..........Warning designation.......... c ..........Designation lifting/lowering......
Page 35 Operating Instruction and Documentation 2.50 SE Regular security check Filling out and leave in this manual defect veri- kind of check right missing fication remark ---------------------------------------------------------------------------------------------------------------------------------------- Type plate............c ..........Short operating instruction......... c ..........Warning designation.......... c ..........Designation lifting/lowering......
Page 36 Operating Instruction and Documentation 2.50 SE Regular security check Filling out and leave in this manual defect veri- kind of check right missing fication remark ---------------------------------------------------------------------------------------------------------------------------------------- Type plate............c ..........Short operating instruction......... c ..........Warning designation.......... c ..........Designation lifting/lowering......
Page 37 Operating Instruction and Documentation 2.50 SE Regular security check Filling out and leave in this manual defect veri- kind of check right missing fication remark ---------------------------------------------------------------------------------------------------------------------------------------- Type plate............c ..........Short operating instruction......... c ..........Warning designation.......... c ..........Designation lifting/lowering......
Page 38 Operating Instruction and Documentation 2.50 SE Regular security check Filling out and leave in this manual defect veri- kind of check right missing fication remark ---------------------------------------------------------------------------------------------------------------------------------------- Type plate............c ..........Short operating instruction......... c ..........Warning designation.......... c ..........Designation lifting/lowering......
Page 39 Operating Instruction and Documentation 2.50 SE Regular security check Filling out and leave in this manual defect veri- kind of check right missing fication remark ---------------------------------------------------------------------------------------------------------------------------------------- Type plate............c ..........Short operating instruction......... c ..........Warning designation.......... c ..........Designation lifting/lowering......
Page 40 Operating Instruction and Documentation 2.50 SE Regular security check Filling out and leave in this manual defect veri- kind of check right missing fication remark ---------------------------------------------------------------------------------------------------------------------------------------- Type plate............c ..........Short operating instruction......... c ..........Warning designation.......... c ..........Designation lifting/lowering......
Page 41 Operating Instruction and Documentation 2.50 SE Extraordinary security check Filling out and leave in this manual defect veri- kind of check right missing fication remark ---------------------------------------------------------------------------------------------------------------------------------------- Type plate............c ..........Short operating instruction......... c ..........Warning designation.......... c ..........Designation lifting/lowering......
