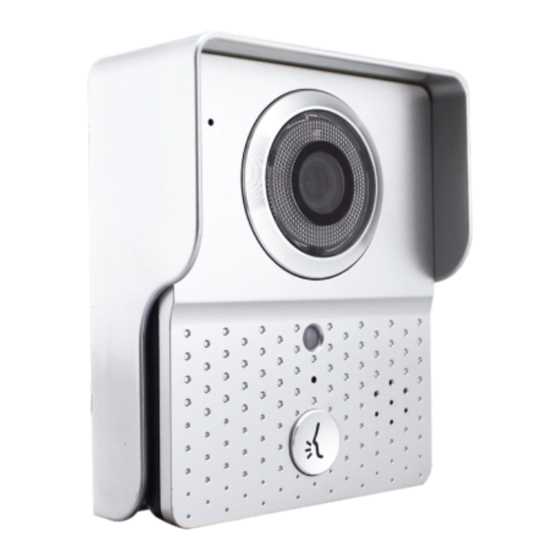

User Manual of the iVDP2 and iVDP2c
Functions:
1.Microphone
2.Camera with Night Vision &
built in Motion Detection
3.Infrared Illuminator (Night)
4.Operation Lights
5.PIR Motion Sensor
6.Status LED
7.Call Button (Back lit)
8.Speaker
9. Lock Release Connector
10. LAN RJ45Jack
11. Wifi Internal Antenna
12. Rain Cover & Sun Shield
13. * (Optional) Wireless remote Door
Bell With 40 Chime Ringtones
Internet Video Door Phone (iVDP)
For SmartPhones and Tablets
1
2
3
4
5
6
7
Smart Wifi Door Bell
www.smarthomebus.com
iSmart Group - DXBEE
12
11
Internet
10
9
8
RF
Chime
13
Advertisement
Table of Contents
Summary of Contents for Smarthome Group iVDP2
- Page 1 User Manual of the iVDP2 and iVDP2c Functions: 1.Microphone 2.Camera with Night Vision & built in Motion Detection 3.Infrared Illuminator (Night) 4.Operation Lights Internet 5.PIR Motion Sensor 6.Status LED 7.Call Button (Back lit) 8.Speaker 9. Lock Release Connector 10. LAN RJ45Jack 11.
- Page 2 How To Select Your Model? European Model fits These countries Back Boxes: Germany Latin Am Iran Scandinavia Standard European iVDP2 Model: Standard Model: SS-iVDP2-EWL comes with Wifi Door Unit (Plastic) Rain and Sun shield China Power Supply France Indonesia Screws, with Template...
-
Page 3: Table Of Contents
Table Of Contents How To Select Your Model.....................................P1 Table Of Contents........................................P2 Included............................................P3 Specs and Features.........................................P4 Additional Features and Specs.....................................P5 Installation Guide ........................................P6 How to Configure the Smart iVDP Wifi Door Bell.............................P7 a) How to Download and install the app ................................P7 WIFI Configuration ......................................P7 Adding iVDP Video Door Bell (Wifi bell)................................P8... -
Page 4: Included
Included: Model: SS-iVDP2-EWL (without RF) 1- Video Door Phone Unit (Plastic) 2- Rain and Sun Shield 3- 12VDC Power Supply Adapter 4- Set of 2 Screws and Template 5- (5-Wire) cable harness 6- User Manual Model: SS-iVDP2c-EWL (with RF) 1- Video Door Phone Unit (Plastic) -
Page 5: Specs And Features
Specs and Features: Specifications: Components Included: Camera View 1.Door (iVDP2) Unit EU. Model SS-iVDP2-EWL 2.Rain Cover/Sun Shield 1/4”/F2.4/110° Camera 3.Installation Screws & Template 110° Camera Resolution 420line,25-30FPS,640X480 4.User Manual Night Illumination 2LUX, 6pcs lnfrared light 5.Power Supply Min. Compatibility Android2+,IOS4+,wifi802+ 6.Lock Release Connector(NO/NC) -
Page 6: Additional Features And Specs
Additional Features and Specs: Wifi Compatibility: 802.11 MHZ -2.4 GHZ Camera Resolution: 640X480 CMOS Video Quality: 25-30 fps Minimum Compatible Android Phone: 2.0 Minimum Compatible IOS: iphone4 Unit is POE Compatible Minimum Internet Stream bandwidth: 218 KBS Noise Canellation: Both HW and SW IP Rating: IP 44 (industrial Standard) Certification: UL Listed P.S., CE Mark Certification,... -
Page 7: Installation Guide
Installation Guide: Microphone Rj45 Port +12V Photoresistance Alarm Infrared Light Power Socket Lock Fixed The Screw Reset Camera Lens Warning: If Using POE, PIR Sensor Do not Use Power supply Reset Switch Work Indicator LED LED Light Speaker Call Button Front View Back View Installation Steps:... -
Page 8: How To Configure The Smart Ivdp Wifi Door Bell
How to Configure the Smart iVDP WIFI Door Bell: a) How to Download and install the APP and APK: For IOS: Go to App Store and search Smart iVDP , Or Smart G4 For Android: Go to Google play and search Smart iVDP , Or Smart G4 or download from our website: www.smarthomebus.com (At this time you must be connected to Internet to continue) b) WIFI Configuration:... -
Page 9: Adding Ivdp Video Door Bell (Wifi Bell)
Adding iVDP Video Door Bell (Wifi bell) c) Add Smart iVDP WIFI Door Bell device: There are multi ways to add the iVDP device By Scan QR ; by Search; by shake or just input the Click Add Device S.ID# Device is online d) WIFI Settings (If you want to connect the device to Your Router Using Wifi): Find the Home... -
Page 10: System Settings
System Settings: e) Door Bell System Settings: Voice Prompts Enable/Disable Configuration mode ON/OFF Max Session time settings for Monitoring Remotely: The range is 10-300s Max time settings for 2 way Visitor Call: The range is 10-300s Max time settings for Ringing to wait for Answer : The range is from 10-30s f ) White List Settings (For Multi Users): Note: Only First Registered User shall be Assigned as administrator Automatically. -
Page 11: Alarm And I/O
Alarm and I/O: g) Alarm Settings: Features: 1. Enable/Disable the alarm function 2. Choose the sensor type of the detection 3. Delay time settings for the alarm. 4. Time Period to Activate Auxiliar y Sensor alarm Note: Only Advanced iVDP2c can accept additional RF sensors and controllers like Smoke, Gas, Water Leak , Shutter Relay RF Locks, RFID access and More. -
Page 12: How To Configure The Smart Ivdp Lock Control
How to Configure the Smart iVDP Lock Control: I) Door Unlock Control: You can Easiely Change the Password for unlocking the door from your phone. Use a 6 digit Pass Code that you like and remember well. Initial Passcode is: 123456 Go to Lock Settings and set a new password or change the old password for the Lock control How to use the Smart WIFI Door Bell:... -
Page 13: How To Use The Smart Wifi Door Bell
How to use the Smart WIFI Door Bell: B) Proactive Monitoring: Even if there are no videophone calls received, you can also check the nearby surroundings just by using Monitoring feature in the App C) (Loitering alert) Real-Time Alarm: If there is someone standing in front of your Smart iVDP WIFI Videophone for longer than the time that you set on your alarm settings without pressing the button. -
Page 14: D) Playback Videos And Photos
How to use the Smart WIFI Door Bell: D) Playback Videos and Photos: For Videos: Go to Video and choose the file of the device that you want to playback . E) Photos Playback : F) Check Alarm log: Go to Picture and choose the file on the device you want to playback Go to Record and choose the target device you want to check . -
Page 15: About
About: 1. Bell Ring: Select the Ring Tone you like for Visitor Call 2. Alarm Ring: Select The Ring Tone you like for Alarm Warning 3. About Software: Information about Software version installed 4. Unsubscribe: to unregister from iVDP 5. Exit Software: Close and Exit 6. - Page 16 Smart iVDP : Internet Video Door Phone Answer Visitors at Your Door from Your Mobile Phone in your Car, at your Office, or Anywhere there is Internet 3G, 4G and/or Wifi SMART INDUSTRY CORP. USA...
