HACKMOTION HM-G-2-100 Quick Start Manual

Golf Sensor HM-G-2-100
(iOS and Windows)
QUICK START GUIDE
Detailed user manual:
hackmotion.com/user-manual
Support:
support@hackmotion.com

1. General information

1
3

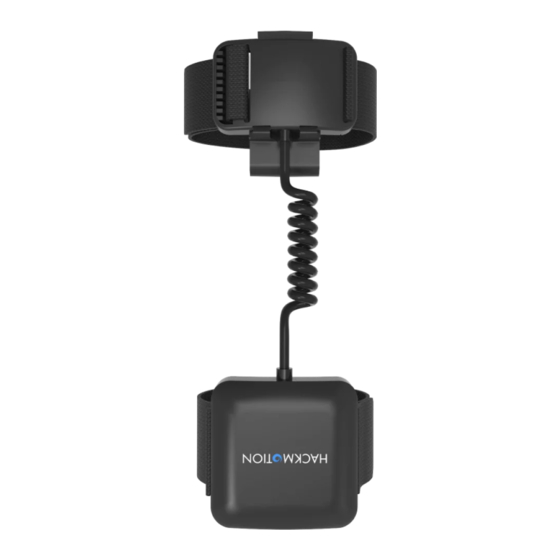

1. Wrist unit
2. Hand unit
3. Glove attachment
4
4. Power button
- press once to switch the sensor on
- press and hold (3 seconds) to switch it o
5. Micro USB socket for charging the battery
6. Charging indicator (red - charging and 'o ' when fully charged)
7. Bluetooth connection indicator (blue; 'on' when connected)
8. Power indicator (yellow)
There are two ways to wear the hand unit
A. Attaching it to glove velcro
with included clip.
Important!
2
Pay attention to correct
direction of the clip.
5 6 7 8
B. Wearing it with palm strap.
Important!
It self xates when stretched
horizontally.

2. System requirements

2.1. iOS
- Any device running iOS 11 or later.
2.2. Windows
- At least Windows 10 operating system on your PC. Bluetooth
connection (if your computer does not have a built-in Bluetooth
adapter any Bluetooth USB dongle should do the job).

3. Setting up the system

3.1. iOS
- download HackMotion app from Apple App Store.
3.2. Windows
3.2.1. Pair the sensor
- Make sure your Windows Bluetooth service is enabled.
- Switch the sensor on by pressing the power button. The yellow
LED indicator will light up.
- Pair the device with your PC in Windows Bluetooth settings (has
to be done only once – during initial setup).
Important!
Close Windows
Bluetooth settings
window after the
sensor is paired with
your computer.
3.2.2. Install HackMotion software.
- Download it from: hackmotion.com/downloads
- Launch software installer.
- Accept Windows security warning if prompted (Click 'More info'
and then 'Run') and complete the installation.
