helaform 75 Flow Installation Instructions

Cover plate set 75 Flow (curved) -installation

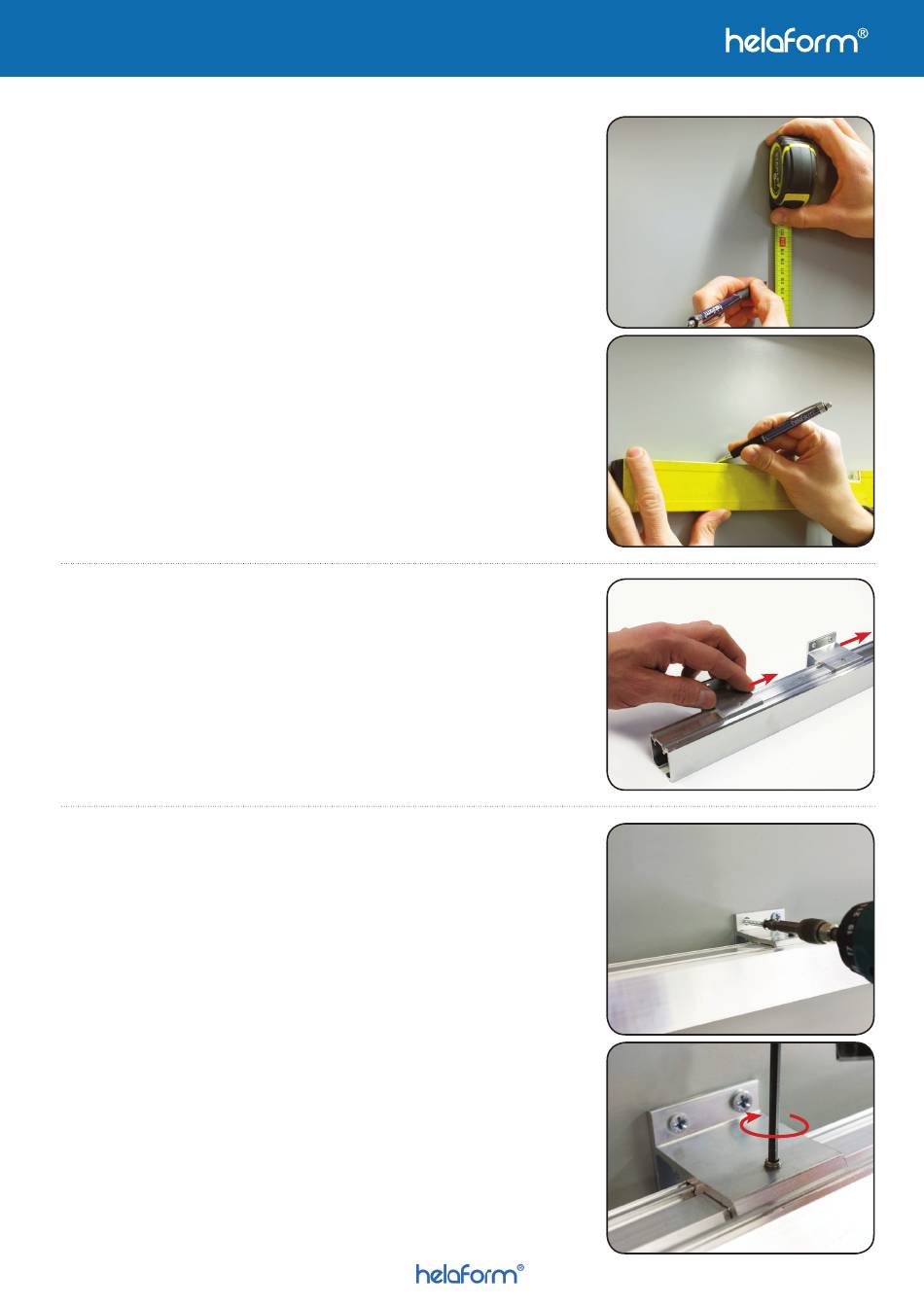

1. Measure and mark the fi xing height of the Track
The screw holes on the SKX brackets are door + 86 mm.
(For SK brackets, the installation height is a door + 88 mm).
This leaves a 9 mm gap between the fl oor and the door. NB! If the
fl oor is uneven, measure the height at the highest point of the fl oor.
After marking one point, draw a horizontal line on the wall using the
spirit level along the entire track. This is how you mark the horizontal
locations of the screws for each bracket.
With the mounting bracket bolt you can adjusts the height of the door
by approximately ± 2 mm after installation.

2. Slide the Wall brackets to the track

Slide the bracket lightly from the center so that it slides straight and
eff ortlessly along the groove. Do not use force to prevent the bracket
from "clipping".

3. Mount the Brackets and the Track to the wall

and fi nally tighten the clamping screws on the
Brackets
If you are working alone, fi rst tighten the center bracket to the wall with
one screw so you can easily support the track when mounting the
other brackets.
