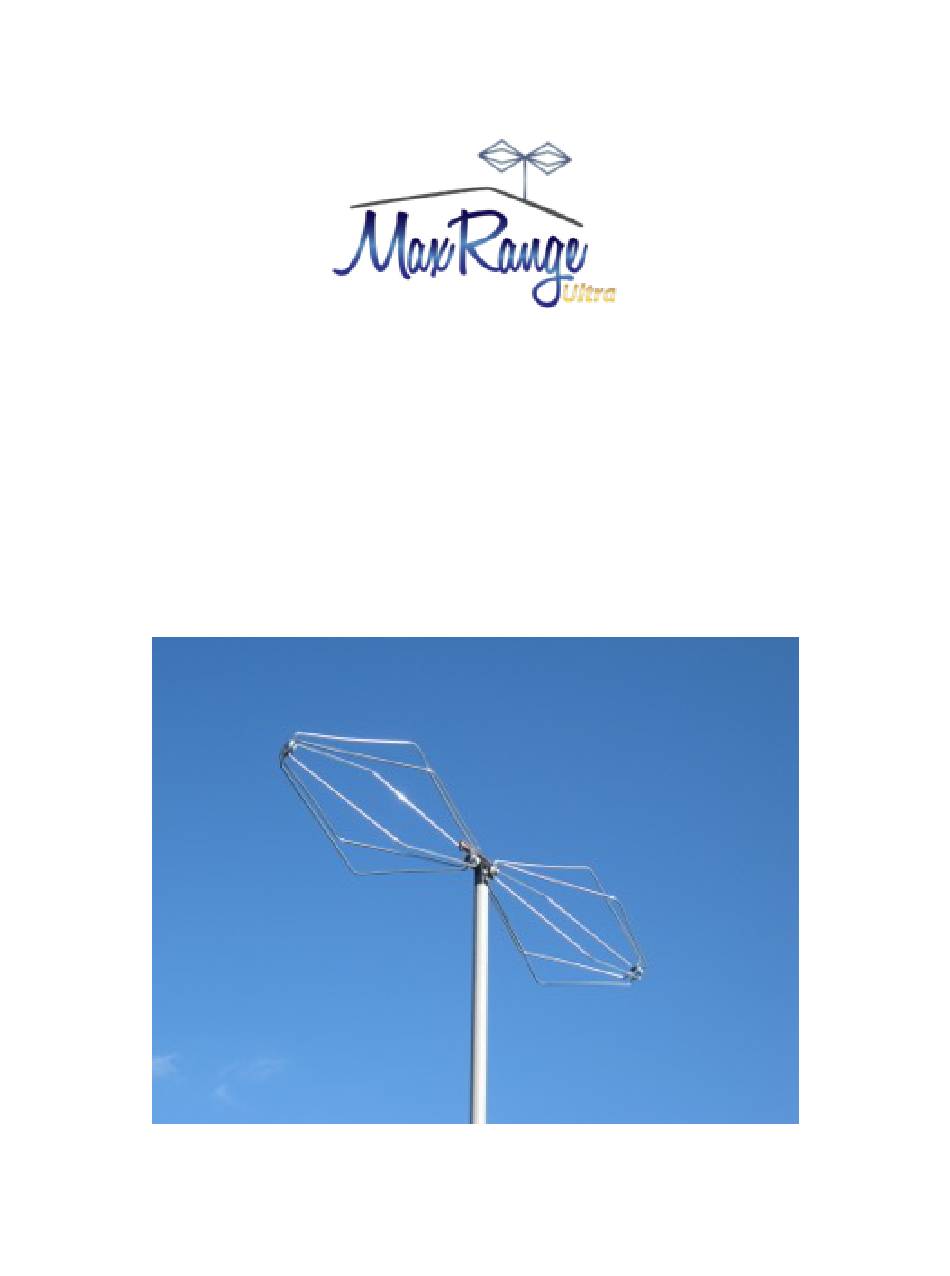

- Page 1 LIGHT BEAM ANTENNA MaxRange Antenna Series Assembly Instructions MaxRange Value Digital / High Definition Television Antennas Assembly Instructions MaxRange Value Antenna...
- Page 2 Tools you will need are: • Pliers • A Philips Screw Driver • A 3/8” Nut Wrench Philips • A 3/16” Hex Wrench Screw Driver 3/8” Nut Wrench Pliers 3/16” Hex Wrench Assembly Instructions MaxRange Value Antenna...
- Page 3 MaxRange Value Antenna Assembly Open the box and remove the antenna component bundle. Inspect for damage. Carefully remove the plastic wrap and inspect the antenna components. Antenna Element with Coupling Antenna Element Mast Stub Assembly Instructions MaxRange Value Antenna...
- Page 4 Select the Antenna Element and remove the 10-24x 1/2” screw and star washer. 10-24 Screw Star Washer Select the Antenna Element with Coupling and carefully remove the Elastic Band. Antenna Element with Elastic Coupling Band Assembly Instructions MaxRange Value Antenna...
- Page 5 10-24 Screw Antenna Element with Coupling Star Washer Antenna Element Coupling Tube Using a Phillips Screwdriver, loosen and remove the 10-24x1-1/2” screw and 10-24 anti-vibration hex-nut from the Mast Stub. 10-24 anti-vibration 10-24x1-1/2” screw hex-nut Assembly Instructions MaxRange Value Antenna...
- Page 6 Coupling with the holes in the Mast Stub. Insert the 10-24x1-1/2” screw through the Coupling and Mast Stub. Firmly tighten the 10-24 anti-vibration hex nut. Firmly tighten the hex-head screw in the Antenna Element Coupling. Assembly Instructions MaxRange Value Antenna...
- Page 7 Congratulations, you have completed the assembly of your MaxRange Value Antenna. Assembly Instructions MaxRange Value Antenna...
