Specification
KHD-R673SD1
Model
Pick up Element 1/3" SONY 960H EXview HAD CCD
Effective Picture Elements
NTSC:1020(H)×596(V) PAL:1020(H)x508(V)
(H×V)
700 TV Line
Horizontal Resolution
0.0003 Lux
Minimum Illumination
S/N Ratio More than 48dB
2:1 interface
Scanning System
Internal, Negative sync.
Synchronous System
NTSC: 1/60s~1/100,000s, PAL: 1/50s~1/100,000s
Auto Electronic Shutter
Gama Characteristic
Under 10Lux by CDS
IR Status
CDS AUTO Control
IR Power On
1Vpp, 75Ω
Video Output
Auto
Auto Gain Control
DC12V(+/-10%)/150mA
Power/Current
3.6mm Board Lens
Lens
￠119 x 56(H) mm
Dimension (mm)
Weight (g)
-30~+60℃ RH95% MAX
Storage Temperature
Operating Temperature -10~+45℃ RH95% MAX
Packing List
No
Name
1.

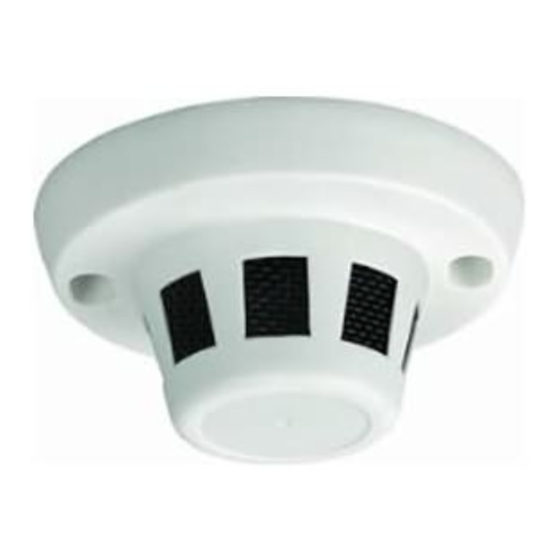

Smoke Detector Camera KHD-R673SD1
2.
KHD-R673SD1
User Guide
II
0.45
340
Franchiser：
Model Number
1
1
KHD-R673SD1 Color Camera
Smoke Detector Camera
Notes:
Before providing power for the
camera, please read this User Guide in
detail!
Do not attempt to disassemble the camera.
If the camera can not work, please contact
local franchiser or our company.
