Summary of Contents for SIMiONIC SHCB01

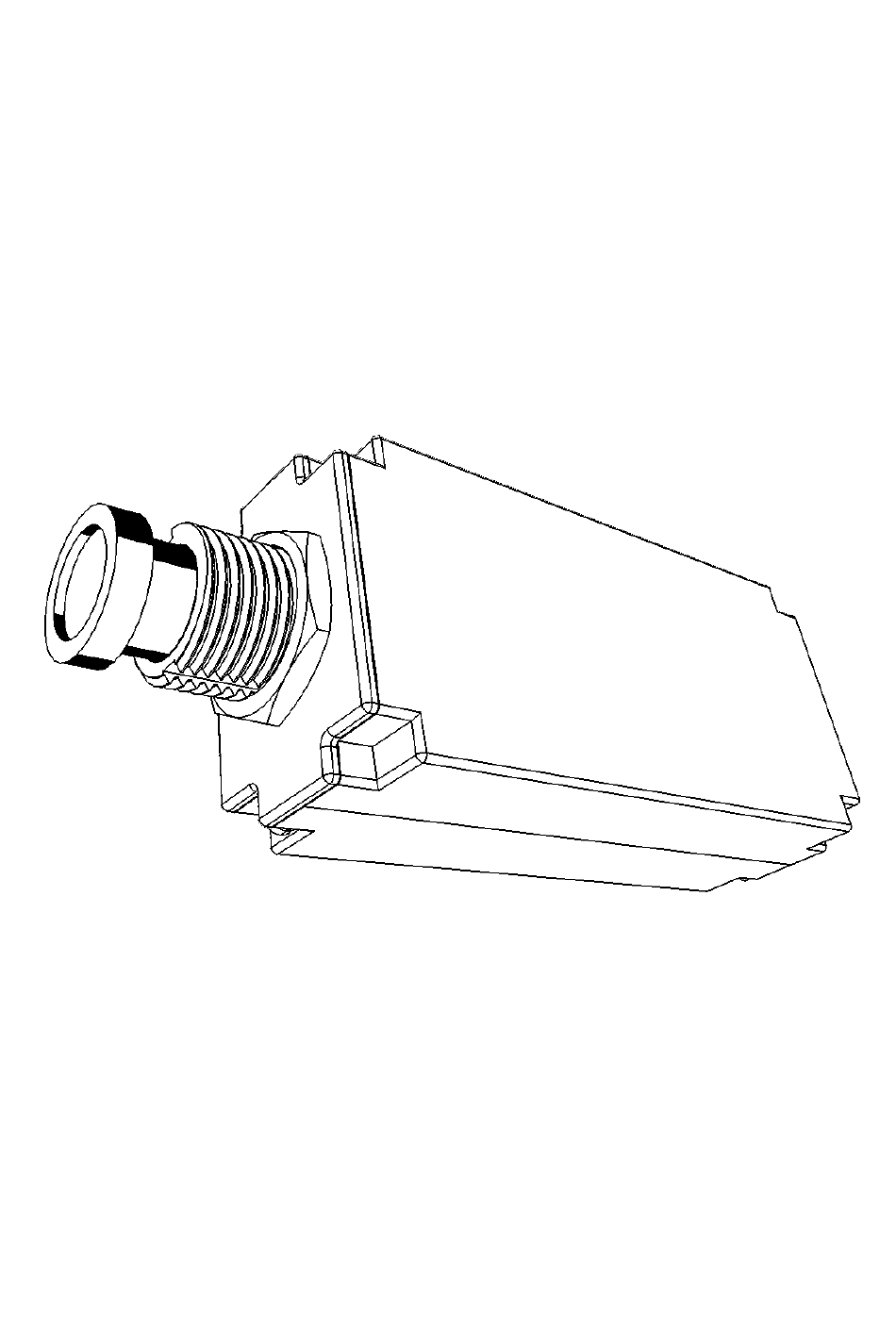

- Page 1 SHCB01 User Manual Version 1.0 OCT 8 2019 SIMiONIC...
- Page 3 SHCB01 User Manual V1.0 (http://www.simionic.net) Overview Thanks for choosing products from SIMiONIC. We strive to provide the best quality and realistic hardware for the use of building flight simulators. This manual includes the spec and usage of the simulated circuit breaker produced by SIMiONIC which is supposed to be used on flight simulators. Inside the circuit breaker is an electric magnet which is powered by 5V power source.
- Page 4 SHCB01 User Manual V1.0 (http://www.simionic.net) Dimensions Cutout Diagram...
- Page 5 Electrical profile To power the electromagnet with enough strength , it needs at least 800mA current. The resistance of the electromagnet inside SHCB01 is about 5 ohms at 15℃. A 5V power with at least 5 watt capacity will be enough to power this simulated circuit breaker to pop out. However, please keep in mind that the resistance of the coil inside the electromagnet rises with temperature. And because of the low resistance of the...
- Page 6 SHCB01 User Manual V1.0 (http://www.simionic.net) Typical power consumption 4.8V 5.0V 5.2V 5.4V 5.6V 5.8V 6.0V 15℃ 0.96A 1.00A 1.04A 1.08A 1.12A 1.16A 1.20A 25℃ 0.92A 0.96A 1.00A 1.04A 1.08A 1.12A 1.15A 35℃ 0.89A 0.93A 0.96A 1.00A 1.04A 1.07A 1.11A 45℃ 0.86A 0.89A 0.93A 0.96A 1.00A...
- Page 7 SHCB01 User Manual V1.0 (http://www.simionic.net) Limited Warranty 1. The product is covered by a 1 year limited warranty from the date of purchase, against any defects in materials or workmanship. 2. This limited warranty does not cover any damage, deterioration or malfunction resulting from any improper use. 3. We will repair the product using either new or refurbished replacement parts.
