MICROTYPE SURGICAL POWER TOOLS

System 3600

Operating manual

Table of Contents

Need help?

Do you have a question about the System 3600 and is the answer not in the manual?

Questions and answers

Angie

June 11, 2025

Can I always use the craneotome in strawberry mode? So I'm using the blade?

Summary of Contents for Bojin System 3600

Page 1 MICROTYPE SURGICAL POWER TOOLS System 3600 Operating manual...
Page 2: Table Of Contents
Index 1 Product introduction Page 3 2 Product classification Page 3 3 Labels and symbols Page 4 4 Indications for use Page 4 5 Dangers and precautions Page 4 6 Technical specification Page 5 6.1 Control unit BJ36006-V Page 5 6.2 Foot pedal BJ36012 Page 7 6.3 Micro-handpiece BJ3600...
Page 3: Product Introduction
Surgical micromotor 1. Product introduction Description The device is an electrical surgical product for a wide range of operations for neuro, column and orthopedics. Main models and components Model: BJWJZ-1 Main components: micro-handpiece, straight attachment, angled attachment, sagittal saw attachment, reciprocating saw attachment, craniotomy attachment, control unit and pedals. Furthermore, it is also possible to connect a handpiece with classical pistol grip handle (5000 series) Note: to simplify, angled and straight attacks are collectively called bur attachments...
Page 4: Labels And Symbols
Spiegazione dei simboli generali usati Attenzione Questo dispositivo contiene batterie Li-Ion Leggere le Istruzioni per l’uso fornite prima che devono essere smaltite in modo ecolo- 3 Labels and symbols di usare il dispositivo. gico. A questo dispositivo si applica la diret- Li-Ion tiva europea sulle batterie 2006/66/CE.
Page 5: Technical Specification
should be visible from attachments or cutting tools. Check the radial movement of the tips. Do not use if the radial movement is too wide. Check if the cutter is sharp, if it is not sharp enough, it must be replaced in time. b) If the bur breaks, replace it immediately.

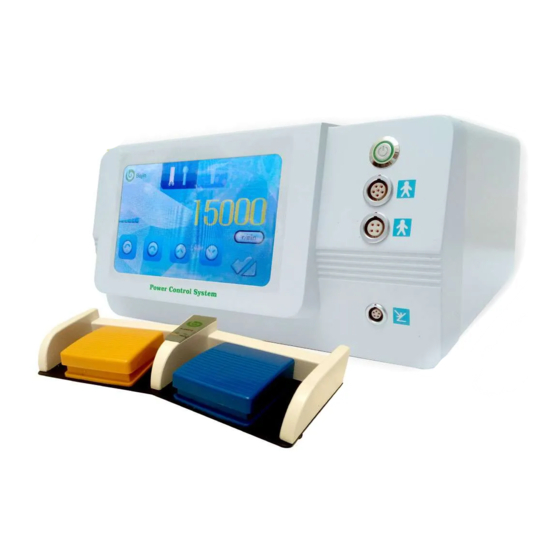

Page 6 1. Button for switching on / off 2. Connection port for micro-handpiece BJ3600 3. Connection port for BJ5000 series handgun modular gun, or dedicated handpiece for cranial drilling BJ3604 4. Connection port for BJ36012 pedal board 5. On-screen button to choose between activation by footswitch or by screen 6.
Page 7: Foot Pedal Bj36012
6.2 Foot pedal BJ36012 Image: Foot pedal BJ36012 Cable: 3 meters Water resistant IPX6 6.3 Micro-handpiece BJ3600 Input voltage: DC 12V Output power: ≥100W Noise: ＜65dB Image: Micro-handpiece BJ3600 1. Handpiece connector 2. Motor control connector 3. Handpiece 3. Cable...
Page 8: Bur Attachments
6.4 Bur attachments Speed: 1000rpm-100000rpm Error：±8% Torque: 0.10 Nm Connection type: standard round shank 2,35mm 6.5 Craniotomy attachment BJ3605 Speed: 1000rpm-100000rpm Error：±8% Torque: 0.10 Nm...
Page 9: Sagittal And Reciprocating Attachments Bj3601 - Bj3609
6.6 Sagittal and reciprocating attachments BJ3601 – BJ3609 Speed: 1000rpm-15000rpm Error：±8% Connection type for sagittal saw blades: code BJ3501 Connection type for reciprocating saw blades: code WF 6.7 Dedicated cranial perforator BJ3604 Speed: 100rpm - 1100rpm Torque: 2.24Nm Connection type for cranial drill bit: code BJP007...
Page 10: Instructions For Use
NOTE: THIS USER MANUAL WILL FOCUS ON THE USE OF THE CONTROL UNIT WITH THE BJ3600 HIGH-SPEED MICRO-HANDPIECE. FOR THE INSTRUCTIONS FOR USING THE BJ5000 SERIES, REFER TO THE MANUAL FOR USE OF THE SAME SERIES. 7 Instructions for use 1.
Page 11: Cleaning And Sterilization Procedure
8 Cleaning and sterilization procedure The devices must be cleaned and sterilized before each use. Use protective equipment every time even such operations are performed. Use a neutral pH detergent, not exceeding 10.5. Fill the sink with water and detergent, mix gently by hand. Before cleaning the device, remove all accessories, battery connections and shells.
Page 12 When sterilizing, perform the following sterilization cycle validated by Bojin to obtain optimum performance. Steam sterilization Wrapping method Cycle Minimum temperature Maximum Temperature Minimum Exposure Minimum dry time Wrapped Pre-vacuum 129°C 134°C 4 minutes 8 minutes Note: The Operator must ensure that the affected parts have been sterilized, before use.
Page 13: Fault Handling
9 Fault handling Maintenance For safety reasons, electrical microsurgery devices must be inspected once a year. For maintenance operations, please contact your dealer or contact the Bojin after-sales service directly for maintenance, performed by the instrument's experts. Removing the problem The device is equipped with short-circuit protection.
Page 14 3600 Handpieces are intended for use in the electromagnetic environment specified below. The customer or the user of the 3600 Handpieces should assure that they are used in such an environment Emissions test Complian Electromagnetic environment - guidance RF Emissions CISPR 11 Group 1 The 3600 Handpieces use RF energy only for internal functions;...
Page 15 Guidance and Manufacturer’s Declaration - Electromagnetic Immunity The 3600 Handpieces are intended for use in the electromagnetic environment specified below. The customer or the user of the 3600 Handpieces should assure that it is used in Immunity Test IEC 60601 Compliance Level Electromagnetic such an environment.
Page 16 Voltage dips, short <5% Ut (>95% dip in <5% Ut (>95% dip in Mains power quality interruptions should be that of a input lines 40% Ut (60% dip in 40% Ut (60% dip in environment. If the voltage variations for 0.5 cycle for 0.5 cycle typical commercial or IEC 61000-4-11...
Page 17 Guidance and Manufacturer’s Declaration - Electromagnetic Immunity (Continued) The 3600 Handpieces are intended for use in the electromagnetic environment specified below. The customer or the user of the 3600 Handpieces should assure that it is used in Immunity Test IEC 60601 Compliance Level Electromagnetic such an environment.
Page 18: Transport And Storage Conditions
Recommended Separation Distances Between Portable and Mobile RF Communications Equipment and the 3600 Handpieces @ 3Vrms 3600 Handpieces are intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of 3600 Handpieces can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the 3600 Separation Distance According to Frequency of Transmitter (meters)
Page 19: Manufacturing Date And Period Of Use
B) If you need technical information (such as circuit diagram, list of components, illustrations, correction details, etc.) you can request it at the Technical Assistance Center. Shanghai Bojin Electric Instrument & Device Co., Ltd. Bojin Europe srls Add: Room 606, No. 3388, Gonghexin Road, Shanghai City. China,200436 Via Ortana 20, Vitorchiano 01030 Web: http://www.bojin-medical.com...
