Summary of Contents for RazorBack Offroad IT FITS

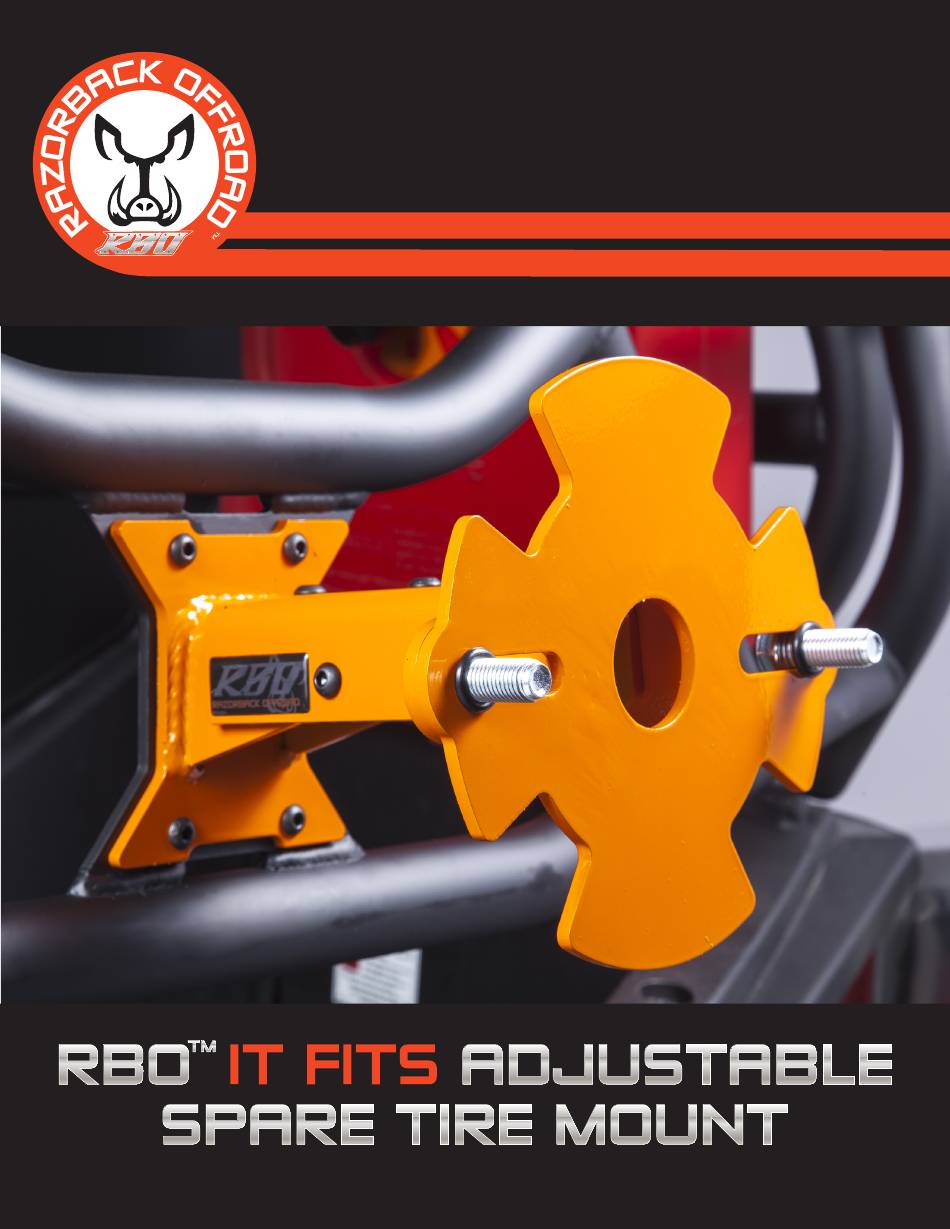

- Page 1 OPERATIONS MANUAL...
- Page 2 WARNING Read, understand, and follow all of the instructions and safety The IT Fits Spare Tire Mount is not rated for nor should be precautions in this manual and on all product labels. used as a step or hung from.
- Page 3 ™ Hello, and welcome to the world of Razorback Offroad™. Thank you for your purchase of a Razorback Offroad™ (RBO) Product. As a US-based small company, we want you to know that each order you place means a lot to us as we grow our worldwide family of RBO enthusiasts.
-
Page 4: Table Of Contents
When it comes to installation, this mount has our exclusive “It Fits ™” base plate. Just look at any of our racks and if you see the It Fits Icon you will know this mount will bolt directly onto the rack. - Page 5 RAZORBACK OFFROAD ™ INCLUDED PARTS AND HARDWARE: PARTS: “IT FITS™” Mounting Arm Base Arm for Spare Tire HARDWARE: 3/8” O Rings Nut Holders ¼” Nylock Nuts ¼ Flat Washer 10mm Studs 10mm Lug Nuts 12mm Studs ¼” x ¾” Phillips...
-
Page 6: Assembly Instructions
™ ASSEMBLY INSTRUCTIONS: The following are general instructions for assembling the RBO1018 – “IT FITS™” Adjustable Spare Tire Mount. Due to constant improvements in the design and quality of production components, some minor discrepancies may result between the actual parts and the information presented. - Page 7 (FIG. 2.0) (STEP 2.2) Once the rack’s “IT FITS™” mounting bracket and the “IT FITS™” Mounting Arm are aligned, inset a single 1.4” x 3/4” Phillips/Slotted Screw into each of the four holes on the “IT FITS™” Mounting Arm, and then secure each screw with a single 1/4”...
- Page 8 Assembly of the Base arm for Spare Tire to the “IT FITS™” Mounting Arm: (STEP 3.1) With the “IT FITS™” Mounting Arm now firmly attached to the rack, take the Base Arm for Spare Tire and place it on top of the “IT FITS™” Mounting Arm.
- Page 9 ™ (STEP 3.2) Next, measure from the outside edge of the Mounted “IT FITS™” Mounting Arm (Now attached flush to your rack). Once in place, set the distance equal to the recorded measurement that was taken on page 4 in step 1.2.
- Page 10 Tire Mount Plate align with two holes on the “IT FITS™” Mounting Arm. Once aligned inset, a single a 1/4” x 3/4” Phillips/Slotted Screw into three of the four holes on the “IT FITS™” Adjust- able Spare Tire Mount’s Arms (One on Top and two on the side).
- Page 11 RAZORBACK OFFROAD ™ STEP 4 Stud Installation: After consulting your owners guide to determine the stud size of your vehicle use the RBO provided Stud of the correct size (either 10mm or 12mm) and proceed to the assembly instructions for the specific Stud Size.
- Page 12 RAZORBACK OFFROAD ™ UTVs with a 10mm Lugs: (10mm - Step 4.A) Insert the 10mm stud into a Nut Holder. (See Figure 10mm 4.1) (FIG. 10mm 4.1) (10mm - Step 4.2) Insert both the stud and nut holder so that it rests within the slot in the inner facing of the Tire Mount Plate.
- Page 13 RAZORBACK OFFROAD ™ (STEP 4.1) With the Stud and Nut holder in place slip a single 3/8” O ring over the studs threads on the opposite side of the Tire Mount Plate and slid it down until it is touching the Tire Mount Plate. The 3/8” O ring will then hold the stud in place within the slot preventing it from falling out but still allow for the lug to be adjusted to fit multiple-Lug Hole positions.
-
Page 14: Warranty
Products Covered Except as expressly set forth in this All Products carrying the Razorback Offroad ™ (RBO) name. (All other products warranty, RBO makes no other war- purchased from other manufacturers are limited to that manufacturer’s warranty.) ranty, express or implied, and hereby... -
Page 15: Product Registration
The RBO 100% Money back tion form found on our web site at uct, must follow the following steps: guarantee pertains to any (https://razorbackoffroad.com/ Razorback Offroad ™ (RBO) 1. The Purchaser must have proof product-registration/ ) Branded product purchased of purchase of any damaged to register you’re equipment. - Page 16 PH: (208) 696-7230 FAX: (208) 580-1900 inventive edge, LLC 3190 Industrial Way, Mountain Home, ID 83647 RBO0052...
