Summary of Contents for OteCables DIVerse

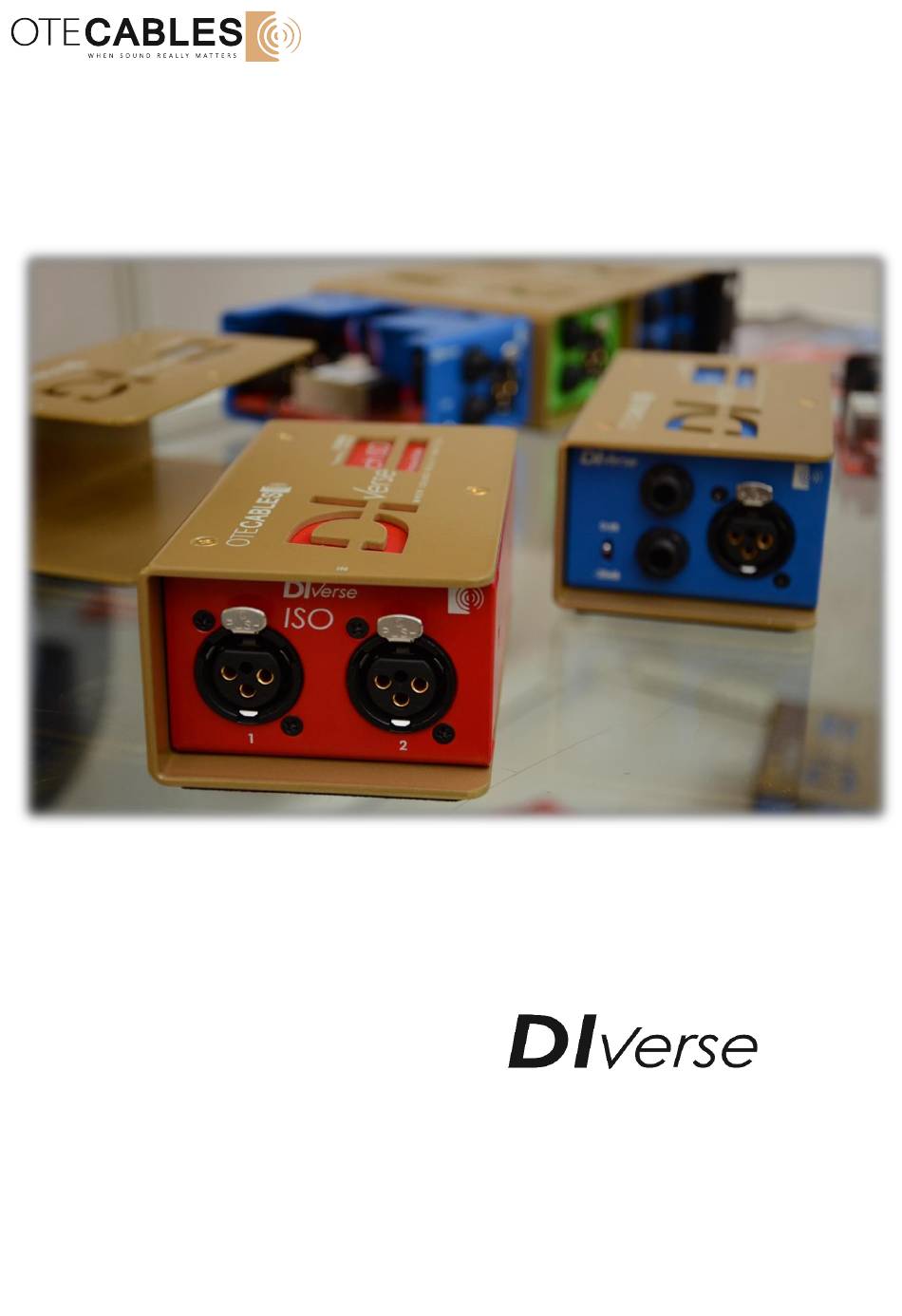

- Page 1 USER MANUAL...
- Page 2 Front Of House at a large stadium show. For these occasions the electronic unit of DIVerse products offers the possibility to internally reconfigure the circuit to provide extremely low impedance output of 150 Ohm with 2:1 conversion (thus with -6dB level correction). DI...
- Page 3 Some configurations when unbalanced TS connection to the stage amp is used along with the balanced XLR connection to the sound system can cause the degradation of the signal path resistance against the electromagnetic interference and ground loops. In case of the unwanted noise occurred, please use rather the standard Thru connector to feed your stage amp instead. www.otecables.cz...
- Page 4 Isolated Input XLR Output Double bass Mixing console Double bass pickup with high impedance instrument output. Bass amp can be connected to Thru connector on the input side (before the transformer) or optionally to Parallel output (after the transformer). www.otecables.cz...
- Page 5 Some configurations when unbalanced TS connection to the stage amp is used along with the balanced XLR connection to the sound system can cause the degradation of the signal path resistance against the electromagnetic interference and ground loops. In case of the unwanted noise occurred, please use rather the standard Thru connector to feed your stage amp instead. www.otecables.cz...
- Page 6 Input 1 Input 2 Output 2 Speaker processor Delay tower speakers Interconnecting (galvanic separation) speaker processor with Delay tower speakers. Output 1 Input 1 Input 2 Output 2 Speaker processor Active speakers Interconnecting (galvanic separation) mixing console with active speakers. www.otecables.cz...
- Page 7 User manual Output 1 Input 1 Input 2 Output 2 DJ console Active speakers Interconnecting (galvanic separation) DJ console with active PA system or speaker amps. www.otecables.cz...
- Page 8 Input connector XLR (balanced) (1 and 2 are connected in parallel) "Pad" switch -20dB Output connector TRS 6,3mm (balanced/unbalanced) Output connector XLR (balanced) (4 and 5 are connected in parallel) "Lift" switch - lifts the XLR pin-1 ground at the output www.otecables.cz...
- Page 9 Channel 2 Input/Thru connectors TRS 6,3mm (balanced/unbalanced) Channel 1 "Pad" switch -20dB Channel 2 "Pad" switch -20dB Channel 2 output connector XLR (balanced) Channel 1 output connector XLR (balanced) "Lift" switch - lifts the XLR pin-1 ground at both output www.otecables.cz...
- Page 10 "Lo" output impedance with a corresponding additional attenuation of -6dB (resulting 10:1 conversion ratio for GREEN, 2:1 for BLUE). Default settings: Verse BLUE – Hi (0dB), 1:1 ratio Verse GREEN – Lo (-6dB), 10:1 ratio 1 channel version 2 channel version www.otecables.cz...
- Page 11 Input panel Output panel Channel 1 Input connector XLR balanced Channel 2 Input connector XLR balanced Channel 2 Output connector XLR (balanced) Channel 1 Output connector XLR (balanced) "Lift" switch - lifts the XLR pin-1 ground at both output www.otecables.cz...
- Page 12 1 - Remove the three black screws (M3x5 DIN965) on the bottom side 2 - Remove the three golden screws (M3x5 DIN965) on the top side 3 – Remove the cover For assembly proceed in the opposite way. www.otecables.cz...
-
Page 13: Rack Mount Kit
1 – Mount left rack handle to the cover using M4 screws and nuts 2- Assemble 1st DI Verse and mount next cover using M4 screws 3 - Continue with others 4 – Finish mounting with right rack handle www.otecables.cz... -
Page 14: Technical Parameters
<–40° C or >+75° C Humidity To 95% at 35° C Operating Altitude To 4600 m (15,000 ft) Shock 30 g 11 msec half-sine on each of 6 sides Vibration 10 Hz – 55 Hz (0.010 m peak-to-peak excursion) www.otecables.cz... -
Page 15: Warranty Period
WARRANTY PERIOD OteSound, s.r.o. declares OTECABLES DIVerse products, if used under normal operating conditions, to be free from defects in materials and workmanship for a period of three (3) year from the date of purchase. This Manufacturer´s Warranty subjects to the online registration of purchased product within sixty (60) days of retail purchase. -
Page 16: Warranty & Service
Under the terms of this warranty, all the replaced or removed components become the property of OteSound, s.r.o. HOW TO obtain A WARRANTY SERVICE To request warranty service for OTECABLES DIVerse product, contact authorized dealer / retailer from which you purchased the product. In case direct contact with manufacturer is needed please contact us here: OteSound, s.r.o. -
Page 17: Protecting The Environment
This product is subject to the European Waste Electrical and Electronic Equipment Directive (WEEE). Do not dispose with your normal household waste. Dispose of this device through an approved waste disposal firm or through your local waste facility. When discarding the device, comply with the rules and regulations that apply in your country. www.otecables.cz...
