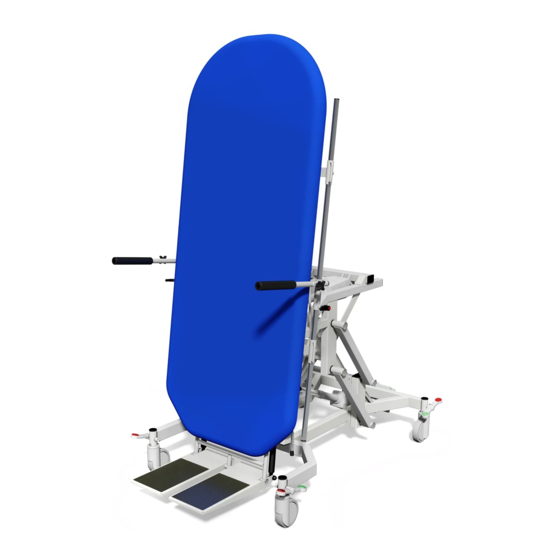

- Page 1 Bariatric Tilt Table Models: BARI1 SERVICE MANUAL...
-
Page 2: Table Of Contents
Footboard Drawing Patient Handle Drawing 6. Guarantee 7. Technical Specification 8. Revisions to Manual Plinth 2000 Ltd is an ISO Audited company to ISO9001:2008 Our products are CE marked in conformity with the EC Directive MDD 93/42/EEC P a g e... -
Page 3: Introduction
Bariatric Tilt Table Service Manual 1. Introduction Thank you for purchasing a product from Plinth 2000 Ltd. We use the highest quality components and manufacturing techniques to ensure that our products are simple to use and will last a long time. It is recommended that all users read and retain this User Manual for reference. -
Page 4: Cleaning And Decontamination
Bariatric Tilt Table Service Manual 2. Cleaning and Decontamination WARNING If contamination is suspected then decontaminate the couch before use. Torn or damaged upholstery should be replaced immediately. CAUTION Do not use Alkalis or other organic solvents for routine cleaning. Always cover the vinyl with paper towelling or couch covers if it can come into contact with bare skin. -
Page 5: Maintenance
Bariatric Tilt Table Service Manual 3. Maintenance Plinth 2000 Ltd products are designed to be maintenance free. However keeping your Plinth products clean and regularly checked will assist in prolonging their working life. The following is a guide of simple checks that the user can carry out on a six monthly basis. -
Page 6: Service Checklist
Bariatric Tilt Table Service Manual P a g e... -
Page 7: Troubleshooting
Bariatric Tilt Table Service Manual 4. Troubleshooting In the unlikely event of the couch failing to operate and having carried out the normal practical fault finding steps below then please contact our Customer Service Team on +44 (0)1449 767887 or email customerservice@plinth2000.com. Please have the serial number to hand before making contact so we can help you more efficiently. -
Page 8: Parts Lists And Diagrams
Bariatric Tilt Table Service Manual 5. Parts Lists and Diagrams P a g e... -
Page 9: Exploded Diagram
Bariatric Tilt Table Service Manual P a g e... -
Page 10: Base Drawing
Bariatric Tilt Table Service Manual 10 | P a g e... -
Page 11: Lift Lever Drawing
Bariatric Tilt Table Service Manual 11 | P a g e... -
Page 12: Link Lever Drawing
Bariatric Tilt Table Service Manual 12 | P a g e... -
Page 13: Middle Drawing
Bariatric Tilt Table Service Manual 13 | P a g e... -
Page 14: Top Drawing
Bariatric Tilt Table Service Manual 14 | P a g e... -
Page 15: Footboard Drawing
Bariatric Tilt Table Service Manual 15 | P a g e... -
Page 16: Patient Handle Drawing
Bariatric Tilt Table Service Manual 16 | P a g e... -
Page 17: Guarantee
Bariatric Tilt Table Service Manual 6. Guarantee and Service (UK only) Plinth 2000 Ltd offer a 5 year parts guarantee on all BARI Range products delivered from January 2013 and a lifetime frame guarantee. The only exclusion to this guarantee is for negligent damage or damage to upholstery coverings. This... -
Page 18: Technical Specification
Bariatric Tilt Table Service Manual 7. Technical Specifications BARI1 Top Length (cm) Top Width (cm) Overall Width (cm) Overall Length (cm) Height Range (cm) 48-97 Max Working Load 320kg Control Hand Switch Electrical Data 220/240v Motor(s) Linak LA34 x 3... -
Page 19: Revisions To Manual
Plinth 2000 Ltd Wetheringsett Manor Wetheringsett Stowmarket Suffolk IP14 5PP ENGLAND Plinth 2000 Ltd is an ISO Audited company to ISO9001:2008 Our products are CE marked in conformity with the EC Directive MDD 93/42/EEC 19 | P a g e...
