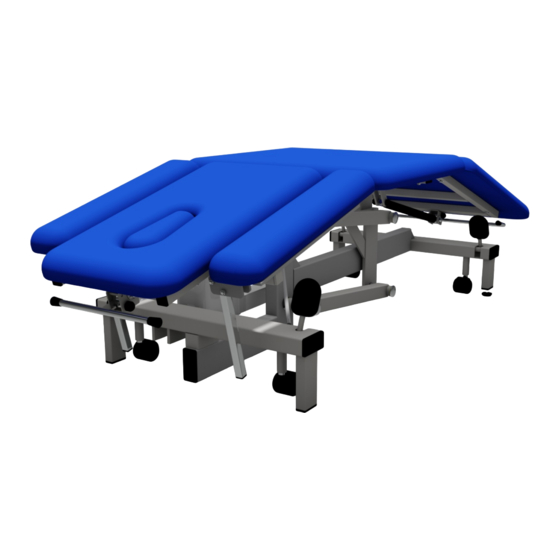

- Page 1 Model 504 5-section Couch Models: 504E & 504H SERVICE MANUAL...
-
Page 2: Table Of Contents
Head-Rest Drawing Arm-Rest Drawing 6. Guarantee 7. Technical Specification 8. Revisions to Manual Plinth 2000 Ltd is an ISO Audited company to ISO9001:2008 Our products are CE marked in conformity with the EC Directive MDD 93/42/EEC P a g e... -
Page 3: Introduction
504 Service Manual 1.Introduction Thank you for purchasing a product from Plinth 2000 Ltd. We use the highest quality components and manufacturing techniques to ensure that our products are simple to use and will last a long time. It is recommended that all our products are serviced annually whilst electrically operated products or those in high use should be serviced every 6 months. -
Page 4: Cleaning And Decontamination
504 Service Manual 2.Cleaning & Decontamination WARNING If contamination is suspected then decontaminate the couch before servicing. Torn or damaged upholstery should be replaced immediately. CAUTION Do not use Alkalis or other organic solvents for routine cleaning. Always cover the vinyl with paper towelling or couch covers if it can come into contact with bare skin. -
Page 5: Maintenance
Plinth products clean and regularly checked will assist in prolonging their working life. The following is a guide of simple checks that the user can carry out on a six monthly basis. We would also recommend an annual service visit by a Plinth 2000 trained engineer. -
Page 6: Service Checklist
504 Service Manual P a g e... -
Page 7: Troubleshooting
Adjustable foot Check presence, condition and adjustment of foot All motors will not work Power disconnected Connect power supply (504E only fitted with Fuse Blown Replace fuse in plug optional motor back or foot) Hand/ Footswitch Check the switch is fully... -
Page 8: Parts Lists And Diagrams
504 Service Manual 5.Parts lists and diagrams P a g e... -
Page 9: Exploded Diagram
504 Service Manual P a g e... -
Page 10: Base Drawing
504 Service Manual 10 | P a g e... -
Page 11: Top Drawing
504 Service Manual 11 | P a g e... -
Page 12: Lift Lever Drawing
504 Service Manual 12 | P a g e... -
Page 13: Link Lever Drawing
504 Service Manual 13 | P a g e... -
Page 14: Back-Rest Drawing
504 Service Manual 14 | P a g e... -
Page 15: Head-Rest Drawing
504 Service Manual 15 | P a g e... -
Page 16: Arm-Rest Drawing
504 Service Manual 16 | P a g e... -
Page 17: Guarantee
504 Service Manual 6. Guarantee and Service (UK only) Plinth 2000 Ltd offer a 5 year parts guarantee on all 500 Range products delivered from January 2013. The only exclusion to this guarantee is for negligent damage or damage to upholstery coverings. This guarantee does not require registration of the product as we can trace it from its serial number, however in the event of the serial number being removed, missing or unreadable then this may void the guarantee. -
Page 18: Technical Specification
504 Service Manual 7. Technical Specifications 504H 504E (1 motor) 504E (2 motor) 504E (3 motor) Head Length (cm) Seat Length (cm) Foot Length (cm) Width (cm) Overall Length (cm) Height Range (cm) 47-98 47-98 47-98 47-98 Max Working Load 250kg... -
Page 19: Revisions To Manual
Plinth 2000 Ltd Wetheringsett Manor Wetheringsett Stowmarket Suffolk IP14 5PP ENGLAND Plinth 2000 Ltd is an ISO Audited company to ISO9001:2008 Our products are CE marked in conformity with the EC Directive MDD 93/42/EEC 19 | P a g e...
